Copper-nickel sulfide ores represent a critical source of base metals, fueling industries from electronics to aerospace. These complex ores, primarily composed of minerals like pentlandite ((Fe,Ni)₉S₈), chalcopyrite (CuFeS₂), and pyrrhotite (Fe₇S₈), require sophisticated beneficiation methods due to their intergrown textures and varying compositions. This article explores copper-nickel sulfide ore, the beneficiation processing, and the copper-nickel sulfide ore flotation in achieving high-grade concentrates.
Introduction to Copper-Nickel Sulfide Ores
Copper-nickel sulfide ores are deposits primarily composed of nickel sulfides (e.g., pentlandite, millerite) and copper sulfides (e.g., chalcopyrite), often associated with cobalt, platinum group metals (PGMs), and iron minerals (e.g., pyrrhotite). These ores represent a crucial source of global nickel production, accounting for approximately 60% of the primary nickel supply.
Key Mineral Composition
- Nickel minerals: Pentlandite ((Fe,Ni)₉S₈), millerite (NiS)
- Copper minerals: Chalcopyrite (CuFeS₂), bornite (Cu₅FeS₄)
- Associated minerals: Pyrrhotite (Fe₁₋ₓS), magnetite (Fe₃O₄), PGMs (Pt, Pd), and cobalt minerals
Major Industrial Deposits
- Sudbury, Canada(one of the world’s largest Cu-Ni sulfide deposits)
- Norilsk, Russia(high-grade with abundant PGMs)
- Jinchuan, China(a typical Cu-Ni sulfide deposit)
- Bushveld Complex, South Africa(rich in nickel and PGMs)
Beneficiation Process for Copper-Nickel Sulfide Ores
The beneficiation process typically includes four key stages: crushing-grinding-flotation-concentrate treatment, tailored to ore grade and mineral dissemination characteristics.
1. Crushing & Grinding

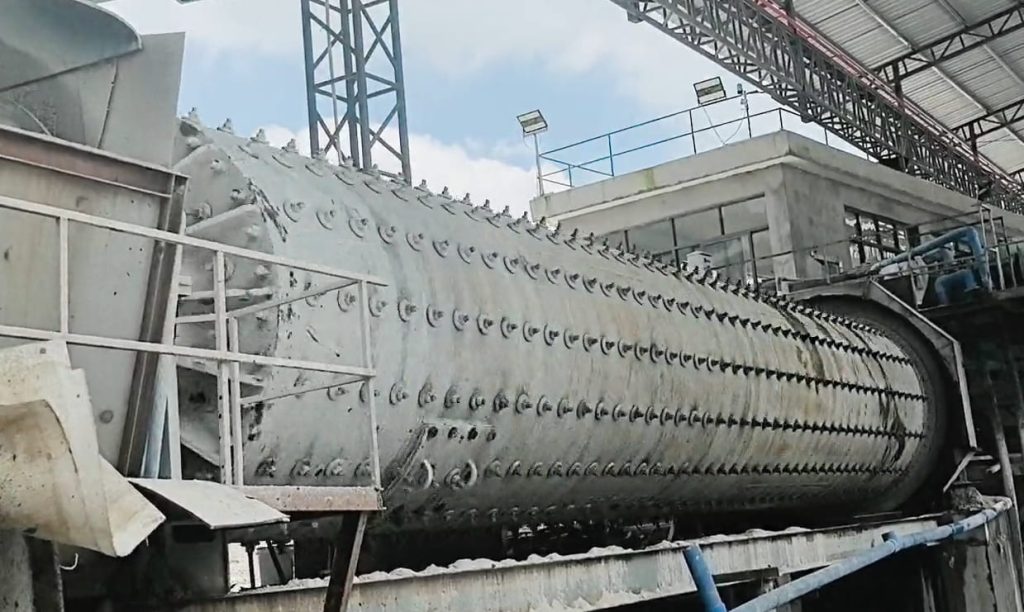

- Three-stage closed-circuit crushing: Primary (jaw crusher) → Secondary (cone crusher) → Tertiary (HPGR/ball mill)
- Grinding fineness: Usually controlled at 70-85% passing 200 mesh to liberate minerals
2. Flotation Separation (Core Process)
- Differential flotation: First recover copper, then nickel (for high-copper ores)
- Bulk flotation: Simultaneously recover Cu-Ni, then separate (for finely disseminated ores)
- Sequential flotation: Recover minerals based on floatability differences
3. Concentrate Treatment
- Pyrometallurgy(dominant): Electric furnace smelting (1250-1350°C) → Converter refining → Nickel matte (60-70% Ni+Cu)
- Hydrometallurgy(for low-grade ores): High-pressure acid leaching (HPAL), bioleaching
Flotation Methods for Copper-Nickel Sulfide Ores
Flotation is the primary method for beneficiating copper-nickel sulfide ores. Common process flows include sequential flotation, bulk flotation, flash flotation, isofroth flotation, and electrochemical-controlled flotation.
1. Sequential Flotation of Copper-Nickel Sulfide Ores
Sequential flotation is primarily applied to ores with high copper but low nickel content and simple mineralogical characteristics. It typically employs a “copper-first, nickel-suppressed” process, using nickel sulfide depressants and high-efficiency copper collectors to achieve separation. This method directly produces low-nickel copper concentrate and qualified nickel concentrate.
2. Bulk Flotation of Copper-Nickel Sulfide Ores
Bulk flotation is suitable for easily floatable copper-nickel ores containing magnesium silicate gangue minerals. The process first floats both copper and nickel minerals together to obtain a bulk copper-nickel concentrate. Subsequently, further flotation or smelting converts the bulk concentrate into copper-nickel matte. After regrinding and reagent removal, a nickel-suppression and copper-flotation technique separates copper concentrate from nickel concentrate.
3. Flash Flotation of Copper-Nickel Sulfide Ores
Flash flotation is ideal for unevenly disseminated copper-nickel ores. When conventional flotation fails to recover sufficient copper-nickel minerals efficiently, flash flotation pre-concentrates a portion of liberated or appropriately sized valuable minerals before standard flotation. This prevents overgrinding losses, enabling early-stage recovery, improving metal recovery rates, and reducing grinding circuit cycle loads (thereby lowering steel and energy consumption).
4. Isofroth Flotation of Copper-Nickel Sulfide Ores
Isofroth flotation, also called differential bulk flotation, is best suited for fine-grained, low-grade copper-nickel sulfide ores. Based on differences in mineral floatability, useful minerals are categorized into “easy-to-float” and “hard-to-float” fractions. The process follows a sequential selective flotation approach—first recovering easily floatable minerals, then processing harder-to-float fractions—to produce copper concentrate and nickel concentrate.
5. Electrochemical-Controlled Flotation of Copper-Nickel Sulfide Ores
Electrochemical-controlled flotation modifies pulp conditions chemically to adjust mineral floatability for selective separation. Three typical approaches include:
- Using oxidizing agents to regulate surface oxidation of copper-nickel sulfides during grinding/flotation.
- Adjusting pulp pH to control the electrochemical properties of sulfide surfaces, optimizing flotation conditions.
- Adding chemical regulators to prevent excessive oxidation of copper-nickel sulfides during intermediate flotation stages.
Limitations:
- Increased consumption of oxidizing/reducing agents may negatively impact subsequent flotation.
- Higher installation and maintenance costs compared to conventional methods.
Summary Table
Method | Key Application & Advantages |
Sequential Flotation | High-Cu, low-Ni ores; Cu/Ni separation via depressants & selective collectors. |
Bulk Flotation | Mg-silicate-rich ores; joint Cu-Ni recovery followed by matte processing & separation. |
Flash Flotation | Unevenly disseminated ores; pre-recovery reduces overgrinding & enhances efficiency. |
Isofroth Flotation | Fine low-grade ores; divides minerals by floatability (“easy” vs. “hard”) for staged recovery. |
Electrochemical Flot. | Chemical pulp modification for selective separation: higher operational costs. |
These methods are selected based on ore characteristics, liberation degree, and economic feasibility.
As the demand for nickel surges in batteries and stainless steel, optimizing copper-nickel sulfide flotation becomes even more critical. While traditional methods like bulk and sequential flotation dominate, emerging technologies—isofroth flotation, electrochemical controls, and AI-driven reagent dosing—are pushing recovery rates and sustainability to new heights.
Flotation Process for Copper-Nickel Sulfide Ores
Flotation is the core of sulfide ore beneficiation, with key factors affecting recovery and concentrate grade:
1. Reagent Scheme
Reagent Type | Example | Function |
Collector | Potassium ethyl xanthate, butyl xanthate | Selectively adsorbs on pentlandite/chalcopyrite |
Frother | MIBC (Methyl isobutyl carbinol) | Stabilizes froth layer |
Modifier | Lime (pH 9-10) | Depresses pyrrhotite, enhances selectivity |
Activator | Copper sulfate (CuSO₄) | Activates refractory nickel minerals (e.g., millerite) |
2. Flotation Circuit
- Rougher flotation: Rapid recovery of high-grade Cu-Ni minerals, reducing downstream load
- Scavenger flotation: Recovers remaining metals in tails to boost recovery
- Cleaner flotation: Improves concentrate grade (typically 2-3 stages)
3. Critical Control Parameters
- pH: 9-10 (alkaline to depress pyrrhotite)
- Grind size: Ensures full liberation of pentlandite
- Flotation time: ~20-30 min for bulk Cu-Ni flotation
4. Technical Challenges & Solutions
Issue | Solution |
Pyrrhotite interference | High alkalinity (lime) or selective collectors |
Poor Cu-Ni separation | Cyanide (chalcopyrite depressant) or sodium sulfide |
Low PGM recovery | Optimize grind size for better liberation |
Reinventing Copper-Nickel Sulfide Processing: The Path Forward
The beneficiation of copper-nickel sulfide ores stands at an exciting crossroads. While flotation remains the undisputed champion of separation technology – with differential and bulk flotation continuing to deliver results – the industry is undergoing transformative changes driven by sustainability demands and technological breakthroughs.
Key Innovations Reshaping the Sector
- Smart Mineral Processing: AI-driven flotation control systems now enable real-time optimization of reagent dosing, pH levels, and air flow – boosting recovery while slashing operational costs.
- Green Chemistry Revolution: Next-generation biodegradable collectors and depressants are replacing traditional reagents, reducing environmental footprints without compromising performance.
- Circular Resource Management: Water-stressed operations are adopting closed-loop systems with >95% water recycling rates, while advanced smelting techniques cut energy use by 30-40%.
- Convergence of Disciplines: Modern plants now integrate process mineralogy (MLA/QEMSCAN), machine learning, and hydrometallurgy to tackle complex ores previously deemed uneconomic.
The Road Ahead
The future belongs to hybrid processing models that combine:
- Selective bioleaching for refractory minerals
- Ultrafine flotation enhanced by nanoparticle collectors
- Direct electrowinning from enriched solutions
As ore grades continue declining, success will favor operations that leverage these advancements while maintaining the three pillars of modern mining: efficiency, adaptability, and environmental stewardship.
Want to future-proof your copper-nickel operation? The time to pilot these technologies is now.
