Small Scale Gold Mining Equipment

JXSC has mini and economy gold mining equipment for sale and specialises in the supply of Mining Equipment to the small scale Mining industry. Our range of equipment encompasses the entire requirement that a small scale mine will require. Our equipment is best used in small-scale extractive metallurgy operations operated by small miners or hobbyist prospectors and mining fanatics. We supply gold mining equipment as well as processing equipment applicable to most base metals such as copper, lead, zinc, etc.,

  1. Mobile Gold Washing Plant
    Mobile Rotary Scrubber
    Mobile Trommel Screen
  2. Small Scale Hard Rock Gold Process Plant
    3 TPH Rock Gold Process Plant
    2 TPH Rock Gold Process Plant

  3. Small Scale Modular Processing Plants
    Mobile Jig Separator + Trommel Screen
    Centrifugal Concentrator + Shaking Table

  1. Small Mobile Crushers
    Mobile hammer crusher
    Mobile Jaw Crusher
  2. Other Small Mining Equipment
    Small Ball Mill
    Lab Shaker Table

    Mobile Jig Separator
    Gold Centrifugal Concentrator

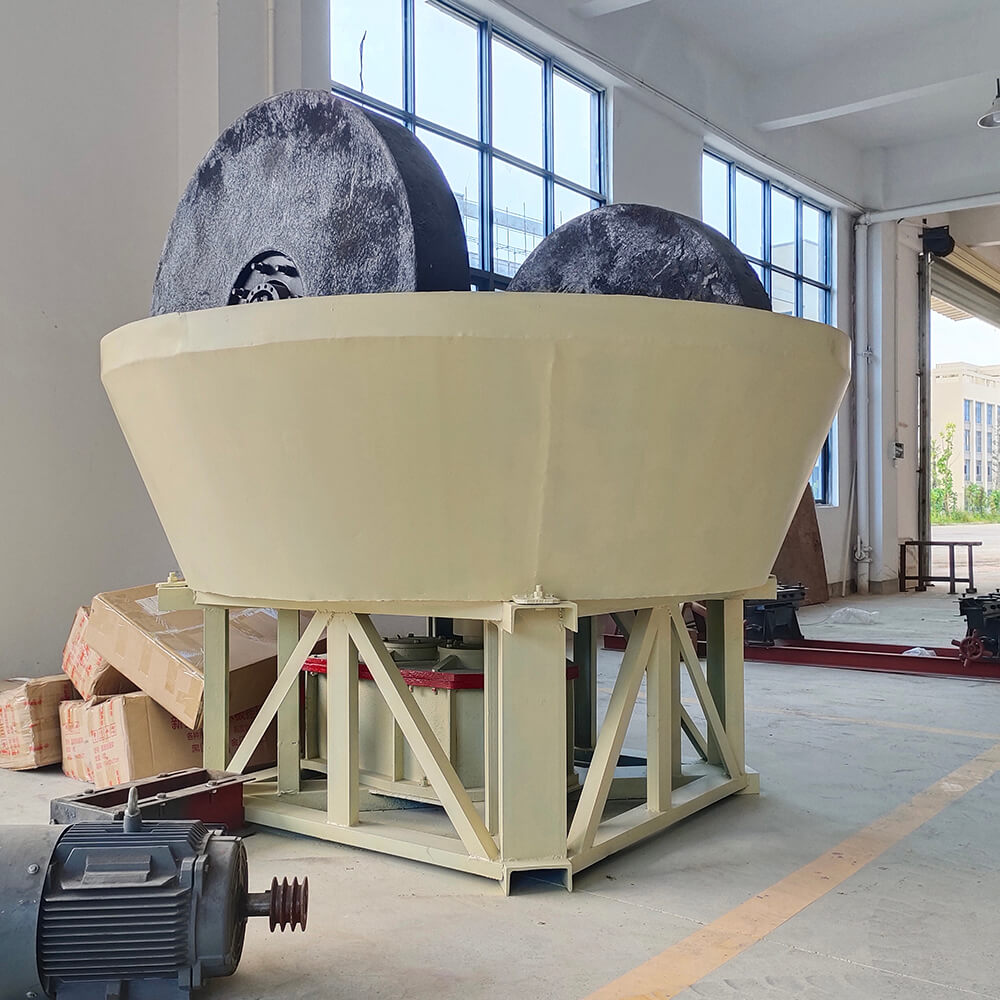

    Wet Pan Mill
    Sluice Box
    And so on.

Small Scale Gold Process Plants for Sale

In a large number of small-scale gold mines, there are many common situations or difficulties, such as inconvenient transportation, lack of water resources, and so on. For the demand for small-scale gold mining and processing, JXSC designed and manufactured a small modular gold concentrator to recover gold from rocks, quartz veins, alluvial ores, or tailings through gravity separation, flotation, cyanidation, or combined processing. We provide customers with excellent solutions, advanced technology, complete functions, reliable and safe equipment, compact structure, unconditional installation location, low-cost investment, and simple construction so that the modular processing plant has become a shining star of flexible, fast, and efficient gold recovery, which is favored by our customers. The following is our popular small scale gold process plants.

We have rich experience in beneficiation design and equipment manufacturing, if you need such services, please contact us!

Mobile Gold Washing Plant

The portable gold washing plant integrates ore mining and gold mineral processing operation, includes the excavation system, mineral processing equipment, water supply system, tailings treatment system, power supply, etc.
mobile trommel scrubber
Mobile Rotary Scrubber

Mobile Washing Plant For Sale

Main Equipment:  Rotary scrubber/ trommel screen, sluice box, concentration table, slurry pumps.

mobile trommel screen
Mobile Trommel Screen

Advantages of The Gold Washing Plants

  1. High efficiency and high performance
  2. Easy to move and install
  3. Easy and convenient operation
  4. Strong body


  1.  Alluvial/placer gold ore processing
  2. Small gold processing plant for river dirt gold with clay.

This mobile gold washing plant normally works together with a sluice box, gold centrifugal concentrator, and shaking table to form a complete concentration plant. It is an excellent plant for small-scale miners.

Small Scale Hard Rock Gold Process Plant

3 TPH Rock Gold Process Plant

Main Equipment: Jaw crusher, double roll crusher, wet pan mill, shaking table

Flowchart explanation for 3tph rock gold processing plant

  1. Loader or excavator feeds raw ore into the hopper, then through chute feeder to evenly feed jaw crusher.
  2. Jaw crusher crushing big rocks to small size 40-60mm
  3. Output of jaw crusher go to double roll crusher via belt conveyor.
  4.  Double roll crusher crushing 40-60mm small rocks to smaller size 0-6mm.
  5. Output of double roll crusher go to hopper before wet pan mill, electromagnetic vibrating feeder is installed under the hopper to evenly feed wet pan mill.
  6. Wet pan mill grinding 0-6mm ore to powder size 0-1mm.
  7. Powder 0-1mm go to shaking table for recovering gold concentrates.
  8. All gold concentrates are sent to gold smelting furnace to increase gold purity.

2 TPH Rock Gold Process Plant

Main Equipment: Ball mill, gold centrifugal concentrator, shaking table

Flowchart explanation for 2tph rock gold processing plant
This is a 2 TPH rock gold processing plant site from an Egyptian customer, it’s configured with a ball mill, gold centrifugal concentrator, and shaking table. Ore in transit bin is sent to ball mill via vibrating feeder and belt conveyor, then grind the ore to powder size. Particles discharged from the ball mill goes to will be sent to the centrifugal concentrator, then the concentrates are sent to the shaking table for fine concentrating gold. The shaking table is gravity to recovery gold, very friendly to the environment. it can be used for hard rock Tin ore, Coltan ore, Tungsten Ore, Chrome, etc.

Small Scale Modular Processing Plants

Mobile Jig Separator + Trommel Screen

Capacity: 1-20 TPH
Process Material: Gold, diamonds, gemstones, and other heavy materials.

Introduction: This mobile jig concentrator is very popular in small-scale gold, diamond, and coltan processing plants. The trommel screen sieves out big waste stone firstly, and then the under-sieve material goes to the jig concentrator for gravity separation. The heavy mineral would be collected at the final.

This small-scale mining plant is fit for the raw ore with little sticky clay. If there is much sticky clay, use the trommel scrubber instead the trommel screen.

The mobile jig separator + trommel screen plant is equipped with wheels, so it’s completely portable and can be quickly installed and removed. We also supply a fixed-type processing plant.

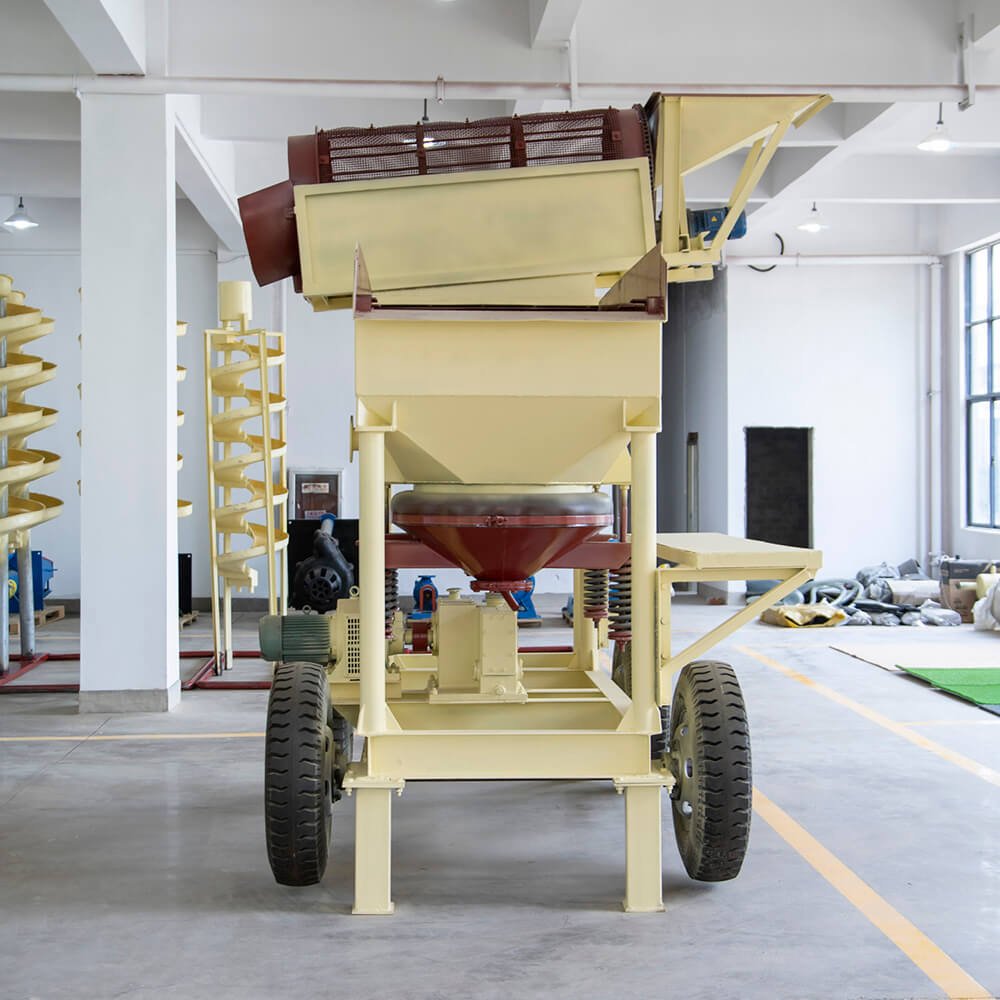

Mobile jig+trommel

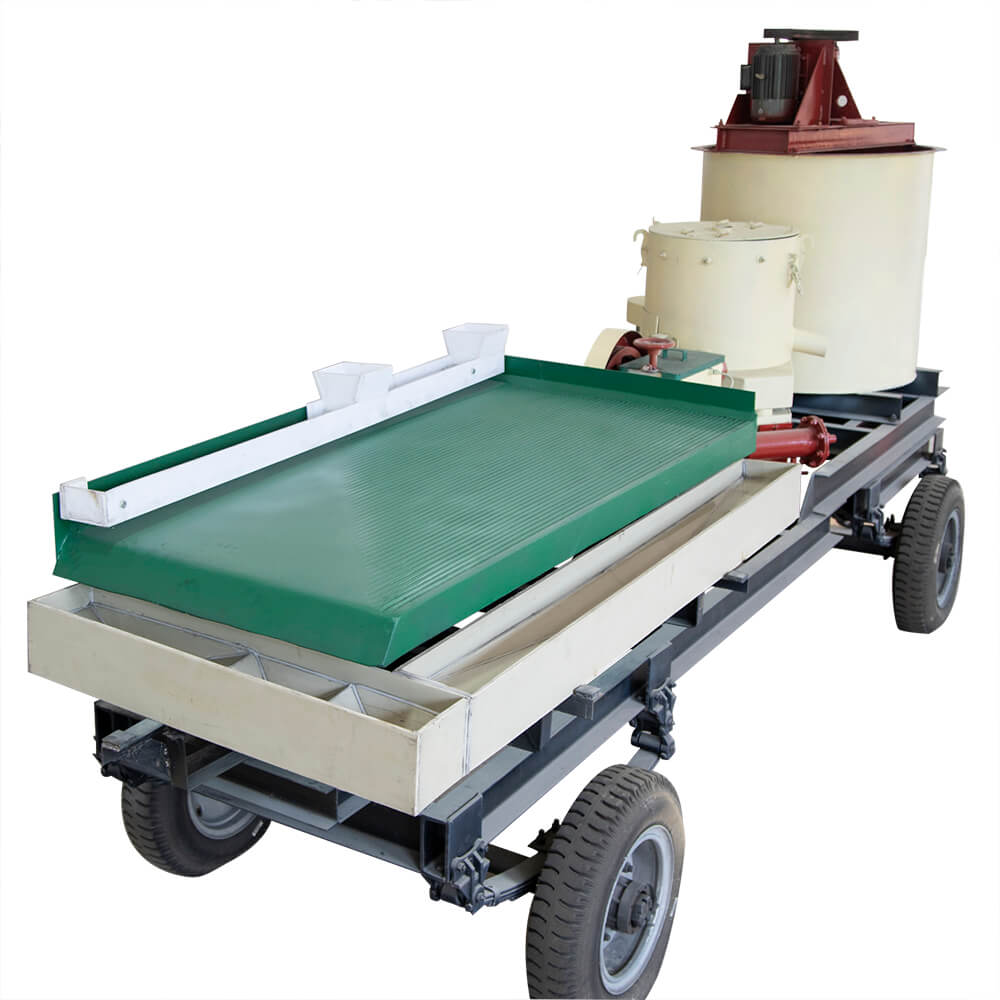

Centrifugal Concentrator + Shaking Table

Capacity: 0-50 TPH
Max Feeding Size: 0-2mm

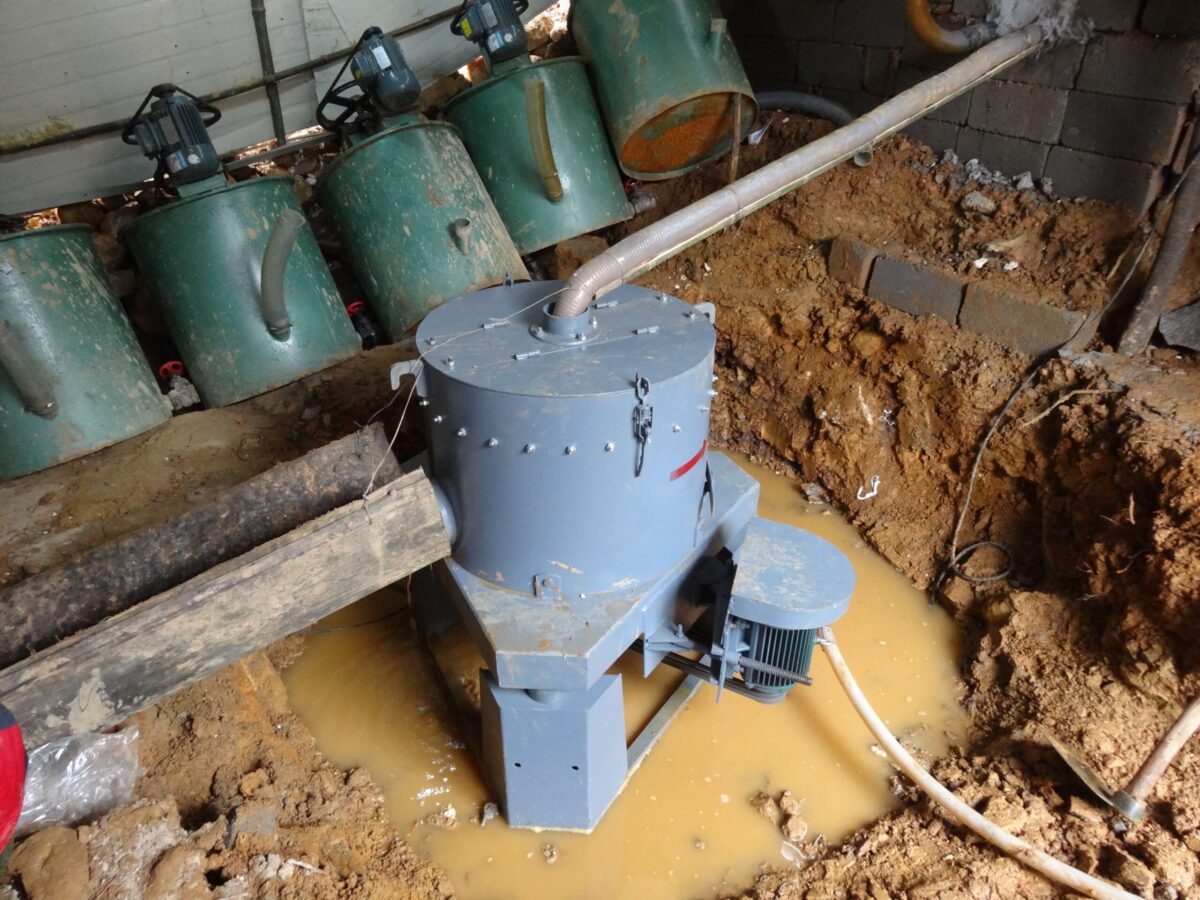

Gold Centrifugal Concentrator

Knelson type Gold Concentrator is a new type of gravity concentration equipment for gold separating and other high-density minerals.  Our Gold Centrifuge is efficient for recovering free gold in all particle size ranges, especially for the recovery of fine gold which is lost during the operation of the gravitational concentrators (sluice boxes and jigs). It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation, and recover gold from the tailings. We have fully-automatic (Knelson Continuous Variable- Discharge, CVD type) and semi-continuous (Batch type) centrifugal gold concentrators.

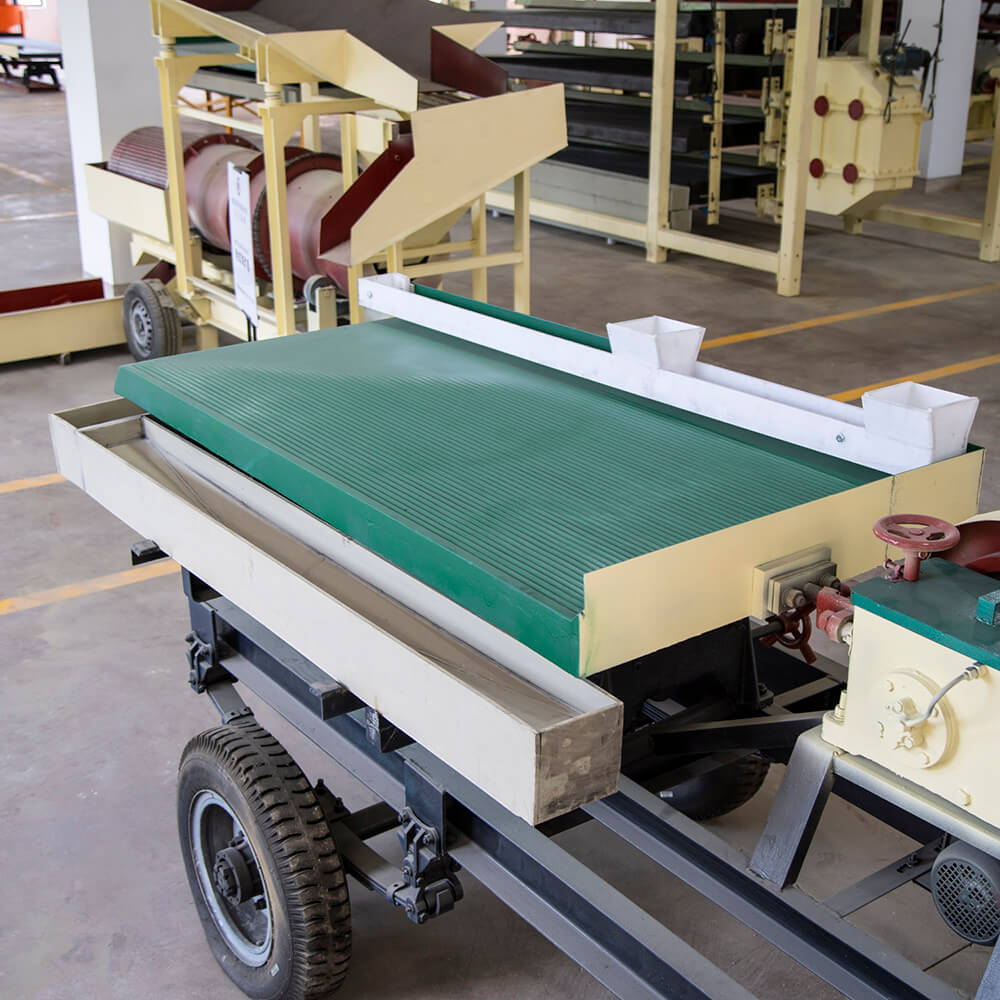

6S New Shaking Table
The shaker table is a gravity separation equipment used to separate fine-grained materials.  It’s with PP material feeding chute and discharge chute.  And it’s with big and higher channel frame to make it stronger. The 6S shaker table is a safe operation and the table desk color is as per customer request.

Small Mining Equipment

small crusher
small crusher

Small Mobile Crushers


  • Small Mobile Jaw Crusher(Diesel/Electrical energy, Crushing, Crushing & Screening)
  • Small Mobile Hammer Crusher

Capacity: Customized on demand

small crusher
small crusher

Other Small Mining Equipment

Mobile jig+trommel
Mobile Jig Separator

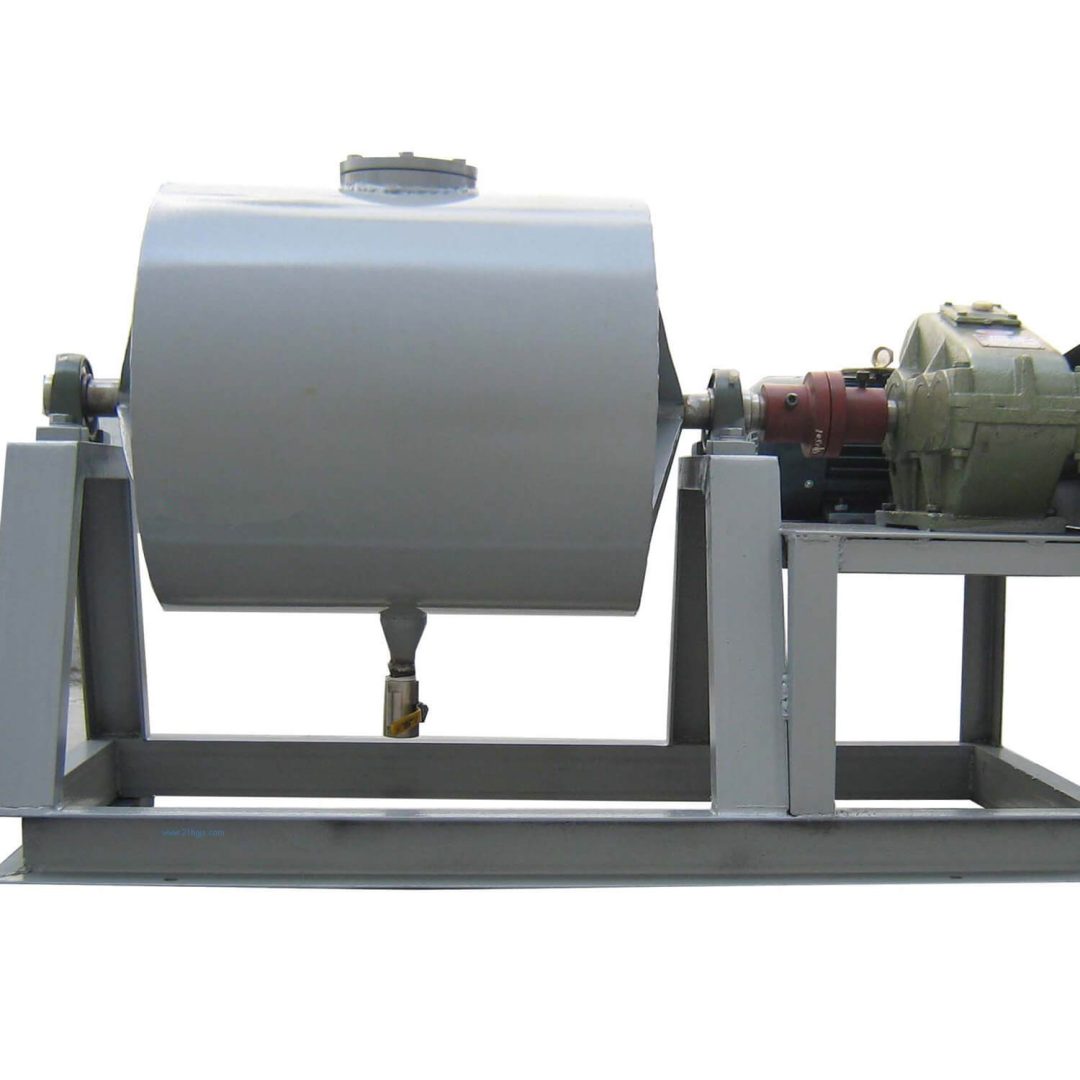

small ball mill
Small Ball Mill
