Volcanic Rock Crushing & Screening Process
The volcanic rock crushing and screening process involves primary crushing (via jaw or gyratory crushers) to reduce large raw blocks, secondary crushing (using cone or impact crushers) for intermediate sizing, and vibrating screening with adjustable mesh decks to classify materials into required aggregate fractions. Oversized particles are recirculated for further crushing in a closed-circuit system, while qualified products are stockpiled via conveyors. For specialized fine aggregates, a VSI sand maker is integrated for particle shaping, producing cubical, high-quality sand ideal for concrete and mortar applications. Optional dust suppression, iron removal, and washing systems enhance product purity while minimizing environmental impact through water recycling and sedimentation.
Volcanic Rock Crushing and Screening
Introduction

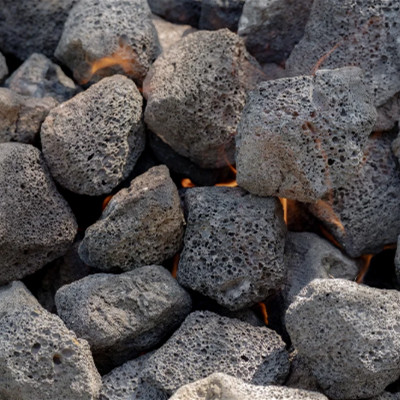

About Volcanic Rock
Volcanic rock, also known as extrusive igneous rock, forms when molten magma erupts from a volcano, cools rapidly on the Earth’s surface, and solidifies. This quick cooling results in fine-grained or glassy textures, distinguishing it from intrusive igneous rocks (like granite), which cool slowly underground.
Formation
- Produced by volcanic eruptions (lava flows, ash, or pyroclastic material).
- Rapid cooling prevents large crystal growth, leading to fine-grained or porous textures.
Types of Volcanic Rock
- Basalt– The most common volcanic rock, dark-colored with fine grains; forms oceanic crust and shield volcanoes (e.g., Hawaiian Islands).
- Andesite– Intermediate in composition (between basalt and rhyolite), grayish, often found at subduction zones.
- Rhyolite– Light-colored, silica-rich; forms in explosive eruptions (e.g., Yellowstone’s volcanic deposits).
- Obsidian– Volcanic glass formed from ultra-fast cooling; used historically for tools and jewelry.
- Pumice– Highly porous, lightweight; floats on water due to trapped gas bubbles.
- Scoria– Dark, vesicular rock, similar to basalt but with larger gas cavities.
Properties
- Texture: Often porous (vesicular) or glassy (e.g., obsidian).
- Hardness: Varies; basalt is very hard, while pumice is soft and brittle.
- Uses: Construction (as aggregate), landscaping, abrasives (pumice), and filtration.
Mineral Processing
Volcanic Rock Crushing and Screening Process
Volcanic rock (e.g., basalt, andesite, scoria) is durable and often used in construction, road base, and landscaping. The crushing and screening process helps produce various aggregate sizes for different applications.
1. Primary Crushing (Coarse Reduction)
Equipment:
- Jaw Crusher(for large, raw volcanic blocks)
- Gyratory Crusher(for high-capacity primary crushing)
Process:
- Volcanic rock is blasted from quarries and dumped into a feeder.
- Primary crushers reduce large chunks (500–1,500 mm) into smaller pieces (150–300 mm).
Output: Crushed rock (~100–300 mm) is sent to secondary crushing.
2. Secondary Crushing (Intermediate Sizing)
Equipment:
- Cone Crusher(ideal for hard, abrasive rock like basalt)
- Impact Crusher(softer rocks like scoria or vesicular basalt)
Process:
- Further reduces material to 20–100 mm for concrete or road base.
- Adjustable settings control output size.
Output: Uniformly sized aggregate (e.g., 20–40 mm).
5. Optional: Washing (For Clean Aggregates)
- Log Washers or Sand Screws remove clay, dust, and impurities.
- Needed for high-grade concrete and architectural uses.
3. Tertiary Crushing (Fine Crushing for Special Applications)
Equipment:
- Vertical Shaft Impact (VSI) Crusher(for high-quality sand and fine aggregates)
Process:
- Produces finely crushed volcanic sand (0–5 mm) or manufactured sand (M-sand).
- Helps in concrete mixing and asphalt production.
Output: Fine aggregates (≤5 mm).
4. Screening (Size Separation)
Equipment:
- Vibrating Screens(multiple decks for different sieve sizes)
Process:
- Separates crushed rock into specific sizes using mesh screens (e.g., 0–5 mm, 5–20 mm, 20–40 mm).
- Oversized material is recycled back into crushers.
Final Products:
- Coarse aggregate (for road bases, concrete)
- Fine aggregate (for plastering, asphalt)
- Crusher dust (for compaction and filler)

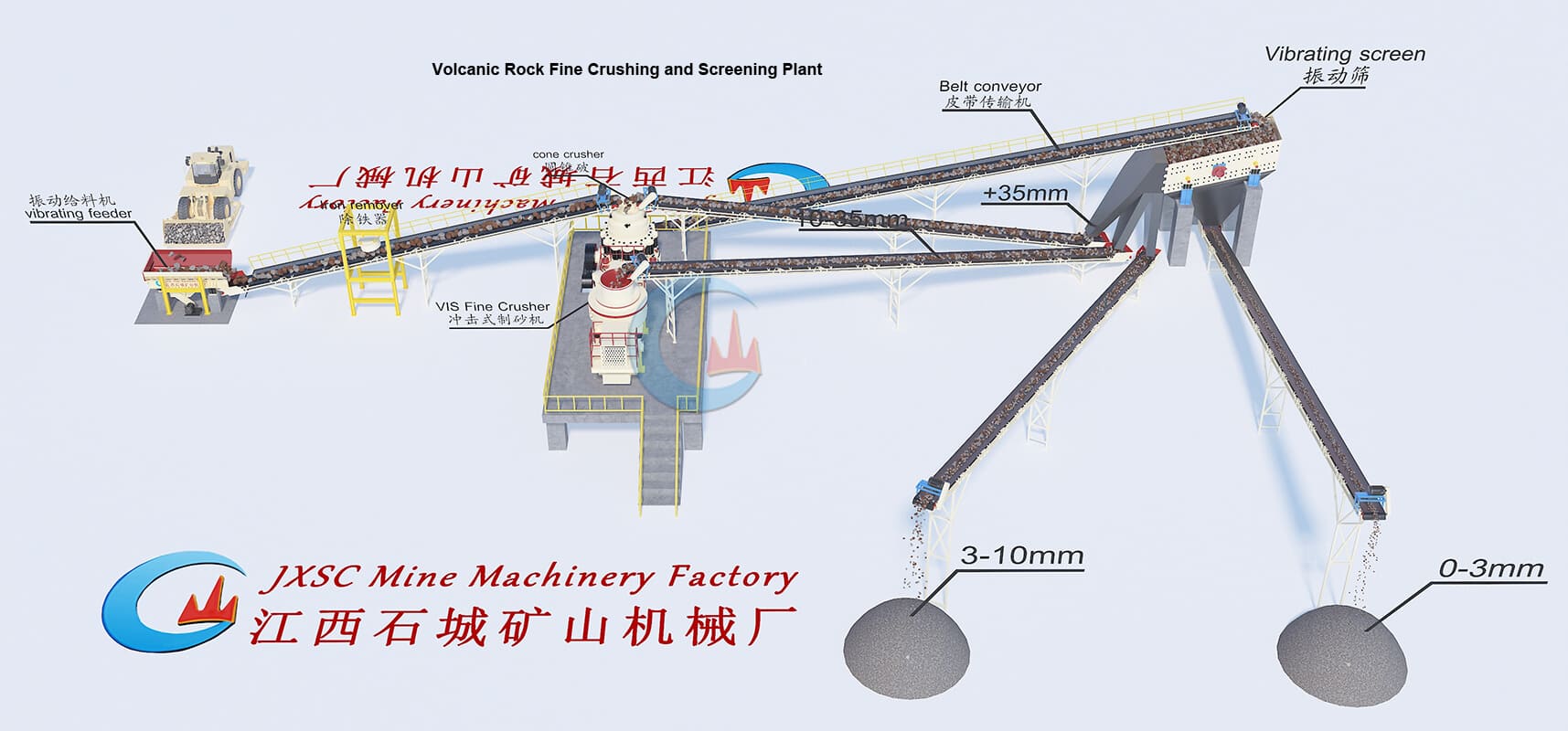

100 TPH Volcanic Rock Fine Crushing & Screening Plant
This 100 TPH volcanic rock fine crushing and screening plant is specifically engineered for processing volcanic rock, with adaptability for other hard materials including granite, river stone, basalt, and andesite. The production line integrates a vibrating feeder, cone crusher, vibrating screen, VSI fine crusher, and belt conveyors to achieve continuous feeding, efficient size reduction, and accurate product classification.
By adopting a closed-circuit crushing and screening process, oversized materials can be returned to the fine crushing stage for further reduction. The system helps maintain stable production, improve screening efficiency, and reduce unnecessary material circulation.
The final plant configuration can be customized according to the raw material characteristics, maximum feed size, required product specifications, site conditions, and customer budget. The final product sizes of this 100 TPH volcanic rock fine crushing and screening plant are 0-3 mm and 3-10 mm.
100 TPH Volcanic Rock Fine Crushing & Screening Plant Flowsheet Explanation
1. Material Feeding System
- Raw volcanic rock (≤180 mm) is loaded into the feed hopper via wheel loader/dump truck
- Vibrating feeder with 180 mm grizzly bars ensures uniform feeding while rejecting oversize material
- Integrated iron remover protects downstream equipment from metal contaminants
2. Primary Crushing Stage
- Cone crusher reduces material to ≤35 mm (recommended secondary crusher for capacities >50 TPH)
- Optimized crushing chamber geometry handles volcanic rock’s abrasiveness
- Belt conveyor transfers crushed material to screening station
3. Precision Screening System
- Triple-deck vibrating screen (3 mm/10 mm/35 mm mesh sizes) classifies materials:
- +35 mm: Returned to cone crusher (closed-circuit operation)
- 10-35 mm: Fed to VSI crusher for shaping
- 3-10 mm: Directly conveyed to product stockpile
- 0-3 mm: Sent to separate sand stockpile
- Triple-deck vibrating screen (3 mm/10 mm/35 mm mesh sizes) classifies materials:
4. Fine Crushing & Shaping
- VSI crusher processes 10-35 mm material to optimal particle shape
- Cubical product output ensures premium quality for concrete/construction applications
5. Product Handling & Customization
- Segregated stockpiles prevent material cross-contamination
- Screen mesh sizes adjustable for different product specifications (e.g., 0-5 mm/5-15 mm)
- Scalable design allows capacity modifications (30-300 TPH)
Key Equipment Configuration
- Vibrating feeder with grizzly bars
- Cone crusher (secondary crushing)
- VSI fine crusher (tertiary shaping)
- Triple-deck vibrating screen
- Belt conveyors with magnetic separator
- Dual product stockpiling system
Technical Advantages
- Closed-loop design maximizes efficiency (recycles oversize material)
- VSI stage creates high-value shaped aggregates
- Modular configuration adapts to various hard rock types
- Iron removal system extends equipment lifespan
This turnkey solution combines robust crushing performance with precise particle control, delivering specification-grade aggregates for demanding construction applications. The plant layout and operational parameters can be further optimized based on specific material characteristics and site requirements.
