Rock Drills
Reliable rock drilling solutions for mining & quarrying.
- High drilling efficiency
- Durable for tough mining conditions
- Solutions for different rock types & applications
QUICK SPECIFICATIONS
Drill Type
Pneumatic / Gasoline / Leg-supported / Electric
Drilling Diameter
34 – 45 mm
Impact Frequency
23 – 47 Hz
Rock Handness
f = 8 – 18 (Protodyakonov)
ROCK DRILL TYPES & MODELS
Choose the right rock drill for your project based on power source, drilling requirements, and working conditions. Explore our range of rock drills designed for mining, quarrying, construction, and rock excavation.
Gasoline Rock Drills
Powered by gasoline engines, these rock drills offer excellent mobility and independence from external power sources. They suit for remote locations, outdoor construction, quarrying, and field operations where portability and flexibility are essential.
Hydraulic Rock Drills
Designed for demanding drilling operations, hydraulic rock drills deliver high impact energy, efficient rock penetration, and reliable performance. Ideal for large-scale mining, quarrying, and tunneling projects that require high productivity and consistent drilling results.
Pneumatic Rock Drills
Using compressed air to generate powerful percussive action, pneumatic rock drills provide robust performance and dependable operation in tough working environments. Commonly used in underground mining, quarrying, and construction, they are valued for their durability and straightforward maintenance.

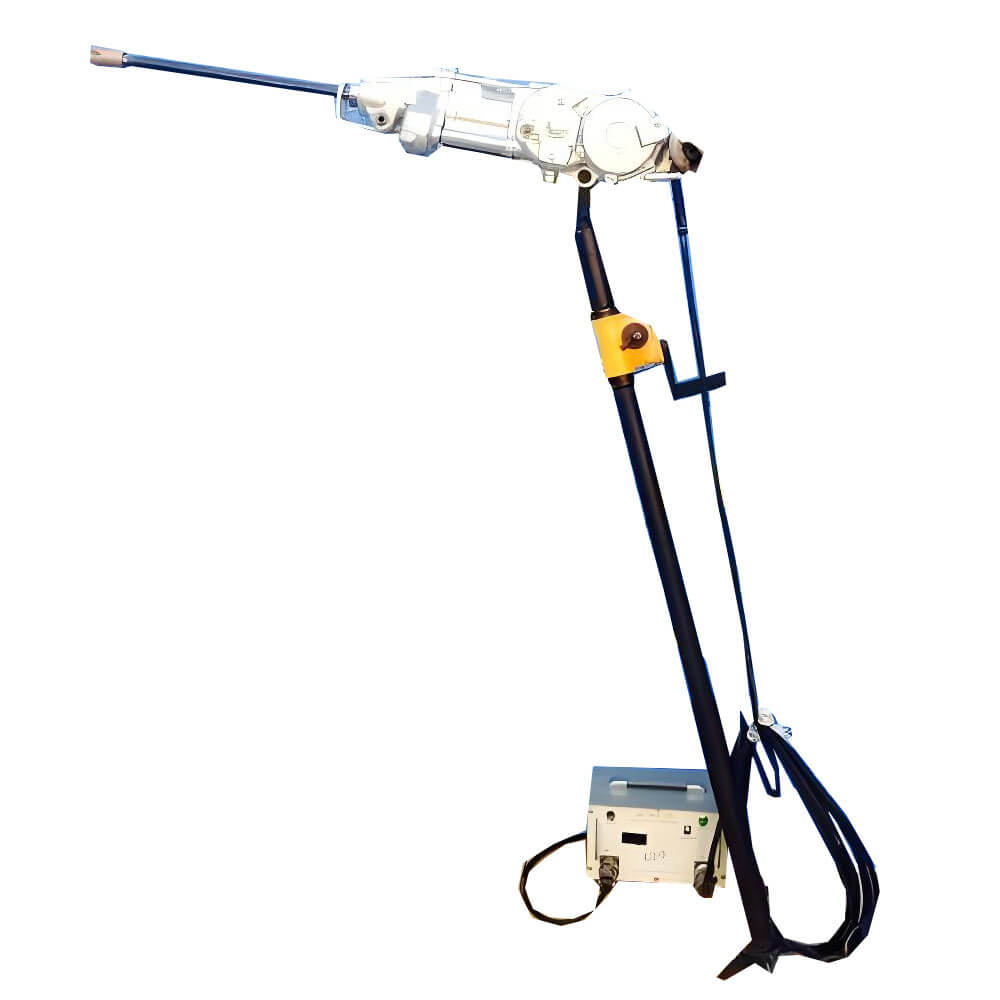

Electric Rock Drills
Electric rock drills provide stable power delivery and convenient operation for drilling tasks where a reliable electricity supply is available. They are suitable for construction, quarrying, and selected mining applications, offering efficient performance with no direct exhaust emissions at the point of use.
Handheld Rock Drills
Compact and easy to maneuver, handheld rock drills are designed for small-scale drilling, confined spaces, and jobs that require precise positioning. Their portable design makes them a practical choice for maintenance, secondary breaking, small quarries, and general rock drilling work.
Pneumatic rock drills, hand-held rock drills, gasoline rock drills, electric rock drills, and upward (stoper) drills — compare the core models below.
| Model | Power Source | Drilling Diameter | Weight | Key Specifications | Recommended Application |
| YT28 | Pneumatic | 34–45 mm | 26 kg | Air 0.4–0.63 MPa · ≥37 Hz | Underground drifting, blast holes |

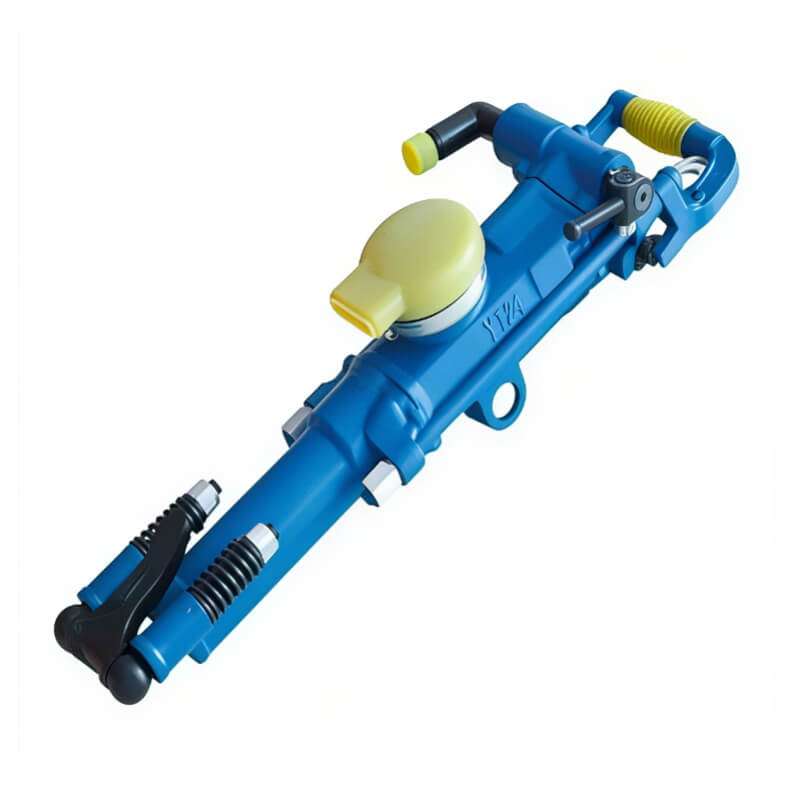

| YT24 | Pneumatic | 34–42 mm | 24 kg | Air 0.4–0.63 MPa · ≥31 Hz | Small tunnels, medium-hard rock |

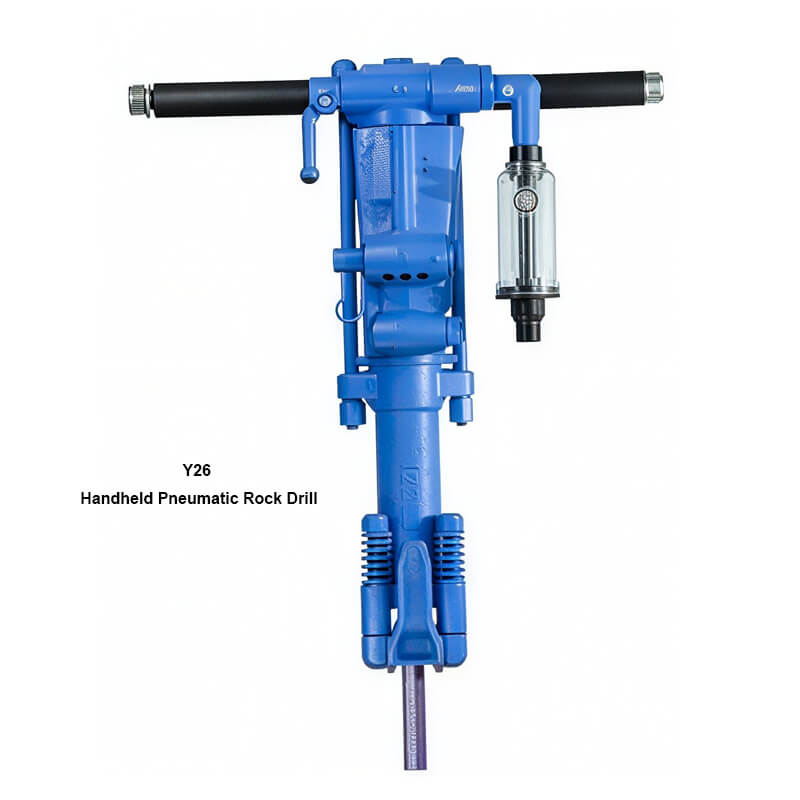

| Y26 | Pneumatic (hand-held) | 34–42 mm | 26 kg | Air 0.4 MPa · ≥23 Hz | Quarry, secondary breaking |

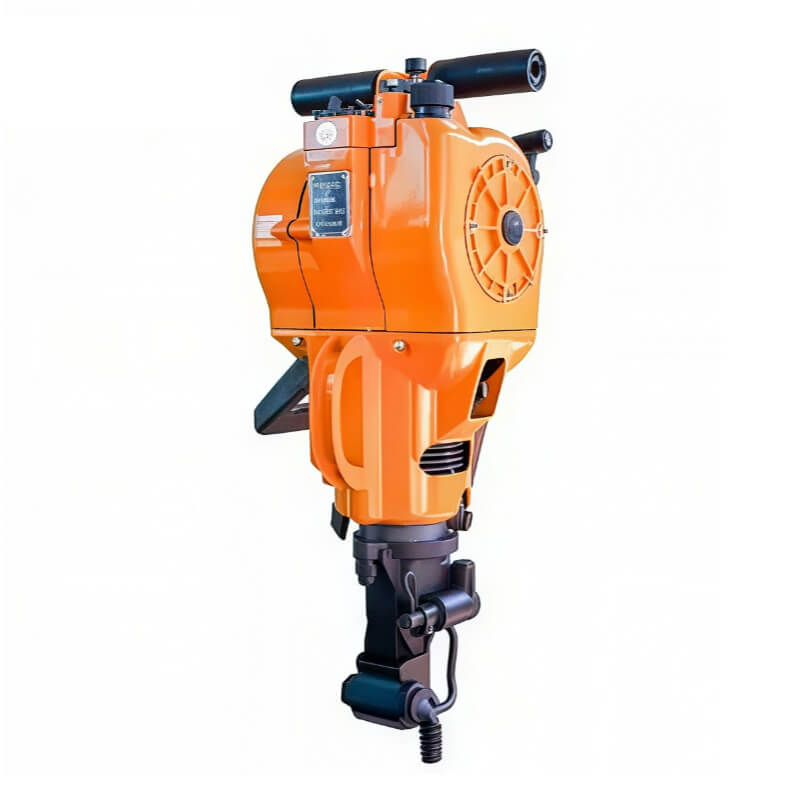

| YN27C | Gasoline (internal combustion) | 34–42 mm | 27 kg | Petrol engine · no compressor | Remote sites without air supply |
| YSP45 | Pneumatic (upward) | 35–42 mm | 44 kg | Air 0.5–0.63 MPa · ≥47 Hz | Raise & roof bolting holes |
| YDT30 | Electric | 35–38 mm | 30 kg | 380 V · 50 Hz | Blast & anchor hole, tunneling, quarrying |

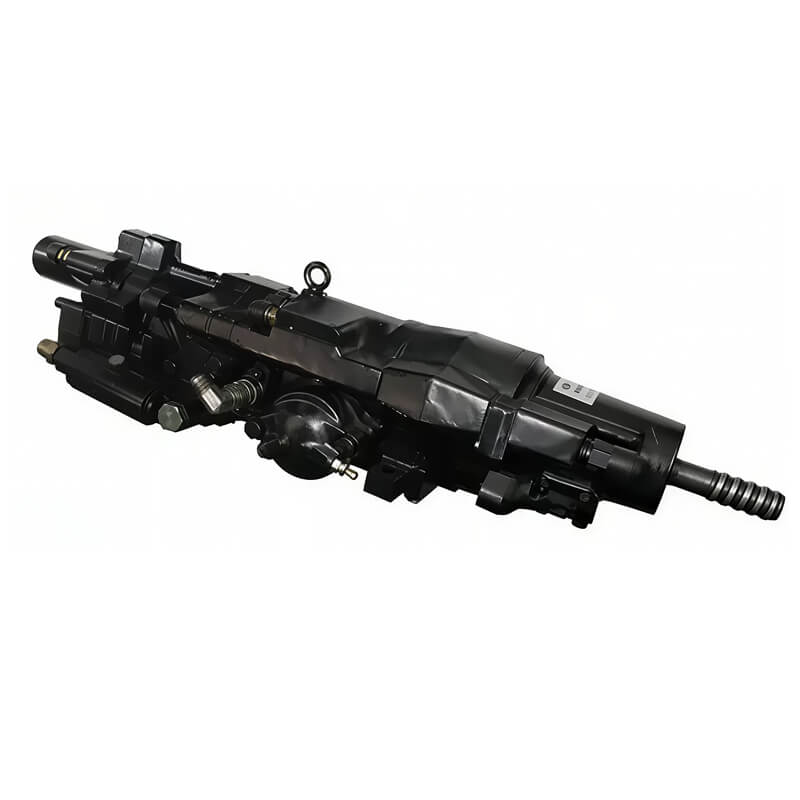

| GL18T | Hydraulic | 33-76 mm | 184 kg | Hydraulic oil · 45-60 Hz | Blast hole, tunneling & mine |
ROCK DRILLS APPLICATIONS & WORKING CONDITIONS
Drifting, stoping and blast-hole drilling in confined headings with leg-supported pneumatic drills.
Bench drilling, boulder breaking and dimension-stone splitting on surface sites.
Road, rail and hydropower tunnel faces, plus slope and foundation works.
Consistent, straight blast holes for controlled fragmentation and lower explosive cost.
RECOMMENDED SOLUTIONS BY ROCK TYPE
f 12–18
Granite, quartzite, basalt. Choose higher-frequency leg drills (YT28 / YSP45) with carbide button bits.
f 8–12
Limestone, sandstone, ore bodies. YT24 / Y26 balance speed, weight and air consumption.
Custom
No compressed air, high altitude, wet holes or upward drilling — our engineers match the configuration.
ROCK DRILLS TECHNICAL SPECIFICATIONS
Power and air requirements, drilling performance, compatible bits and operating environment.
Piston Diameter
65 – 80 mm
Piston Stroke
60 – 70 mm
Working Air Pressure
0.4 – 0.63 MPa
Air Consumption
≤ 81 L/s
Water Pressure
0.2 – 0.3 MPa
Drilling Depth
up to 6 m
Drilling Speed
≥ 300 mm/min (f = 12)
Shank Size
H22 × 108 mm
Compatible Bits
Chisel, cross & button bits Ø34–45 mm
Accessories
Air-leg FT140/160, lubricator, hoses, drill rods
Operating Temp.
-20 °C to +45 °C
Environment
Wet drilling is recommended underground
WHY CHOOSE JXSC ROCK DRILLS?
1985
Four decades of designing and manufacturing mining equipment.
∞
Equipment solutions for abrasive, hard and wet rock environments.
1:1
Engineers review your rock, hole size and site before recommending.
24/7
Wear parts, rebuild kits and technical support after delivery.
60+
International project experience across mining regions worldwide.
CUSTOMIZATION & PURCHASING OPTIONS FOR ROCK DRILLS
Model & Configuration
Select drill type, air-leg, lubricator and hose package for your site.
Accessories & Spare Parts
Drill rods, bits, pistons, valves and seal kits supplied together.
OEM / Bulk Orders
Distributor and bulk pricing available on request, subject to model.
Shipping & Installation
Export packing, sea/air freight and on-site commissioning guidance.
NEED A PACKAGE FOR YOUR PROJECT?
FREQUENTLY ASKED QUESTIONS
How do I choose the right rock drill?
Start from rock hardness, required hole diameter and depth, drilling direction, and available power (compressed air or not). Send these to our engineers for a model recommendation.
Which rock drill is suitable for my rock type?
For hard rock (f 12–18) we generally recommend high-frequency leg drills; for medium-hard rock, lighter models offer better efficiency. Final selection depends on your site conditions.
What are the required air pressure or power specifications?
Pneumatic models typically operate at 0.4–0.63 MPa with a matching compressor capacity. Gasoline models need no air supply. Exact figures are confirmed per model datasheet.
Which drill bits and spare parts are compatible?
Most models use H22 × 108 mm shanks with chisel, cross or button bits Ø34–45 mm. We supply matching rods, bits and wear parts.
What is the expected service life?
Service life varies with rock abrasiveness, maintenance and lubrication. We provide guidance per model once verified for your application.
What are the delivery time and warranty terms?
Delivery time and warranty depend on model, quantity and destination. They are confirmed in your project-specific quotation.
Tell us about your rock and site. An engineer will reply with a model recommendation and a customized quote.
