Choosing the wrong beneficiation process can waste resources and reduce copper recovery rates. Different copper ores require different approaches. Let me show you how to match the right process to your ore type.
Copper ore beneficiation processes vary by ore type. Sulfide ores use flotation, oxide ores need leaching, while mixed ores combine both methods. The key is accurate ore characterization first. Proper process selection boosts recovery rates by 10-30% and improves concentrate quality.
Now let’s break down the specific methods for each ore type. These proven approaches come from decades of field experience in copper processing plants worldwide.
Copper Sulfide Ore Beneficiation
Why is Flotation The Best Choice For Copper Sulfide Ore?
Ever wonder why most copper mines use flotation? Sulfide ores respond perfectly to this century-old method, but modern refinements make it even better.
Copper sulfide ores primarily use froth flotation because sulfide minerals naturally repel water. The process crushes ore to liberate minerals, adds collectors to make copper hydrophobic, and then separates copper-bearing froth from waste. Typical recovery reaches 85-95% for chalcopyrite ores.
The Most Widely Applied “Classic Process” For Copper Sulfide Beneficiation
Copper sulfide ores (including chalcopyrite, bornite, etc.) are the primary processing targets in modern beneficiation plants. The core process revolves around “crushing – grinding – flotation”:
Crushing Stage: Employing a “three-stage closed-circuit” configuration—jaw crushers for primary crushing, cone crushers for secondary crushing, followed by a closed-circuit fine crushing circuit using a short-head cone crusher + vibrating screen. This reduces ore particle size to 12-15mm, alleviating the burden on subsequent grinding.
Grinding Stage: Employing “single-stage/two-stage closed-circuit grinding” (ball mills paired with spiral classifiers or hydrocyclones), grinding ore to achieve 65%-85% passing -200 mesh to ensure thorough liberation of copper minerals;
Flotation Stage: Typically employs a “one roughing, two cleaning, two scavenging” or “one roughing, three cleaning, three scavenging” process. Adds butyl xanthate (collector) and No. 2 oil (foaming agent). For complex ores, lime is added to adjust pH and suppress gangue minerals. Ultimately produces copper concentrate with grades of 18%-28%, achieving recovery rates of 85%-95%.
Key parameters to monitor in the process
- pH 9-11 (using lime)
- Particle size distribution
- Reagent dosage accuracy in modern plants add column flotation cells for cleaner concentrates. Some operations use bulk flotation first when copper associates with other valuable metals.
Copper Oxide Ore Beneficiation
Can Leaching Replace Flotation For Copper Oxide Ore Beneficiation?
Flotation fails for oxide ores. The solution? Leaching. But not all leaching methods work equally well.
Copper oxide ores require leaching because oxide minerals don’t respond to flotation collectors. Heap leaching (for low-grade) and agitation leaching (for high-grade) dissolve copper using sulfuric acid. Subsequent solvent extraction and electrowinning produce 99.99% pure copper. Recovery ranges 60-85% depending on mineralogy.
Oxide ore processing options comparison
- Leaching Methods
| Method | Ore Grade | Recovery Rate | Cost |
| Heap Leaching | 0.2-0.8% Cu | 60-75% | Low |
| Agitation Leaching | 0.8-2% Cu | 75-85% | Medium |
| In-situ Leaching | <0.4% Cu | 40-60% | Very Low |
- Mineral Considerations
- Malachite/Azurite: Fast leaching, high recovery
- Chrysocolla: Slow, needs finer grinding
- Cuprite: Requires oxidizing conditions
- Process Enhancements
- Agglomeration improves heap permeability
- Bacterial leaching boosts refractory ore recovery
- High-temperature leaching for silicate ores
Some plants pre-concentrate oxides via gravity separation when copper-bearing minerals are coarser than gangue. This reduces leaching costs.
Targeted Solutions for the “Difficult Flotation” Challenge in Copper Oxide Ore Processing
Copper oxide ores (e.g., chalcopyrite, malachite) exhibit strong hydrophilicity, making direct flotation challenging. Process selection must be tailored to ore characteristics:
Sulfide flotation method: First, sodium sulfide is added to “convert” copper oxides into synthetic copper sulfides. Flotation then proceeds as per sulfide ore processing. Suitable for low-clay content, easily sulfidizable ores, achieving recovery rates of 60%-80%.

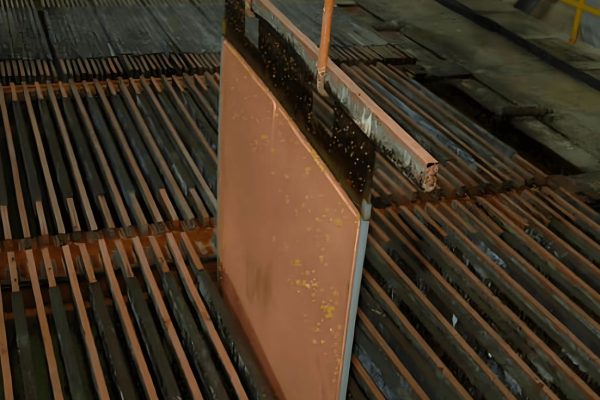

Acid Leaching – Extraction – Electrodeposition (SX-EW) Process: Leaches copper ions with dilute sulfuric acid, separates impurities using an extractant (e.g., LIX984N), and directly produces cathode copper in an electrodeposition cell. Particularly suitable for low-grade oxidized copper ores with grades of 0.3%-1% and fine-grained distribution.
Reduction-Floating Process: Ore is roasted with coal powder and salt, reducing copper ions to metallic copper that adheres to carbon particles. Recovery occurs via flotation. This method is suitable for difficult-to-leach oxidized copper ores with high silica, calcium, and magnesium content.
Mixed Copper Ore Beneficiation
How to Handle Both Sulfide and Oxide?
Mixed ores frustrate many processors. But combining methods creates opportunities others miss.
Mixed copper ores need sequential sulfide flotation followed by oxide leaching. The critical step is properly characterizing the oxide: sulfide ratio first. Modern plants achieve 80-90% overall recovery by optimizing each circuit’s feed composition. Recent advances include split-flotation flowsheets and controlled potential sulfidization.
Mixed ore processing strategies
1. Feed Characterization
Essential tests:
- Chemical assay (total vs. acid-soluble copper)
- Mineralogy (QEMSCAN or MLA)
- Liberation analysis
- Flowsheet Options
| Approach | Best For | Advantages |
| Sequential | >30% Sulfide | High sulfide recovery |
| Parallel | Balanced ore | Flexible operation |
| Bulk-Sulfidization | Fine oxides | Simplifies circuit |
- Key Process Controls
- Grind size optimization: Sulfides need finer grind; Coarseris better for leaching
- pH adjustment between circuits
- Intermediate thickening
- Reagent selection avoids interference
Some plants add gravity concentration upfront when native copper exists. Others use magnetic separation for iron oxides. The trend is toward modular plants that adjust processing routes based on real-time ore tracking.
“Staged Recovery” Balances Sulfide and Oxidized Minerals
When ore contains both sulfide and oxide copper minerals, a segmented process is employed: “flotate sulfides first, then treat oxides.” This involves producing a sulfide concentrate via conventional sulfide flotation, followed by treating the flotation tailings with either “sulfide flotation” or “acid leaching” to extract oxide copper minerals. This prevents oxide minerals from interfering with sulfide flotation, boosting overall recovery rates by 5%-10%.
Copper Ore Beneficiation Auxiliary Processes
In addition to the core flotation, gravity separation, and leaching processes, comprehensive auxiliary processes are crucial for ensuring production efficiency and achieving environmental goals. During the pretreatment stage, ores with high mud content require the installation of desludging tanks or the use of hydrocyclones to effectively prevent fine mud from interfering with subsequent flotation operations. Ores containing magnetic minerals require pre-iron removal through magnetic separators, which not only improves the efficiency of the main process but also significantly reduces equipment wear. During product purification, processes must be flexibly adjusted based on concentrate composition. When the sulfur content of the copper concentrate exceeds the standard, reverse flotation desulfurization is initiated; if arsenic levels exceed the standard, lime roasting is used to remove arsenic. For associated minerals such as copper and molybdenum, a mixed concentrate is produced, followed by a “kerosene + water glass” selective separation process for copper and molybdenum separation and comprehensive recovery. In terms of environmental protection, standardized solid waste disposal is achieved through the construction of tailings dry dumps or tailings ponds. Some advanced companies also install tailings re-selection systems to further recover residual valuable metals. Simultaneously, wastewater treatment systems consisting of sedimentation tanks and filters are established to purify flotation wastewater and recycle it back into grinding, flotation, and other processes. This maintains a plant-wide water recycling rate of over 80%, meeting clean production requirements while maximizing resource utilization. This integrated system of “pretreatment optimization + customized product purification + full-process resource recycling” has become a standard feature of modern copper concentrators.
Conclusion
Choosing the right copper beneficiation process starts with thorough ore characterization. Sulfide ores excel with flotation, oxides need leaching, while mixed ores require combined approaches. Modern plants customize flowsheets based on mineralogy, achieving recoveries above 85% consistently. The key is matching the process to the ore’s specific properties rather than using a one-size-fits-all approach.
