In today’s mining industry, energy efficiency and sustainable comminution technologies are paramount for operational and economic success. High-Pressure Grinding Rolls (HPGR) have emerged as a revolutionary solution, offering superior energy-saving performance compared to traditional grinding methods. This comprehensive analysis explores HPGR’s core energy-saving mechanisms, influencing factors, optimization strategies, and measurable benefits—providing actionable insights for mineral processing professionals seeking to enhance efficiency and reduce costs while maintaining product quality.
Energy Consumption Analysis of High-Pressure Grinding Rolls (HPGR)
As an efficient and energy-saving comminution technology, high-pressure grinding rolls (HPGR) require a systematic energy consumption analysis from multiple dimensions, including working principles, energy-saving mechanisms, influencing factors, and optimization approaches. Below is a professional analytical framework:
Core Energy-Saving Mechanisms
- Interparticle Breakage Principle
- Material forms a dense bed between rolls, primarily crushed by interparticle compression
- Compared to traditional impact crushing (“single-particle breakage”), energy utilization increases by over 40%
- Energy Conversion Efficiency
- Effective breakage energy ratio reaches 70–80% (vs. 1–3% in ball mills)
- Roller pressure can reach 50–300 MPa, creating stress concentration effects
Key Influencing Factors
- Process Parameters
- Roller pressure: Every 1 MPa increase raises power consumption by 1.2–1.5 kWh/t
- Roller speed: Optimal range exists at 1.2–1.8 m/s
- Bed thickness: Ideal thickness is 2–3% of roll diameter
- Material Characteristics
- Bond Work Index (Wi): Every 1 kWh/t increase raises system energy consumption by 8–12%
- Moisture content: Energy consumption rises sharply above 3%

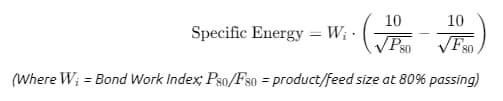

Energy Consumption Quantification Model
Industry Benchmark Comparison:
| Equipment Type | Energy (kWh/t) | Size Reduction Ratio |
| HPGR | 2.8–4.5 | 5–8 |
| Ball Mill | 12–25 | 100–300 |
| Vertical Roller Mill | 6–9 | 40–60 |
Energy Optimization Strategies
- Process Configuration
- Semi-finish grinding systems reduce energy by 15–20%
- Stable bed control systems save 8–12%
- Equipment Upgrades
- Hydraulic response time optimized to <0.1 s
- Roller wear resistance lifespan extended to 8,000–12,000 hours
- Smart Control Systems
- Adaptive pressure adjustment based on material properties
- Real-time power-to-throughput balancing algorithms
Economic Viability Analysis

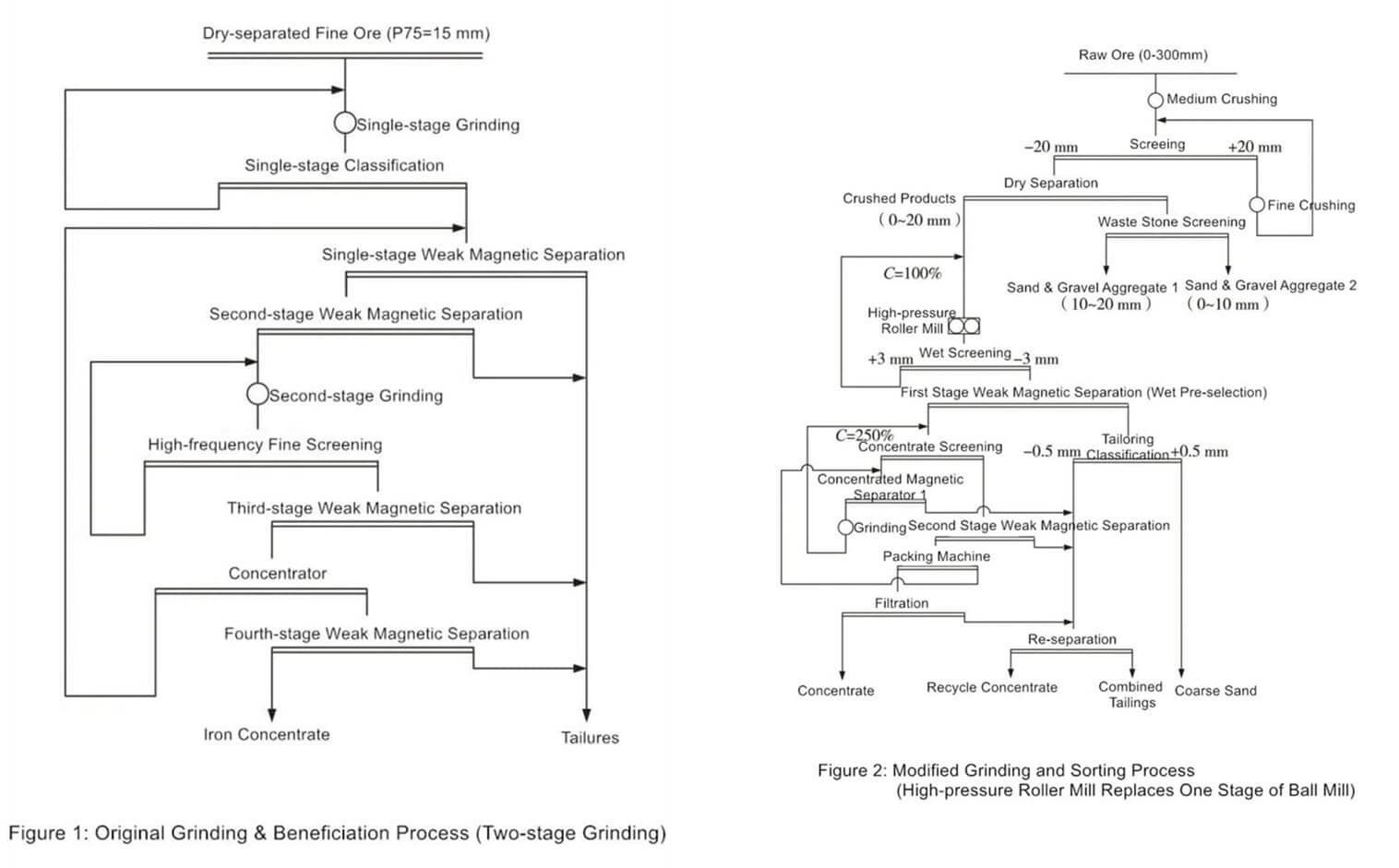

In the original single-stage ball mill system, the feed ore had a particle size of -15 mm, accounting for 75%, and the average proportion of discharge particles with a particle size of -0.074 mm was 21.34%. However, after high-pressure roller milling, the average proportion of the product with a particle size of -0.074 mm was 22.72%, which is 1.38 percentage points higher than the original beneficiation system (single-stage grinding). Furthermore, the ore compressed by the high-pressure roller mill process has higher grindability and is easier to crush and liberate. Field data shows that the high-pressure roller mill process can completely replace the operation of the single-stage ball mill.
To investigate the advantages of the high-pressure roller mill process in replacing the single-stage ball mill, ball milling work index tests were conducted on dry beneficiation concentrates of 3–0 mm without high-pressure roller milling and after high-pressure roller milling treatment (Table 1). The ball milling power index of dry concentrate without high-pressure roller milling is greater than that of concentrate treated with high-pressure roller milling. The total power consumption of dry concentrate without high-pressure roller milling is 52.71 (kW·h)/t, while that of dry concentrate after high-pressure roller milling is 44.92 (kW·h)/t. This indicates that crushing the ore sample by high-pressure roller milling can save about 14% of the power consumption of one grinding stage.
| Table 1. Test results of the work index of dry concentrate and wet concentrate from high-pressure roller mill products | ||
| Particle Size /mm | Dry Concentrate Without High-pressure Roller Milling /(kW·h)/t | Dry Concentrate After High-pressure Roller Milling /[(kW·h)/t] |
| 3~0.250 | 8.15 | 6.38 |
| 0.250~0.150 | 10.54 | 9.05 |
| 0.150~0.074 | 15.66 | 14.37 |
| 0.074~0.045 | 18.36 | 15.12 |
Compared to traditional ball milling, the high-pressure roller mill process reduces the total power consumption of the system by approximately 14%. Considering that the original process had 75% of the feed particle size at -15 mm and approximately 12% of the feed material being removed before grinding, the modified process uses 20–0 mm particles, with -3 mm particles undergoing wet removal, reducing the amount of removed material to approximately 24%. This reduction in feed volume by over 12% results in a decrease in total system power consumption of approximately 25%. This significant energy reduction validates the energy-saving potential of high-pressure roller mills and also reduces the consumption of grinding media. These benefits will translate into significant economic advantages in production. In addition to the direct reduction in energy consumption, high-pressure roller mills also offer longer lifespans for wear parts, lower maintenance frequency, and relatively lower long-term operating costs, thereby reducing the overall cost of the mineral processing process.
Product Quality Improvements from High-Pressure Roller Milling
As comminution technology continues to evolve, high-pressure roller milling (HPRM) has emerged as a game-changing innovation in mineral processing. Unlike conventional grinding methods, HPRM delivers superior product quality through advanced mechanical principles and precise process control. The key quality enhancements are demonstrated across three critical dimensions:
(1) Optimization of Particle Size Distribution
High-pressure roller mills apply high pressure, causing the ore to undergo interlayer crushing between the rollers, effectively increasing the proportion of fine particles in the product. This is beneficial for subsequent mineral sorting processes, as finer particle sizes help improve the liberation degree and sorting efficiency of minerals.
(2) Reduction of Over-crushing
High-pressure roller mills precisely control the ore crushing process by adjusting the roller pressure and roller spacing. Compared to traditional ball milling, high-pressure roller mills use a compression crushing mechanism rather than impact crushing, making the ore crushing process more controllable. Fine adjustment of roller pressure and roller spacing effectively avoids over-crushing caused by excessive grinding time or excessive impact in traditional ball mills. Reducing over-crushing not only helps improve the recovery rate of useful minerals but also effectively reduces the energy consumption and cost of subsequent processing.
(3) Improved Mineral Processing Efficiency
High-pressure roller milling improves the grindability of the ore, reducing energy consumption in subsequent grinding operations and thus improving the efficiency of the entire mineral processing flow.
Key Features Highlighted:
✔ Precision particle engineering via controlled compressive forces
✔ Energy-smart solution reducing downstream processing load
✔ Liberation-focused product enhancing separation performance
This strategic advantage translates to measurable benefits across mining operations – from reduced reagent consumption in flotation to improved recovery rates in heap leaching applications.
Conclusion
As the mining industry continues prioritizing sustainability and cost efficiency, HPGR stands out as a transformative technology that bridges performance and environmental responsibility. With its unmatched energy-saving mechanisms, adaptability to ore characteristics, and measurable economic benefits, HPGR isn’t just an alternative—it’s the future of modern comminution. By integrating smart controls and process optimizations, operators can unlock even greater value, ensuring long-term competitiveness in an increasingly resource-conscious world. The transition to HPGR isn’t merely an upgrade; it’s a strategic investment in efficiency, quality, and sustainability.
