Copper ore beneficiation is crucial for unlocking this versatile metal’s full potential across industries. Given the varying mineral compositions that require specialized processing, understanding effective separation techniques significantly impacts recovery rates and economic returns. This guide explores major beneficiation categories and their applications across diverse copper deposit types.
Three Major Copper Beneficiation Technologies
1. Physical Separation
Gravity concentration (jigs/shaking tables), magnetic separation, and flotation dominate this category. Ideal for free-milling ores like native copper, these methods leverage density/physicochemical differences without altering mineral structures. Modern sensor-based sorting exemplifies technological advancements.
2. Chemical Extraction
Includes heap leaching (acid/alkali solutions), solvent extraction-electrowinning (SX-EW), and bioleaching. Essential for oxidized/sulfide ores with complex gangue minerals where physical methods prove ineffective. Requires strict environmental controls due to reagent usage.
3. Pre-treatment Processes
Roasting (for refractory ores), microwave heating, and ultrasonic treatment prepare recalcitrant minerals (e.g., high-arsenic ores) for downstream processing. These energy-intensive methods improve liberation degrees or modify surface properties for enhanced recovery.
Copper Ore Beneficiation Methods
1. Free-Milling Copper Ore Beneficiation Scheme
Free-milling copper ores, characterized by high mineral liberation and excellent processability, are among the easiest copper ores to exploit. Cost-effective physical gravity separation achieves efficient copper recovery without chemical reagents, offering significant environmental benefits.
Core Process Combination
- Three-stage crushing system (jaw crusher + cone crusher + high-pressure roller mill)
- Gravity separation stage configuration (jigging roughing + shaking table cleaning)

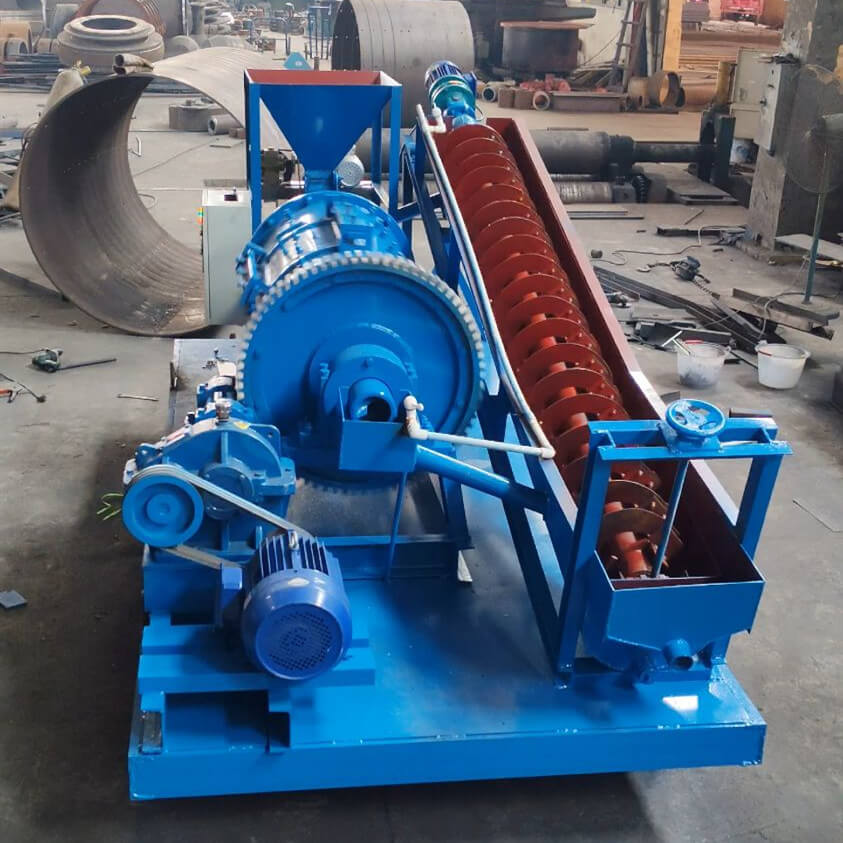

- Φ3.6×6m ball mill closed-circuit grinding
Efficiency Indicators
- Unit cost: ≤8 USD/ton
- Metal recovery rate: 93±2%
- Tailings moisture content: <15%
Optimizing the jig-shaking table combination process ensures high recovery (>92%) while controlling dry tailings moisture (<15%), making it the top choice for rapid deployment in small-to-medium-scale mines.
2. Refractory Copper Ore & High-Arsenic High-Sulfur Ore Treatment
In refractory copper ores, chalcopyrite is encapsulated within pyrite or arsenopyrite matrices, reducing direct flotation recovery to <50%. Bio-oxidation or pressure oxidation pretreatment is needed to break the encapsulation barrier before enhanced flotation or hydrometallurgical recovery.
Pretreatment Section
- Biological Oxidation: Inoculation with acidophilic bacteria (optimal pH 1.5-2.5)
- Pressure Oxidation: 220℃/3000kPa operating conditions
- Pretreatment costs account for up to 60%
Main Process Selection
| Scheme | Applicable Grade | Recovery Rate | Investment Intensity |
| Flotation | >3% Cu | 85-90% | Medium |
| Atmospheric Pressure Leaching | 1-3% Cu | 70-80% | Lower |
| High-Pressure Leaching | Ultrafine Fouling | >90% | Extremely High |
Environmental Support
- Arsenic Immobilization Treatment (Forming Stinkstone)
- SO2 Waste Gas Acidification
- Safe Landfill of Neutralization Sludge
Such ores demand integrated “pretreatment-enhanced separation-waste stabilization” flow control. While technologically intensive, their potential economic value (e.g., Au/Ag byproducts) justifies large-scale adoption of pressure leaching (220°C) or bio-heap leaching (60–90 days).
3. Polymetallic Cu-Pb-Zn-Mo Ore Separation Scheme
Polymetallic ores require differential flotation to sequentially recover copper, lead, zinc, and molybdenum. Sulfur/iron recovery from tailings further elevates resource utilization, making them one of the most economically attractive copper ore types.
Preferred Flotation Matrix
| Process | Core Control Parameters | Reagent System |
| Copper Concentration | pH=9.2±0.2 | Z-200 + Methyl Isobutyl Methanol |
| Lead Concentration | Potential +150mV | Ethylene Nitrogen + Zinc Sulfate |
| Zinc Concentration | Activator CuSO4·5H2O | Butyronitrile + Lime |
| Molybdenum Concentration | Steam Heating to 85℃ | Kerosene + Knox Reagent |
Tailings Value-Added Path
- Sulfur Concentrate (>45%S) → Sulfur/Sulfuric Acid
- Iron Concentrate (>60%Fe) → Pellet Raw Material
- Leachate → Cobalt & Nickel Recovery
Typical Configuration
- 5000t/d Processing Capacity Concentrator
- 6-Series Parallel Flotation Line
- Dual-Series Magnetic Separator Unit
Success hinges on pH adjustment, selective depressants (e.g., ZnSO₄), and tailings reprocessing (+5–8% Cu recovery), favoring integrated 10,000 tpd concentrator-smelter complexes.
4. Placer Copper Ore Processing Strategy
Placer copper ores, already naturally liberated, are efficiently recovered via gravity separation. Mobile mining and processing units enable ultra-low-cost operations, ideal for alluvial or riverbed deposits.
Mining and Processing Equipment Selection
- Bucket wheel mining vessel (processing capacity 300 m³/h)
- Modular gravity separation plant (occupying less than 5000 m²)
- Nelson concentrator (recovering -37 μm particles)
Key Technical Parameters
- Water consumption: <0.5 m³/ton of ore
- Power: 400 kW diesel generator set
- Staffing: 3 shifts × 8 people
Environmental Management
- Layered excavation-backfilling process
- Immediate reclamation technology
- Three-stage tailings water purification
Knelson concentrators (>85% recovery) + shaking tables form the core circuit. Slime interference mitigation and closed-loop water recycling (>90% reuse) are critical to meet environmental standards.
5. Oxide Copper Ore Treatment Scheme
Oxide ores’ processability depends on acid-soluble vs. refractory copper content and slimes behavior:
- Low-grade (<0.5% Cu): Heap leaching
- High-slimes: Granulation or hydrometallurgy
- High-grade (>2% Cu): Sulfidization flotation
Leaching Enhancement Technologies
- Ultrasonic-Assisted Leaching (28kHz)
- Microwave Pretreatment (15kW)
- Directed Microbial Acclimation (Acidithiobacillus ferrooxidans)
Typical Economic Indicators
- Heap Leaching Cost per Ton of Copper: ≤2800 USD
- Electrodeionized Copper Quality: ≥99.97% Cu
- Leaching Cycle: 120-150 days
Heap leaching (60–80% recovery) is most economical but risks clay blinding. High-acid-consuming ores (>15 kg/t) should adopt “flotation-leach hybrid” flowsheets.

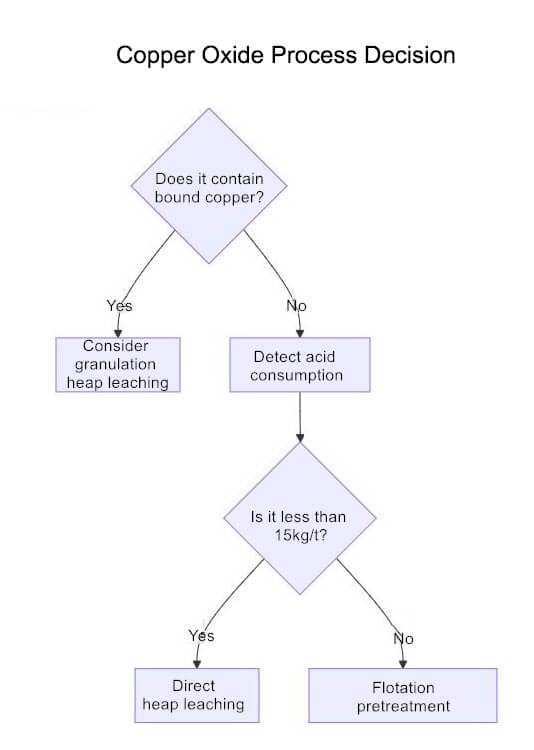

Process Decision Tree
6. Sulfide Copper Ore Flotation Optimization
Sulfide ores (~70% global reserves) primarily undergo flotation.
- Large deposits: SABC grinding + bulk flotation (P₈₀=75–150 µm)
- Refractory types: Electrochemical activation/nanobubble flotation
Grinding Process Selection
| Bond Power Index | Recommended Solution |
| <12kWh/t | HPGR + Semi-autogenous Ball Mill |
| 12-18kWh/t | SABC Standard Configuration |
| >18kWh/t | High-Pressure Roller Mill + Tower Mill |
Intelligent Flotation Control
- Machine Learning-Based Dosing System
- Online Bubble Size Monitoring (CCD Imaging)
- Automatic pH Adjustment in Flotation Cells
Modern Beneficiation Plant Configuration
- Digital Twin Platform
- 5G + AGV Logistics System
- Intelligent Ventilation and Dust Removal
Flotation achieves 85–95% recovery but requires:
✔ Selective collectors (e.g., AF238)
✔ Smart controls (online XRF) for grade stability
Conclusion
Selecting appropriate beneficiation strategies involves mineralogical study and small-scale testing. While flotation remains predominant for copper sulfides, emerging technologies like bioleaching or microwave-assisted grinding deserve ongoing evaluation. Remember, professionals should handle large-scale operations.
