Welcome to Our Copper Electrolysis Plant

Discover our cutting-edge electrolysis processes for efficient copper production and purification.

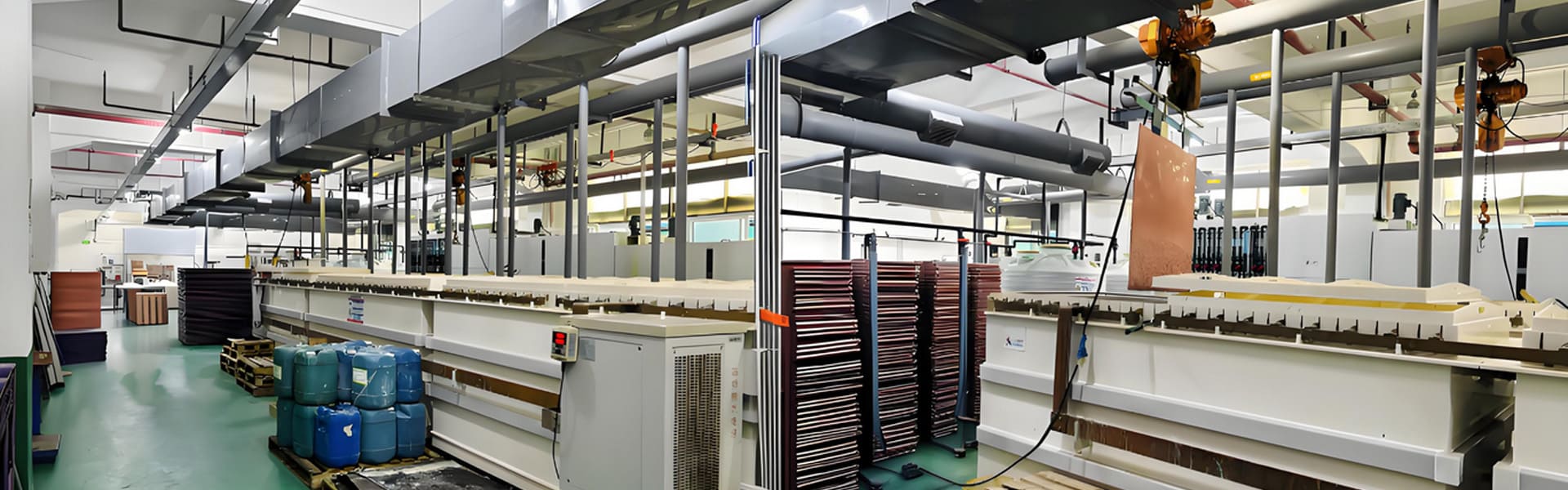

Copper Electrolysis Plant Overview

Our state-of-the-art copper electrolysis & electrorefining plants employ advanced technology to ensure efficient and sustainable copper production. Our process is designed to minimize environmental impact while maximizing product quality.

Our Copper Plant

♥ Copper Electrolysis Process

We employ a highly efficient copper electrolysis process that utilizes a series of electrolytic cells, where copper sulfate solution acts as the electrolyte. This process enables the deposition of high-quality copper cathodes from anodes made of impure copper, ensuring a high purity level of over 99.9%.

♥ Copper Recovery Process

Our copper recovery process incorporates a combination of automated shredding, chemical leaching, and solvent extraction techniques. This multi-step approach maximizes the extraction and purification of copper from raw materials, enabling us to recover up to 95% of the copper content.

♥ Copper Electrorefining Plant

Our state-of-the-art electrorefining plant features a series of electrochemical cells that refine copper to achieve purity levels exceeding 99.99%. By carefully controlling parameters such as current density and temperature, we enhance the electrorefining process, ensuring that our copper products meet the stringent quality standards of the industry.

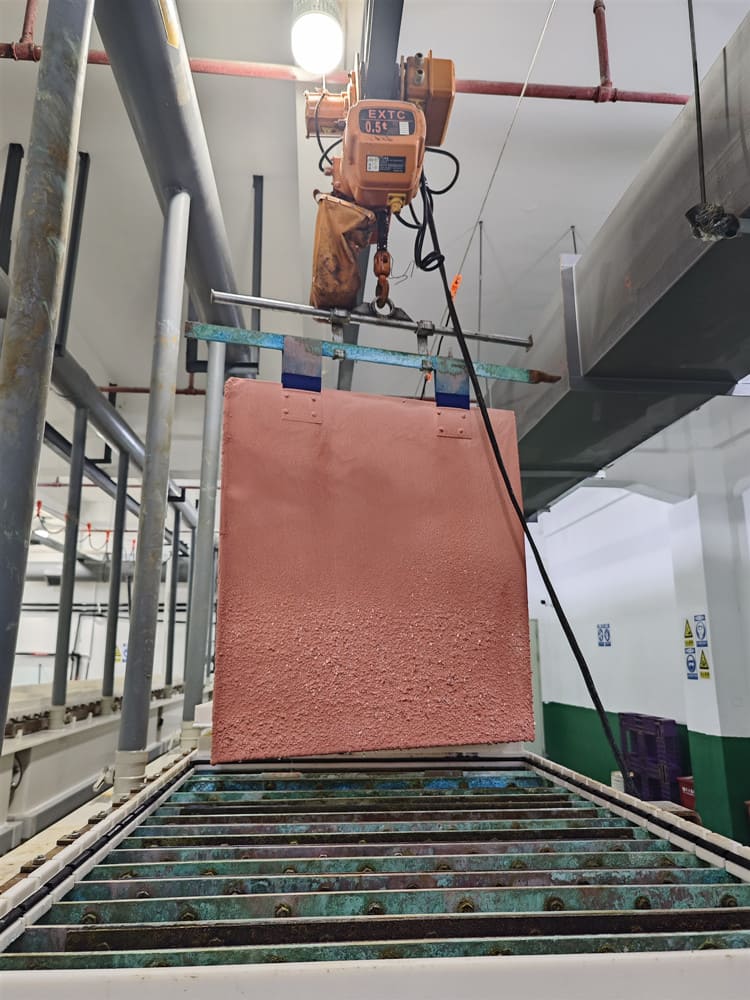

♥ Copper Cathode Production Process

Our copper cathode production process utilizes automated casting and rolling systems. After the electrolysis stage, copper is cast into cathode plates and then rolled to the desired thickness. This process not only ensures the efficient and sustainable production of high-quality copper cathodes but also minimizes material waste.

♥ Copper Refining Plant

Our copper refining plant is equipped with advanced techniques like fire refining and anode casting. Through these methods, we remove impurities such as sulfur and zinc, enhancing the purity of the refined copper. Continuous monitoring and data analysis in real-time allow us to optimize refining parameters, ensuring that the final copper products deliver optimal performance across various applications.

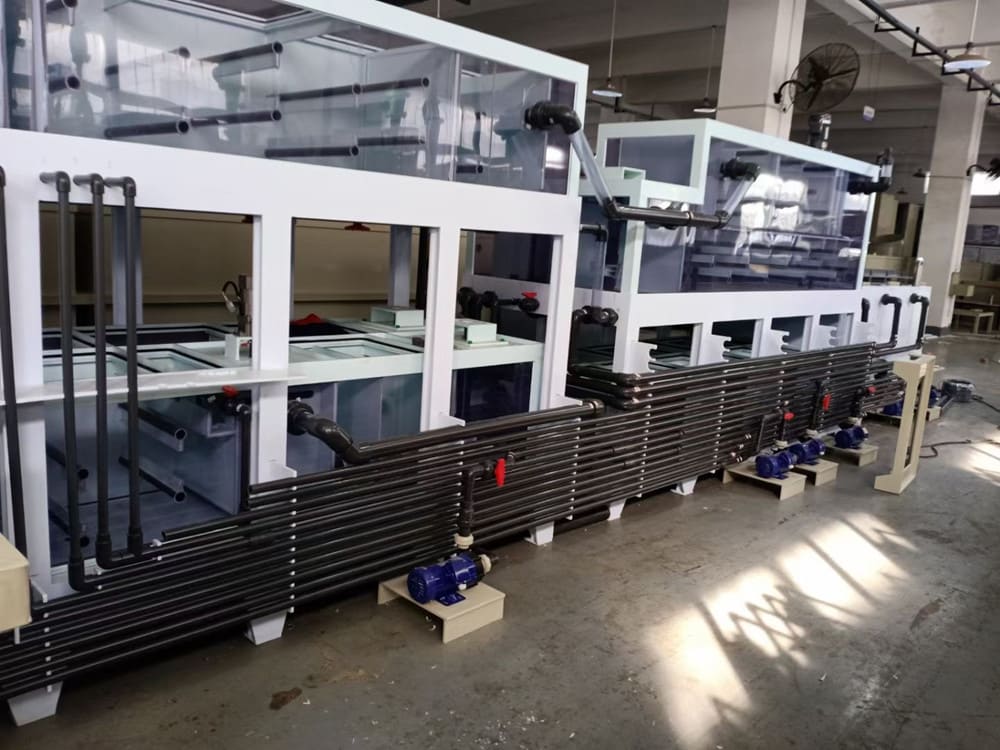

♥ Extraction and Purification of Copper

Utilizing innovative technologies such as hydrometallurgy and electrowinning, we ensure that copper is extracted from ores with high precision. Our process includes the separation of copper from impurities through advanced filtration and ion exchange methods, resulting in exceptionally pure copper ready for production.

Process Name	Main Process Steps	Raw Materials	Key Equipment	Product	Applicability and Characteristics
Copper Electrolysis Process	Crushing and Milling Filtration and Concentration Electrolytic Deposition	Ore or Recycled Copper Materials	Electrolytic Cells, Power Supply System	Copper Cathode	Produces high-purity copper, suitable for large-scale metal refining
Copper Recovery Process	Raw Material Pre-treatment Solution Leaching Electrolytic Reaction	Scrap Copper, Copper Alloys	Electrolytic Cells, Piping System, Magnetic Separator	Refined Copper	Resource recovery and reuse, reduces environmental impact
Extraction and Purification of Copper	Ore Processing Leaching and Dissolution Purification and Electrolysis	Ore	Dissolution Tanks, Filters, Electrolytic Cells	Copper Cathode	Commonly used for the initial extraction and industrial production of copper
Copper Electrorefining Plant	Processing Copper Ore Leaching and Refining Electrolytic Separation	Additional Refined Copper	Large Electrolytic Cells, Automated Control System	Copper Cathode, Cut Copper	Large-scale production with high automation level
Copper Cathode Production Process	Purification via Electrolysis Copper Cathode Deposition	Copper Ore or Refined Copper	Electrolytic Cells, Power Systems	Copper Cathode	Mainly used to manufacture electrolytic copper cathodes, suitable for high-quality requirements
Copper Refining Plant	Further Processing of Concentrates Electrolytic Plating	Refined Copper or Ore	Electrolytic Cells, Cooling Systems	High-Purity Copper	Further enhances the purity and quality of copper to meet industrial and electronic demands

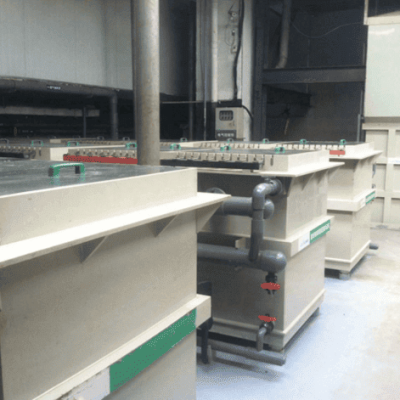

Copper Electrolysis Equipment

The copper electrolysis equipment is primarily used for the electrolytic refining and plating of copper to produce high-purity electrolytic copper cathodes. Here are some common types of copper electrolysis equipment:

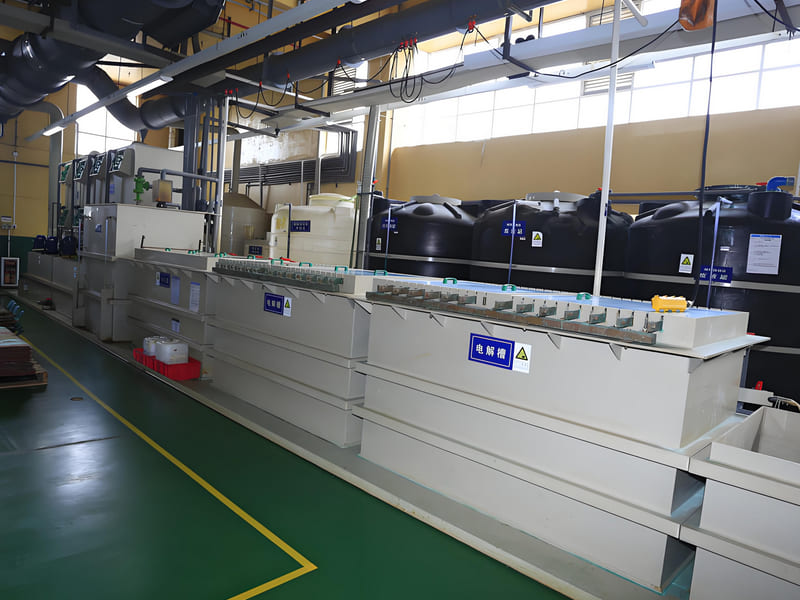

Electrolytic Cell

This is the main device for the electrolysis process, responsible for containing the electrolyte, anodes, and cathodes.
Typically made from corrosion-resistant materials, such as coated steel, plastic, or glass.

Power Supply

Provides a stable direct current power source to drive the electrolysis process.
Must be capable of regulating current and voltage to accommodate different electrolysis conditions.

Electrolyte

- Typically, a solution containing copper salts (such as copper sulfate) is used as the electrolyte.
- Needs to be regularly monitored and replenished.

Anode

Usually made from copper ore or recycled copper.
During the electrolysis process, the anode dissolves, releasing copper ions.

Cathode

Generally constructed from copper plates or foils.
Copper ions are reduced on the cathode and deposited as high-purity electrolytic copper.

Fluid Circulation System

Maintains flow within the electrolytic cell, ensuring an even distribution of copper ions.
Includes pumps, pipelines, and filter components.

Temperature Control System

Monitors and adjusts the temperature during the electrolysis process to enhance efficiency and product quality.

Gas Emission System

Handles gases produced during electrolysis (such as hydrogen) to ensure compliance with environmental standards.

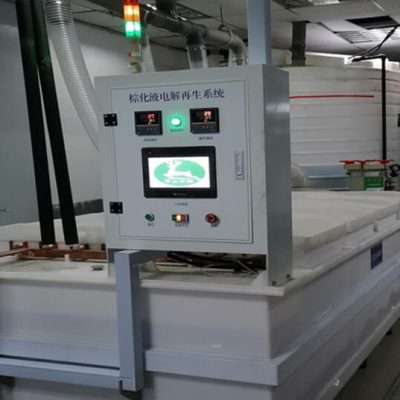

Monitoring and Control System

Includes sensors, programmable logic controllers (PLCs), and other devices for real-time monitoring of the electrolysis process to ensure safety and stability.

Washing Equipment

Used to clean the copper cathodes removed from the electrolytic cell to eliminate deposits and impurities, ensuring the quality of the final product.

Copper Electrolysis Plant & Copper Refining Plants

A Copper Electrolysis and Refining Plant combines both the electrolysis and electrorefining processes to produce high-purity copper from raw materials. The facility plays a crucial role in the copper industry, enabling the extraction of copper from ores or recycled materials and the purification of that copper to meet industry standards.

Rock Copper Gravity Separation & Electrolysis

Gravity Beneficiation: This system mainly includes feeding, crushing and screening, grinding and classification, gravity separation (spiral chute for primary separation and shaking table for final separation). Finally, get copper concentrate.

Rock Copper Flotation & Electrolysis System

Flotation: The flotation mainly includes feeding, crushing and screening, grinding and classification, copper ore flotation, copper concentrate filtration, and tailings dehydration. Finally, get copper concentrate.

Electrolysis System: This system mainly includes leaching and filtration, extraction, washing, back extraction, electrolysis, transfer, and regeneration systems. The purity of cathode copper obtained by electrolysis can reach more than 99%.

Why Choose JXSC?

JXSC is a leading provider of copper mining solutions, offering a comprehensive range of advanced technologies that ensure efficient and sustainable copper production throughout the entire production chain from mine to metal. Our state-of-the-art copper electrolysis and electrorefining plants utilize innovative, environmentally sustainable technologies tailored to meet both new and existing operations, effectively minimizing operational challenges throughout the plant’s lifecycle.

Benefits

✅ Cutting-edge technology guarantees cost-efficient production of high-quality copper while significantly reducing environmental impact.

✅ We provide full process and equipment performance guarantees, ensuring reliability and efficiency.

✅ A lower total cost of ownership is achieved through superior design and manufacturing, supported by our extensive global service network.

Copper Electrolysis Plant: Outstanding Performance of Copper Recovery in PCB Industry

Copper electrolysis plants play a crucial role in the PCB industry by recycling copper through the processing of waste copper and copper-containing wastewater generated during production. This process not only allows for the extraction of high-purity copper for manufacturing, thereby reducing dependence on primary copper materials and lowering costs, but it also effectively minimizes the discharge of hazardous waste, aligning with environmental regulations and enhancing the company’s market competitiveness. Furthermore, with advanced electrolysis technologies, copper electrolysis plants assist PCB manufacturers in achieving a closed-loop cycle, promoting the industry’s advancement towards sustainable development goals.
