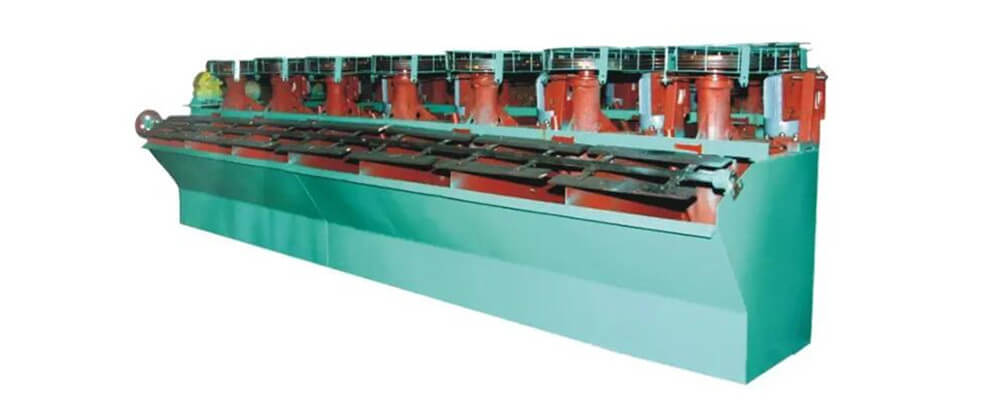

XJK Flotation Cell/Machine
Capacity: 0.18～7m³/min
XJK flotation machine suitable for separation of non-ferrous metals, ferrous metals, precious metals,non-metallic minerals, and chemical raw materials, recovering useful minerals.
XJK Flotation Cell/Machine Overview
Flotation machines constitute the basic equipment for the recovery of useful minerals from non-ferrous ores and other raw materials by flotation. They can also operate as individual flotation cells.
Flotation Cells (Froth Flotation) were developed to separate and recover high-value Sulphide ores from low-grade ore bodies. The Flotation Cell is aerated to produce bubbles and agitated to keep the solids particles in suspension in the pulp. A flotation cell is an appliance in which froth flotation of ores is performed. It has provisions for receiving conditioned pulp, aerating this pulp, and for separate discharge of the resulting mineralized froth and impoverished tailings.
Flotation Cells/Machines Types
- Agitating flotation machine
- Self-priming flotation machine
- Aeration flotation machine
- Flotation column machine
Flotation Cells/Machines For Sale
Our froth flotation separation is sold all around the world and is popular with clients. The models of our flotation cells are main including SF, XJK, JJF, XCF, and KYF flotation cells.
Advantages
The XJK flotation cell stands out for its high inhaling capacity and low energy consumption, making it an efficient and cost-effective solution for mineral separation. With a self-contained flotation circuit that inhales both air and pulp independently, it eliminates the need for auxiliary equipment, simplifying operation. The flexible process design allows for easy adjustments to meet varying production needs. Additionally, its optimized pulp circulation minimizes coarse sand sedimentation, ensuring stable performance. The integrated automatic control system further enhances operational convenience, enabling smooth and precise adjustments for optimal flotation results. This combination of efficiency, adaptability, and automation makes the XJK flotation cell a reliable choice for mineral processing.
Reliable structure – long-standing market share among small and medium-sized mines
Wide adaptability – capable of processing minerals such as copper, lead, zinc, gold, sulfur, and graphite
Easy maintenance – highly standardized parts
Structures & Working Principle
XJK Flotation Cell/Machine Working Principle
The mineral pulp being added pharmacy will be passed into the gas, and the electric rotor will bring the movement of part pieces to mix and stir in order to make the mineral and gas sufficiently mixed, and at this minute, the grain of mineral pulp is above on the bubble, floating on the surface, which can reach the purpose of sorting the mineral material through blade scrapings.
Technical Parameters
| Model | Volume（m3） | Cell size(mm) | Impeller Dia.(mm) | Impeller speed(r/min) | Capacity(m3/min) | Power for Stir/Scraper(kw) | Singe cell weight(kg) |
| XJK-3A | 0.35 | 700×700×700 | 300 | 483 | 0.18-0.4 | 2.2/0.55 | 430 |
| XJK-4A | 0.62 | 820×900×850 | 350 | 400 | 0.3-0.9 | 3/1.1 | 755 |
| XJK-5A | 1.1 | 1100×1100×1000 | 500 | 330 | 0.6-1.6 | 5.5/1.1 | 1416 |
| XJK-6A | 2.8 | 1750×1600×1100 | 600 | 280 | 1.5-3.5 | 11/1.1 | 2113 |
| XJK-7A | 5.8 | 2200×2200×1200 | 750 | 240 | 3–7 | 22/1.5 | 3400 |
