Sapphires possess a specific gravity ranging between 4.0 and 4.1, which distinctly differentiates them from common gangue minerals (typically below 3.0). Furthermore, due to their high liberation degree—meaning they tend to separate cleanly from surrounding rock—sapphires are exceptionally well-suited for gravity separation.

Sapphire Ore Solution

→

Sapphire Ore Beneficiation

Introduction

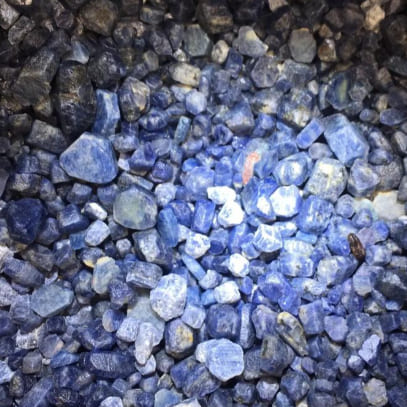

About Sapphire Ore

Sapphire ore refers to the naturally occurring mineral deposits containing corundum crystals (aluminum oxide) with the signature blue hue. These stones form deep within metamorphic or igneous rocks under intense heat and pressure over millions of years.

Where It’s Found

Major deposits exist in:

Asia (Kashmir, Sri Lanka, Myanmar)
Australia (Queensland)
Africa (Madagascar, Nigeria)
North America (Montana)

Key Characteristics

Colors: Primarily blue (from iron/titanium), but also occurs in yellow, green, pink (trace elements)

Hardness: 9 on the Mohs scale (second only to diamond)

Crystal structure: Hexagonal barrel-shaped crystals

Rarity: More common than ruby, but high-quality gem material remains scarce

Commercial Uses:

75% becomes cut gemstones are used for jewelry
Industrial applications (watch crystals, optical components)
Collectors’ rough specimens

Mining Methods

Traditional techniques include:

Surface/sluice mining (riverbeds)
Open-pit excavation
Underground tunneling (rare for sapphires)

Mineral Processing

Sapphire Ore Beneficiation Methods

Manual Washing

The traditional sapphire sorting method involves manual washing, where laborers extensively process raw ore sand to manually pick out qualified sapphire crystals. This method suffers from low efficiency, high labor intensity, and uncontrollable sorting standards, making large-scale production difficult.

Gravity Separation

Sapphire has a specific gravity of 4.0–4.1. In placer deposits, sapphire occurs almost entirely as isolated crystals with high individual liberation, unassociated with waste rock, and exhibiting distinct differences. The specific gravity of waste rock generally does not exceed 2.6, resulting in a significant density difference between the two. High individual liberation and a significant specific gravity difference are two conditions that perfectly align with the fundamental requirements of gravity separation. Consequently, gravity separation is the optimal method for extracting sapphires from placer deposits.

Modern sapphire ore processing plants employ gravity separation techniques to extract sapphires from placer deposits. This method ensures higher output and recovery rates while significantly reducing labor intensity due to increased automation. Additionally, separation parameters remain stable and unaffected by human factors.

Sapphire Processing

1. Washing & Screening

The raw ore undergoes washing and screening to remove dirt and clumps, preventing sapphire from being lost due to clumps encapsulating it and reducing interference from dirt in gravity separation.

2. Gravity Separation

After washing and screening, the sapphire placer ore enters a jig concentrator for further processing. The jigs used here are typically high-capacity, high-particle-size, and coarse-particle-size modern jigs, capable of perfectly separating qualified sapphire crystals from the raw ore, with satisfactory efficiency and recovery rates.

3. Dewatering

After gravity separation, the dewatering screen is used to dehydrate the processed sapphire, preparing it for further treatment.

A typical sapphire beneficiation production line consists of a feeder, washing machine, drum screen, jig, and dewatering screen. After washing and screening, the raw ore enters the jig, pulsating sluice, and reciprocating concentrator for gravity separation.

Sapphire Crushing & Washing Plant

150TPH Sapphire Crushing and Washing Plant Flowsheet Explanation

This flowsheet outlines the complete sapphire beneficiation process, comprising five key stages:

1. Primary Feeding & Pre-Screening

Raw sapphire-bearing material is fed via excavator/wheel loader into a hopper equipped with 70mm grizzly bars. Oversized material (>70mm) advances to crushing, while undersized material (<70mm) proceeds directly to washing.

2. Crushing

The jaw crusher reduces >70mm feed to approximately 40mm for improved liberation. Crusher discharge merges with bypassed fines at the primary screening stage.

3. Multi-Stage Washing & Classification

Primary screening

25mm: Rejected as waste rock
<2mm: Conveyed as fine slurry
2-25mm: Advanced to secondary screening

Secondary screening & washing employs a triple-deck vibrating screen (10mm/6mm/2mm apertures) producing four precise size fractions:

Oversize: 10-25mm
Middling 1: 6-10mm
Middling 2: 2-6mm
Slimes: 0-2mm (wastewater)

4. Density Separation

Size-classified fractions undergo targeted jig separation:

Optimal separation occurs when narrow size ranges (2-6mm, 6-10mm, 10-25mm) are processed separately
Jig parameters adjusted per size fraction for peak sapphire recovery

5. Tailings Management

All jig rejects undergo dewatering:
