Grinding mills are the backbone of mineral processing plants, pulverizing ore into optimal sizes for downstream extraction. But with various mill types—from ball mills to SAG mills—selecting the right equipment can be overwhelming for newcomers. This guide breaks down the fundamentals of core milling machinery, comparing designs, applications, and efficiency considerations to help operators and engineers make informed decisions.
What is a Grinding Mill and Why Does it Matter in Mineral Processing?
A grinding mill is a machine that uses grinding media inside a rotating drum to crush, impact, and grind coarse ore particles into finer material.
Core Function: Liberation of Valuable Minerals
When ore is mined, valuable minerals and waste rock (gangue) are bound together as composite particles. While crushing reduces large rocks into smaller pieces, it doesn’t separate valuable minerals. Only through the process of grinding—by pulverizing these intergrowths until the valuable minerals are individually exposed—can subsequent separation techniques (such as magnetic separation, flotation, and gravity separation) effectively recover them.
In simple terms: Poor grinding → Incomplete mineral liberation → Low recovery → Lost profits.
The efficiency of the grinding mill directly determines whether a mineral processing plant can maximize its financial returns.
Energy & Cost Implications
Grinding is the most energy-intensive stage in mineral processing, consuming 40–60% of a plant’s total power. Steel wear (grinding media & liners) also adds high costs. Therefore, optimizing mill performance is crucial for controlling operating expenses.
Key Takeaway
A well-tuned grinding mill doesn’t just “grind”—it liberates value and ensures profitability.
Mainstream Classifications and Applicable Scenarios for Grinding Mills
In the mineral processing industry, the most commonly used grinding mills are broadly categorized into four main types, based on their grinding media and structural characteristics; each category is suited to specific application scenarios.
1. Ball Mill
The ball mill is the most widely used and common type of grinding equipment; its grinding media consist of steel balls.
Features: Produces a fine grind size and a uniform product; highly adaptable and suitable for fine grinding operations. It is utilized for the vast majority of metallic and non-metallic ores. It can be configured for either single-stage or two-stage grinding, demonstrating exceptional versatility.

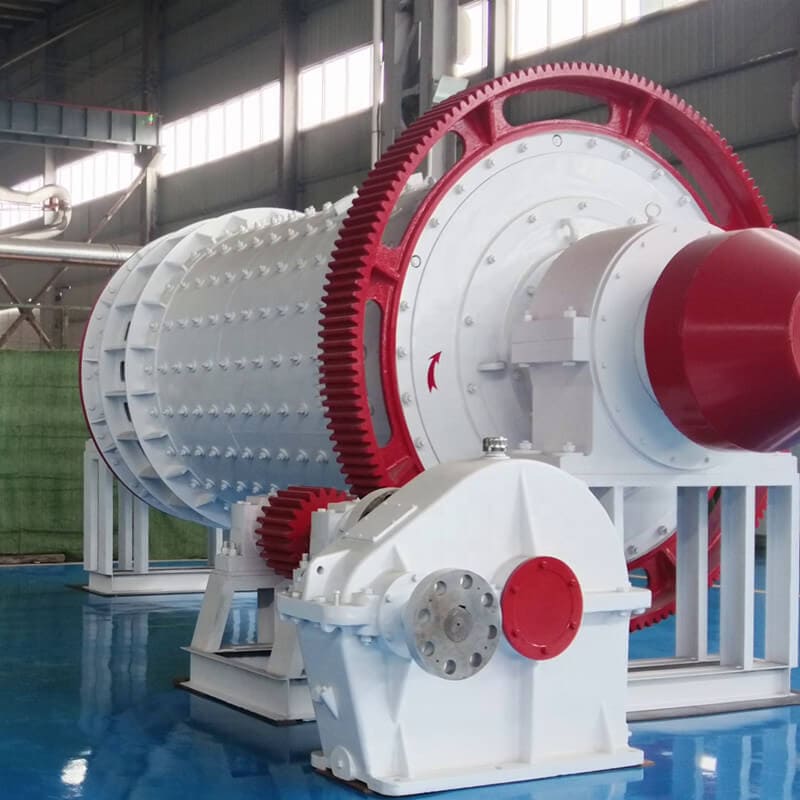

2. Rod Mill
The rod mill‘s grinding media consist of steel rods.
Features: Primarily relies on impact action, while the abrasive action is relatively gentle. It minimizes over-grinding of the product, making it suitable for coarse grinding operations. It is frequently used to process ores that are highly brittle and prone to over-grinding, or it serves as the initial-stage equipment within a grinding circuit.

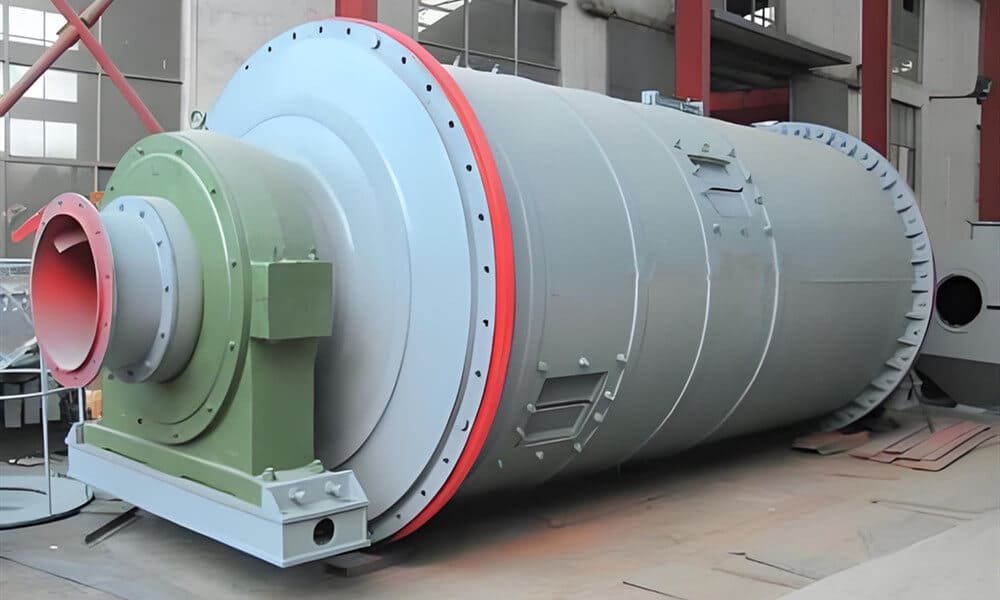

3. Pebble Mill
Its grinding media consist of gravel, pebbles, or specific ore lumps; it does not utilize steel-based media.
Features: Eliminates iron contamination. It is particularly suitable for grinding materials sensitive to iron contamination—such as non-metallic ores, ceramics, and chemical raw materials—though its application scenarios are relatively specialized.

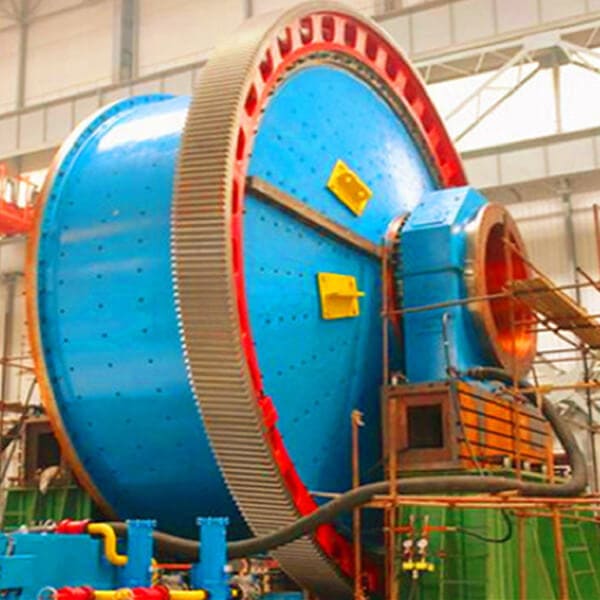

4. Autogenous Mill
Utilizes the ore being ground as its own grinding media, requiring no additional steel balls or rods; it is also referred to as a “media-free mill.”
Features: Simplifies the process flow, reduces the number of required equipment units, and lowers investment costs. It integrates the crushing and grinding stages, allowing for the direct processing of relatively large ore lumps. It is suitable for ores of moderate hardness and appropriate structural characteristics, and it can significantly shorten the overall processing circuit.
These four types of grinding mills collectively cover virtually every grinding scenario within the mineral processing industry, with the ball mill remaining the absolute mainstream choice.
Three Core Functions of a Grinding Mill
No matter the type, every grinding mill performs three essential roles in mineral processing:
1. Mineral Liberation (The Fundamental Role)
This is the most fundamental function: grinding composite ores to a fine consistency to separate valuable minerals from gangue (waste rock), thereby creating the necessary conditions for subsequent beneficiation.
Why it matters: Without sufficient liberation, downstream processes (flotation, magnetic separation, etc.) cannot recover minerals efficiently
2. Particle Size Control (Precision Matters)
Providing a product with the appropriate particle size for downstream separation operations. Different separation methods have distinct requirements for optimal particle size:
- Flotation: Requires finer grind
- Gravity separation: Tolerates coarser particles
Over-grinding wastes energy, and under-grinding reduces recovery. Making precise control of particle size during grinding essential.
3. Material Activation (Preparing for Success)
During the grinding process, ore is comminuted and thoroughly mixed to form a slurry of appropriate density. This creates optimal operating conditions for subsequent processes—such as flotation and magnetic separation—thereby enhancing separation efficiency.
Why Grinding Mills are the “Heart” of a Processing Plant?
Their performance directly dictates the entire production line’s efficiency, recovery rates, and profitability.
How is Grinding Performance Evaluated?
A grinding mill’s effectiveness isn’t measured by how fast it spins—but by four critical metrics:
1. Grinding Fineness (% Passing Target Size)
Defines: The percentage of product particles finer than the required size
Why it matters:
- Too coarse→ Poor mineral liberation
- Too fine→ Overgrinding (wastes energy, hurts downstream recovery)
2. Throughput (Tonnage per Hour)
Defines: The amount of raw ore processed per unit time
Why it matters:
- Determines the plant’s production capacity
- Low throughput = bottleneck in the processing line
3. Grinding Efficiency (Tons per kWh)
Defines: How much ore is processed per unit of energy
Why it matters:
- Higher efficiency = Lower operational costs
- A key factor in sustainable and economic mining
4. Overgrinding Rate (% Excessively Fine Particles)
Defines: Proportion of useless ultra-fine particles in the product
Why it matters:
- Increases reagent consumption
- Reduces recovery rates (fine slimes are harder to process)
Optimization = Balancing These Four Factors
Each metric interplays with the others—tuning one affects the rest. The best grinding performance maximizes both productivity AND efficiency while minimizing overgrinding.
Basic Process Configurations for Grinding Operations
Grinding is rarely performed in isolation; typically, grinding mills are integrated with classification equipment to form a “closed-circuit” system, thereby ensuring that the final product meets the required particle size specifications.
Single-Stage Grinding: Characterized by a simple structure and low capital investment, this configuration is suitable for applications where the requirements for grinding fineness are not particularly stringent.
Two-Stage Grinding: This configuration involves a primary stage for coarse grinding followed by a secondary stage for fine grinding, with classifiers establishing a closed-circuit loop. This approach yields a finer and more uniform product, making it suitable for processing complex ores that demand a high degree of fineness.
Open-Circuit Grinding: In this configuration, the grinding mill discharges its product directly without any recirculation for further grinding. While it features the simplest structural design, it is prone to issues such as non-uniform particle size distribution and over-grinding; consequently, it is employed only in specific, specialized circumstances.
Closed-Circuit Grinding: This configuration involves the integrated operation of grinding mills and classifiers, wherein coarse material that fails to meet the required specifications is returned to the mill for further grinding. This ensures the stability and consistency of the final product’s particle size, making it the most prevalent and mainstream process configuration in modern mineral processing.
Conclusion
From throughput calculations to wear-part maintenance, mastering grinding mill operations directly impacts production profitability. As mineral demands evolve, innovators continue developing hybrid mills and AI-driven optimization tools—making foundational knowledge from this guide a springboard for future advancements. For deeper dives into specific mill types, explore our mining equipment.
