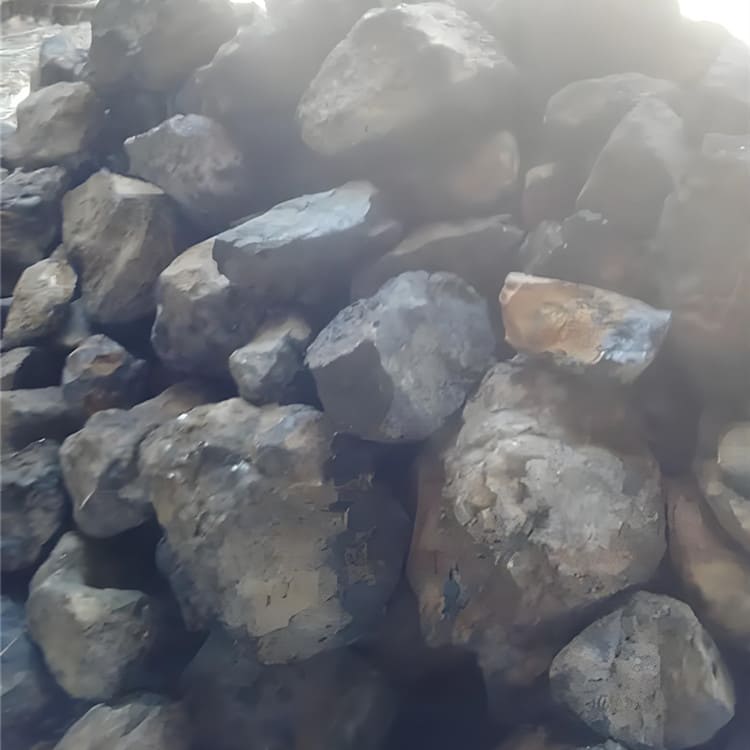

When we first installed our tantalum-niobium ore separation line, the mine owner doubted these dull gray rocks could power smartphones. These unsung heroes of modern technology have since revolutionized electronics and the aerospace sectors.
Tantalum-niobium ores contain strategic metals crucial for capacitors (75% usage) and superalloys (20%). With melting points exceeding 3000°C, these elements enable compact electronics and jet engines. Global reserves concentrate in Africa (48%) and Brazil (26%), creating complex supply chains for this $4.2 billion market.
Many miners don’t realize these ores often hide alongside tin deposits. Understanding this relationship unlocks better extraction methods. Let’s examine why these metals travel together and how to separate them profitably.
Why Do Tantalum-Niobium Ores Always Accompany Tin Deposits?
At our test facility in Jiangxi, we processed 200kg of tin ore and unexpectedly recovered 4.5kg of niobium. This wasn’t luck – it’s fundamental geochemistry.
Tantalum and niobium bond with tin due to their similar ionic radii and oxygen affinity during magma crystallization. Granites solidify at 600-800°C, forcing these elements into columbite-tantalite minerals that later weather into alluvial deposits. This explains why 82% of tantalum production comes from tin mining byproducts.
The Three Key Factors Behind Tantalum-Tin Association
1. Crystallization Chemistry
| Element | Ionic Radius (Å) | Preferred Bonds |
| Ta⁵⁺ | 0.64 | TiO₆ octahedra |
| Nb⁵⁺ | 0.66 | TiO₆ octahedra |
| Sn⁴⁺ | 0.69 | SiO₄ tetrahedra |
These nearly matching sizes allow solid solution substitution in minerals like cassiterite.
2. Magmatic Differentiation Stages
- Early phase: Tin concentrates in residual melts
- Late phase: Tantalum-niobium forms discrete oxides
- Final phase: Hydrothermal fluids redistribute both
3. Weathering Resistance
Secondary placer deposits preserve this association because:
- Columbite (Fe,Mn)(Nb,Ta)₂O₆ resists chemical weathering
- High density (5.2-7.9 g/cm³) enables fluvial concentration. Our Mozambique project achieves 23% higher recovery rates by first targeting tin-rich zones where tantalum concentrations peak.
What Are the Main Types and Rock Characteristics of Tantalum-Niobium Deposits?
Tantalum (Ta) and niobium (Nb) deposits can be divided into two main genetic categories: primary deposits and secondary weathering deposits, with the latter being the primary source of tantalum in Africa.
Primary Deposits
Granitic Pegmatite-Type
- Significance: The most important global source of tantalum, including well-known deposits like Greenbushes and Wodgina in Australia and Tanco in Canada.
- Rock Characteristics: Vein-like or lens-shaped with distinct zoning. The core zone is enriched with spodumene, tantalite, and cassiterite.
- Grade: Ta₂O₅ content ranges from 01% to 0.06%, often co-occurring with lithium (Li), cesium (Cs), and beryllium (Be).
Alkaline Carbonatite-Type
- Significance: The dominant global source of niobium, including major deposits like Araxá in Brazil and Niobec in Canada.
- Rock Characteristics: Composed of carbonate minerals (dolomite, calcite) and alkaline silicates, with pyrochlore as the primary Nb-bearing mineral.
- Grade: Nb₂O₅ content ranges from 4% to 2.3%, forming large-scale deposits economically viable for industrial mining.
Alkaline Granite-Type
- Examples: Such as the Pitinga deposit in Brazil, where Nb-Ta is associated with zircon (Zr) and rare earth elements (REEs).
- Grade: Generally lower in Ta-Nb grade, but valuable for multi-element utilization.
Secondary Weathering Deposits
Residual (Eluvial) Deposits
- Formation: Generated from prolonged weathering and leaching of parent rocks, where soluble components are removed, leaving behind tantalite and microlite as enriched ores.
- Locations: Prominent in DR Congo and Rwanda, characterized by loose, clayey ore textures suitable for artisanal mining.
- Grade: High Ta content but limited in size, making them ideal for small-scale exploitation.
Alluvial (Placer) Deposits
- Formation: Weathered material is transported and sorted by water, accumulating in riverbeds and terraces.
- Ore Characteristics: Sandy grains mixed with quartz, feldspar, and cassiterite; physically separable due to coarse grain size.
- Challenges: Easier to mine and process, but limited in total resource availability.
Economic and Mining Considerations
- Primary deposits require large-scale mining and processing, often with higher capital investment but longer mine life.
- Secondary deposits are critical for artisanal and small-scale miners in Africa but face regulatory and sustainability challenges.
- Exploration Trends: Growing interest in alkaline carbonatites for niobium and deep-seated pegmatites for high-purity tantalum.
What Are the Key Beneficiation Techniques for Tantalum-Niobium Ores?
Tantalum (Ta) and niobium (Nb) ores are characterized by low grades, fine mineral dissemination, and complex mineral associations, requiring a combined “gravity-magnetic-flotation” process tailored to ore type and mineralogical properties.
1. Crushing and Grinding
Objective: Achieve liberation of Ta-Nb minerals from gangue materials.
Hard-rock ores (pegmatites/carbonatites):
- Three-stage crushing: Jaw crusher → Cone crusher → Ball mill
- Grinding fineness: 60%–80% passing 074 mm
Weathered/alluvial deposits:
- No blasting needed; hydraulic mining
- Trommel screening removes coarse debris before gravity separation.
2. Gravity Separation: Primary Concentration
Principle: Leverages density differences between Ta-Nb minerals (6.5–8.3 g/cm³) and gangue (2.6–2.8 g/cm³).
Equipment & Applications:
| Device | Role | Ore Type |
| Jig | Roughing for sand/alluvial ores | High recovery of coarse Ta |
| Shaking table | Final upgrading (e.g., 60% Ta₂O₅ concentrate) | Both hard-rock & placer |
| Spiral chute | Pre-concentration for hard-rock ores | Rejects 30–50% gangue |
| Dense-media cyclone (DMC) | Efficient for coarse Ta-Nb in pegmatites | Lithium-Ta co-production (e.g., Greenbushes) |
Process Example (Placer Deposits): Screening → Jigging → Table concentration → Direct saleable >50% Ta₂O₅ concentrate.
3. Magnetic Separation: Purification
Objective: Remove/separate magnetic impurities (e.g., Fe-Ti oxides, cassiterite).
Low-intensity magnets: Remove magnetite (<0.2T).
High-intensity magnetic separators (HIMS, 0.8–1.5T):
- Separate weakly magnetictantalite-columbite (paramagnetic) from non-magnetic
- Case: At Pitinga mine (Brazil), HIMS achieves 93% Ta recovery from cassiterite tailings.
4. Flotation: Fine Particle Recovery
For ultra-fine (<0.037 mm) or refractory ores, where gravity/magnetic methods fail.
- Collectors: Oleic acid, oxidized paraffin soap, benzyl arsonic acid.
- Modifiers:
- Sodium silicate(depress quartz/feldspar).
- Fluorosilicate(activate Ta-Nb minerals).
- Carbonatite Case (Araxá, Brazil):
- Pyrochlore flotation→ 58% Nb₂O₅ concentrate → Smelting to ferroniobium (FeNb).
5. Integrated Flowsheets & Byproduct Recovery
Modern plants maximize value via Ta-Nb + Li/Sn/REE co-recovery.
Example 1: Pegmatite Ores (Pilgangoora, Australia)
- Crushing/grinding → DMC (Ta/Li pre-concentration).
- Spirals recover fine Ta.
- Li-spodumene flotation→ Magnetic Fe removal.
Final products: 6% Li₂O concentrate (for batteries). >30% Ta₂O₅ concentrate (capacitors).
Example 2: Carbonatite Ores (Araxá, Brazil)
- Crushing → Low-mag (de-P, Fe).
- Desliming cyclones→ Reverse pyrochlore flotation.
- Sintering + EAF smelting→ 65% FeNb alloy.
Emerging Technologies & Challenges
Sensor-based sorting (XRT/Laser) for pre-concentration (reduce grinding costs).
Bioleaching: For Nb recovery from low-grade tailings.
Environmental hurdles:
- Artisanal mining in Africafaces issues with radioactive minerals (e.g., uraninite in coltan).
- Tailings reprocessing: Recovery of REEs from historic Ta-Nb waste.
What Are the Most Effective Beneficiation Methods?
After wasting $280,000 on ineffective separation, we developed a staged recovery process that increased yields by 41%.
Modern plants combine gravity concentration (spirals/shaking tables) with high-intensity magnetic separation (12,000-20,000 Gauss) and flotation (amine collectors at pH 2-4). Advanced operations like Namibia’s Etango project achieve 78% Ta₂O₅ recovery through sensor-based ore sorting before fine grinding.
Optimized Processing by Ore Type
| Deposit Type | Primary Method | Secondary Method | Recovery Rate |
| Hard Rock | Jaw crusher → Rod mill | WHIMS at 18k Gauss | 68-72% Ta |
| Placer | Spiral concentrators | Wet tabling | 82-87% Nb |
| Tailings | Falcon concentrators | Dielectric separation | 53-61% |
Critical innovations:
1. Particle Size Control
- Retain -2mm +75μm fraction for optimal gravity recovery
- Overgrinding below 37μm loses 15-20% to slimes
2. Flotation Advances
- New hydroxamate collectors boost Ta recovery from 65% to 79%
- EDTA depressants selectively separate Sn at pH 3.5
3. Byproduct Credits
Our Shandong plant recovers:
- 92% tin (as cassiterite)
- 74% tantalum (as microlite)
- 68% tungsten (as scheelite). Implementation costs dropped 28% after adopting this integrated approach.
Conclusion
Tantalum-niobium ores demand tailored processing from geologically aware miners. Their intrinsic value lies not just in their composition, but also in the smart recovery of all strategic elements. As a manufacturer, we’ve seen proper beneficiation increase project NPV by 140% compared to conventional methods. The future belongs to operations that master these coupled extraction technologies.
