Graphite Crucible Mini Metal Melting Furnace
Capacity: 1-3Kg for gold
Voltage: 110/220V
Maximum Temperature: 1150℃
Power: 1450/1650W
Color: Red / Black
Melting Time: 40-48 min
Procession Material: Gold, copper, silver, tin, aluminum, etc..
Application: Designed for laboratories, studios, and small-scale metal casting. Suitable for scenarios such as precision casting, jewelry making, and DIY metal processing.
Graphite Crucible Mini Metal Melting Furnace Overview
The mini melting furnace with a compact design is perfect for metal melting use. The metal smelting furnace can meet the industry’s requirements by using fine-quality materials. The capacity of the metal melting furnace is 1kg, 2kg, and 3 kg for gold. The mini gold melting furnace is ideal for industrial and workshop professional use, suitable for smelting processing of gold, pure silver, pure copper, and aluminum.

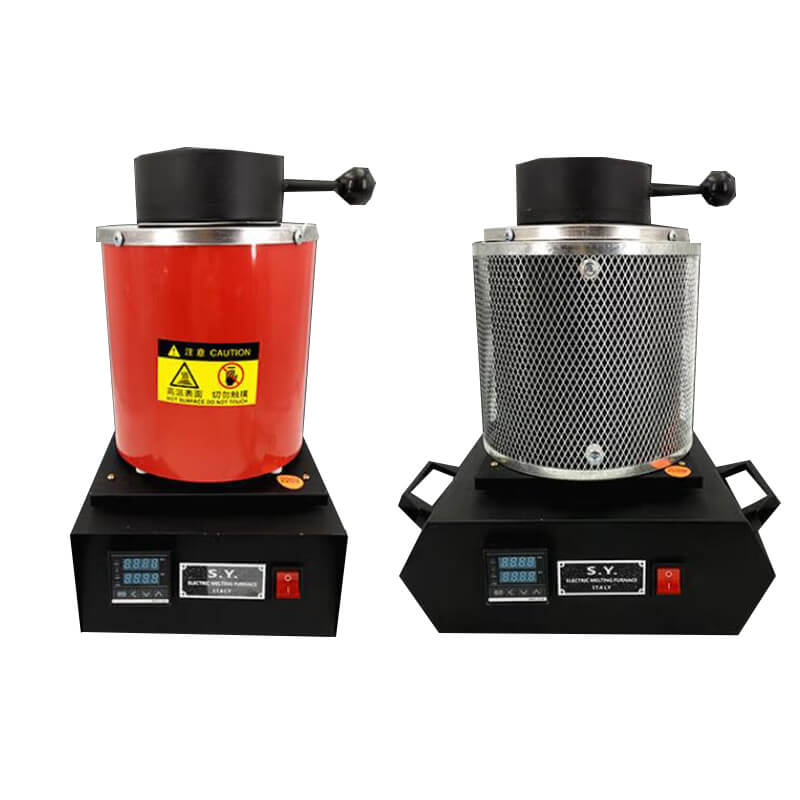

Mini Gold Melting Furnace Types/Models

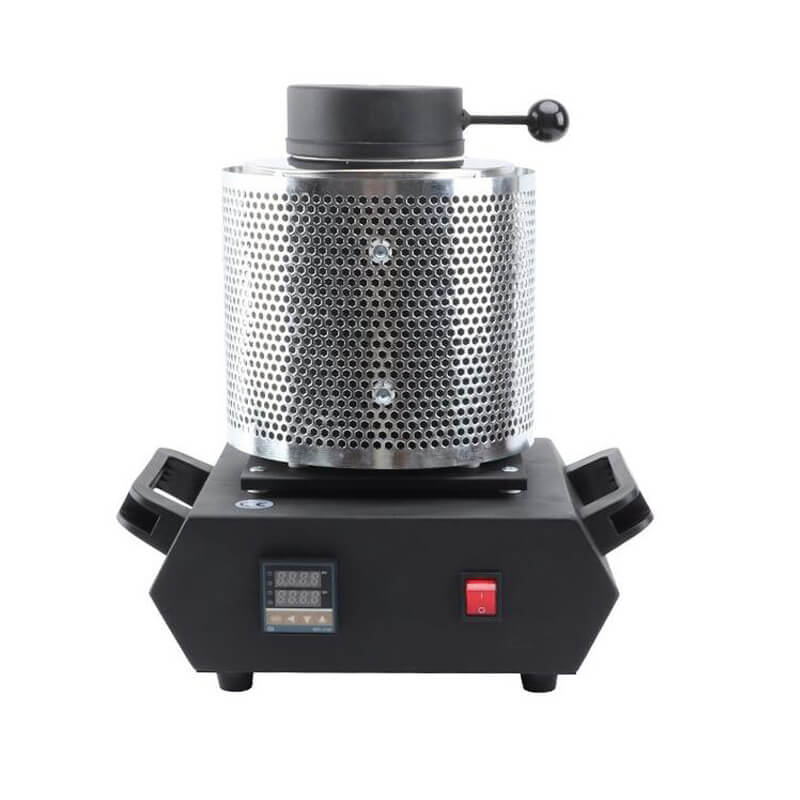

Metal Furnace With Net

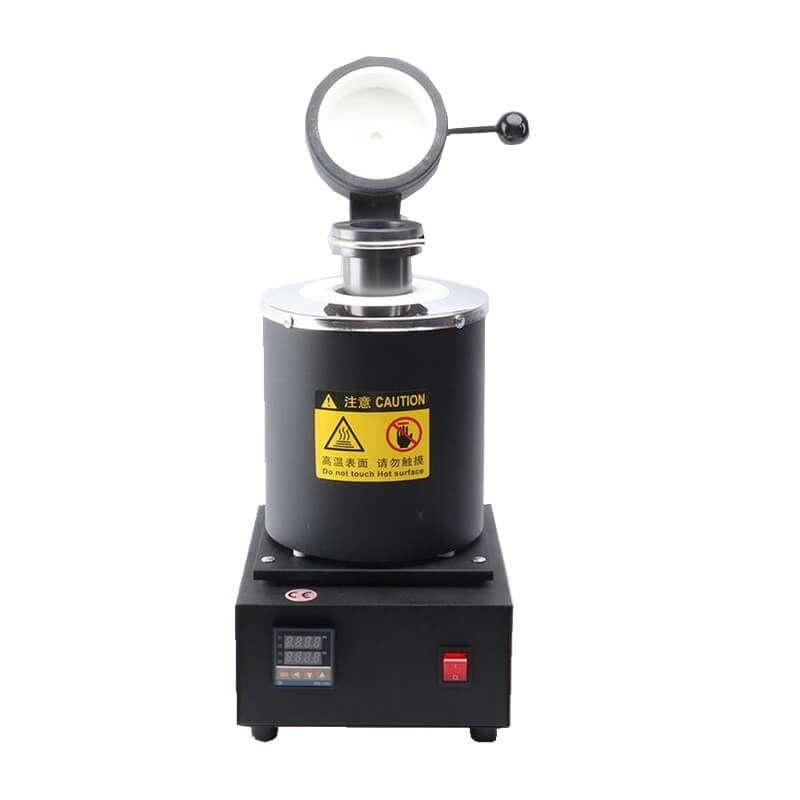

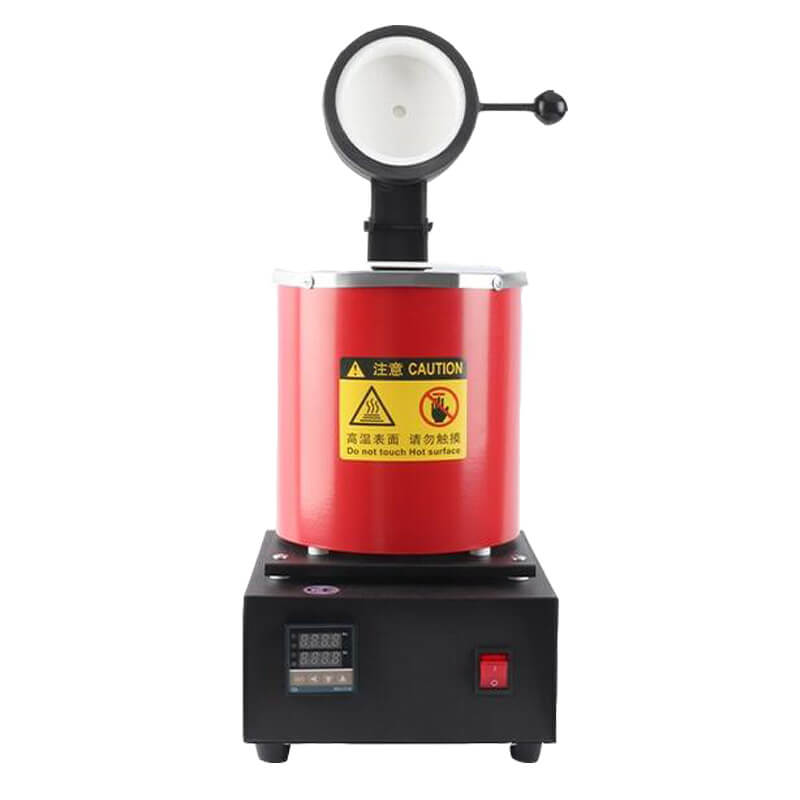

Standard Metal Furnace
Power Plus: CN, AU, EU, UK Optional
Color: Red, Black Optional
Mini Gold Melting Furnace Features
- High-Purity Graphite Crucible
The high-purity graphite crucible with high density and delicate surface can heat quickly and is usually used even at a high temperature. In addition, the crucible withstands heat, acids, and alkalis to ensure dependable long-term service without wear or corrosion.
- Quartz Cover
Its lid and inner tank are made of high-quality quartz for durability. And the quartz chamber with cooling holes facilitates heat dissipation after high-temperature usage to preserve heating components.
- Digital Temperature Control
Characterized by the PID module and digital control system, the furnace monitors the melting chamber’s temperature at 2-second intervals—besides, the K-type thermocouple and display panel work simultaneously to achieve accurate temperature measurement and precise display. - Fast & Efficient Heating
The metal melting furnace with high-temperature alloy heating wire features fast & efficient heating, reaching the maximum temperature of 2102 ℉ / 1150 ℃. It can melt metals with a melting point below 1100 ℃ in 45 minutes, such as gold, sterling silver, pure copper, and aluminum.
- Complete Accessories
This gold smelter furnace set includes a graphite crucible, crucible tongs, a power cable, and protective gloves. We provide everything you need to ensure your security.
Advantages
Graphite Crucible Mini Metal Melting Furnace Advantages
- Compact Size
Mini metal melting furnaces are small and portable, making them ideal for use in limited spaces, workshops, or even at home. Their compact size also allows for easy storage when not in use. - Easy to Use
These furnaces are designed to be user-friendly, often equipped with simple controls and interfaces, making them accessible even to beginners. - Rapid Melting
Mini furnaces can achieve high temperatures quickly, enabling fast melting of metals and reducing the overall processing time. - Energy-Efficient
Due to their smaller size and better insulation, mini furnaces can be more energy-efficient than larger industrial furnaces. They consume less power to heat up, which can help save on energy costs.
- Versatility
Mini metal melting furnaces are capable of melting a variety of metals, such as gold, silver, copper, aluminum, and more. They can handle both ferrous and non-ferrous metals, providing flexibility for different projects. - Precise Temperature Control
Many mini furnaces come with temperature control features that allow users to accurately adjust and maintain the desired melting temperature. - Cost-Effective
Compared to large industrial furnaces, mini metal melting furnaces are generally more affordable, making them an economical choice for small businesses, artisans, and hobbyists.
Structures & Working Principle

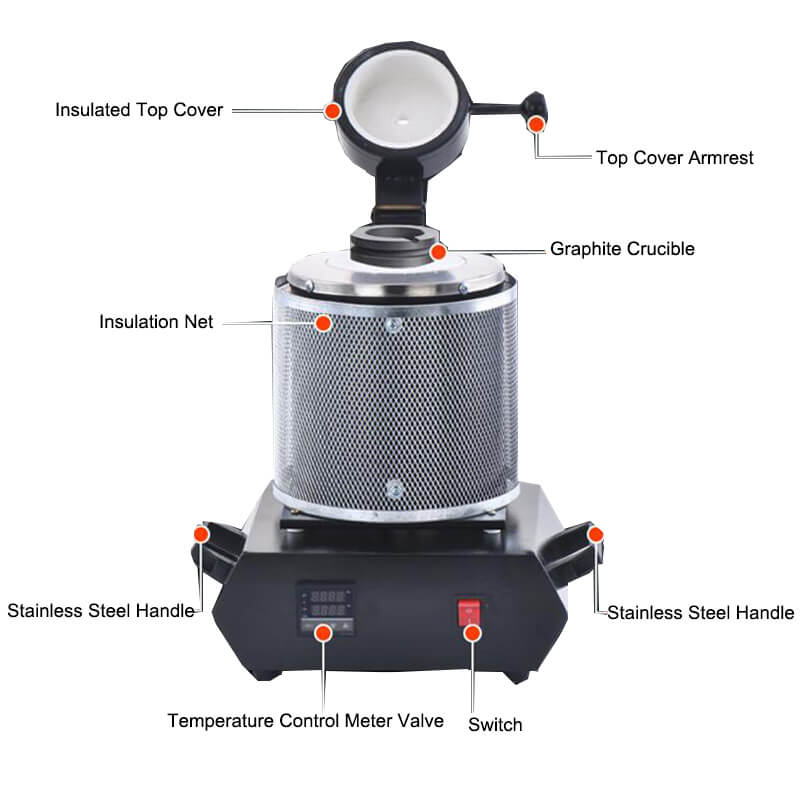

Graphite Crucible Mini Gold Melting Furnace Structure
The portable gold melting furnace is primarily composed of an insulated top cover, a top cover armrest, a graphite crucible, an insulation net, a stainless steel handle, a temperature control meter valve, a switch, and other components.
Graphite Crucible Mini Gold Melting Furnace Working Principle
The gold melting furnace’s principle is the process of instantly melting, purifying, and casting precious metals through the crucible container. It uses frequency conversion electromagnetic induction heating or induction heating for short to heat molten metal. The principle of the gold melting furnace is to convert the industrial frequency power supply into a specific frequency band power supply to heat the metal material.
Technical Parameters
Gold Melting Furnace Parameters
| Model | Standard | Enhanced Version With Net |
| Voltage (V) | 110/220 | 110/220 |
| Power (W) | 1450 | 1650 |
| Maximum Temperature (℃) | 1150 | 1150 |
| Melting Time (min) | 40-48 | 40-48 |
| Size (cm) | 44*31*33 | 44*33*37 |
| Weight (kg) | 9 | 10 |
Processing Capacity of Melting Furnace
| Metal | Density(g/cm3) | Capacity(kg) | ||
| Gold(Au) | 19.3 | 1 | 2 | 3 |
| Silver(Ag) | 10.5 | 0.5 | 1 | 1.5 |
| Copper(Cu) | 8.9 | 0.46 | 0.9 | 1.38 |
| Iron(Fe) | 7.86 | 0.4 | 0.8 | 1.2 |
| Aluminum(Al) | 2.7 | 0.05 | 0.28 | 0.42 |
