The extraction of sulfur from pyritic coal gangue represents a transformative opportunity in both industrial and environmental sectors. Once dismissed as mere mining waste, coal gangue is now being reevaluated as a lucrative and ecologically beneficial resource, particularly amid tightening global sulfur supplies. With sulfur prices soaring and environmental regulations becoming more stringent, the efficient recovery of sulfur from coal gangue offers a dual advantage—turning a waste burden into a profitable commodity while mitigating pollution risks. This article explores the economic feasibility, environmental benefits, and optimal processing techniques for extracting sulfur from coal gangue, providing actionable insights for mining enterprises, resource developers, and policymakers.
Unlocking the Core Value of Sulfur Extraction from Pyritic Coal Gangue
1. Economic Value: From Industrial Waste to “Hidden Gold Mine”
Since 2026, the global sulfur market has experienced a tightening supply, driving a sustained price surge in sulfur-based products such as sulfur, sulfuric acid, sulfur concentrates, and pyrite. By April 2026, the benchmark price of sulfur in China had soared beyond 6,000 RMB per ton, while sulfuric acid prices doubled compared to previous levels.
Against this bullish market trend, pyritic coal gangue—once regarded as a “solid waste burden” in the coal industry—has been rapidly re-evaluated as a high-potential resource with remarkable commercial viability. With rich sulfur content, coal gangue is transforming into a strategic reserve that can substantially reduce reliance on traditional sulfur sources, reshaping the dynamics of the mineral resource market.
2. Environmental Significance: A Green Revolution in Coal Mining
Beyond economics, extracting sulfur from coal gangue offers critical environmental benefits:
- Land Occupation Reduction: Large stockpiles of coal gangue occupy vast mining areas, degrading land usability. Extraction mitigates this issue.
- Prevention of Spontaneous Combustion: Pyrite-rich gangue is prone to self-ignition, releasing SO₂ and other hazardous gases. Removing sulfur reduces fire risks, improving air quality.
- Reduction of Acid Mine Drainage (AMD): When exposed to air and water, sulfur-bearing gangue generates acidic leachate, contaminating soil and groundwater. Sulfur recovery cuts down this pollution source. This process aligns with the green transitionof coal enterprises, supporting circular economy models and sustainable mining practices.
By converting waste into wealth, sulfur extraction from coal gangue delivers dual benefits—fueling economic growth while protecting ecosystems, marking a vital step toward cleaner industrial processes.
Economic Threshold and Process Selection for Sulfurization
Not all sulfur-containing coal gangue is worth large-scale sorting. The core prerequisite for project profitability is accurately matching the recovery process to the sulfur content of the raw ore, avoiding blindly investing in equipment and incurring cost losses. Based on current sulfur prices and beneficiation costs, the development value and process selection for coal gangue with different sulfur grades can be divided into three categories:
1. Sulfur content below 6%: Limited economic value, not recommended for separate recovery.
For coal gangue with a sulfur content below 6%, the economic benefits of extracting sulfur concentrate separately are extremely low. Investing in large-scale production lines specifically for sulfur extraction is likely to result in costs exceeding returns.
For this type of material, it is recommended to prioritize “overall resource utilization,” with two core directions: first, focusing on carbon extraction and sulfur reduction, prioritizing the extraction of high-calorific-value carbon powder to achieve initial value-added; second, reducing the sulfur content of the tailings after sorting to below 1%, enabling safe utilization as roadbed sand and gravel for mixing plants and as building materials.
Simplified Process: A basic separation process using coal gangue sand making + jig + spiral sluice box is sufficient, eliminating the need for complex sulfur extraction lines.
2. Sulfur Content Above 10%: Stable Recovery Value, Gravity Separation is the Mainstream Process.
When the sulfur content of coal gangue exceeds 10%, it possesses a clear large-scale recovery value. High-grade sulfur concentrate meeting industrial standards can be stably produced, with a considerable overall sulfur recovery rate. Under current sulfur price conditions, profit margins are stable.
The dominant process for this type of material is gravity separation. The core equipment includes spiral sluice boxes and jigs. Multiple separations using spiral sluice boxes yield high-grade sulfur concentrate. Supplementing with 1-2 scavenging operations significantly improves the overall sulfur recovery rate. Fine grinding is not recommended for this grade range. Firstly, grinding significantly increases production costs; secondly, excessively fine grinding can impair gravity separation. Furthermore, blindly adding flotation processes will also lead to a substantial increase in beneficiation costs, squeezing project profit margins. Before commissioning, multiple rounds of ore beneficiation experiments must be completed. The process design should be based on the experimental results to ensure that the recovery rate and yield achieve the expected economic benefits.
3. Sulfur content greater than 15%: High-value rich ore, requiring full-process “complete recovery.”
Coal gangue with a sulfur content exceeding 15% is a high-value mineral resource with extremely significant comprehensive recovery benefits. The entire production line can be designed around “maximum sulfur recovery,” without excessively reducing equipment investment. A complete and efficient combination of processes should be used to maximize the recovery of pyrite of different particle sizes.
A combined process of “gravity separation + flotation” is recommended: An eight-chamber jig + shaking table combined gravity separation process efficiently recovers coarse-grained pyrite; a flotation process is used for deep recovery of ultrafine sulfur, minimizing sulfur resource loss and improving the overall project profitability.
Mature and Mass-produced Process Flow for Coal Gangue Separation and Sulfur Concentrate
100T/H Coal Gangue Separation and Sulfur Concentrate Process
The overall process route is: crushing and screening + classification + jigging roughing + shaking table cleaning + fine flotation + dewatering and dry discharge.
The overall sequence of the entire process is as follows: Raw material stockpile → Feeder → Coarse jaw crusher → Fine impact crusher → Circular vibrating screen classification → Three-way separation by particle size → Concentrate collection and dewatering → Finished product stockpile; Tailings collection throughout the entire process → Thickening and dry discharge → Resource utilization.
This process is a mature, implemented solution with large-scale production capabilities, suitable for a processing capacity of 100 tons/hour. Targeting the characteristics of raw ore such as large coal gangue and intercalated lumpy/granular pyrite (primarily coarse to medium particle size with a small amount of fine mud), it can produce sulfur concentrate with a sulfur content of 38%–45%. After the tailings meet the sulfur content standards, they can be directly used as raw materials for brick making and cement production, achieving full resource utilization of solid waste.
The Details Process Flow Steps
Section 1: Raw Material Feeding and Crushing
The core objective of this section is to achieve complete individual separation of pyrite and coal gangue, while simultaneously classifying them according to particle size. This allows for the adaptation of specific sorting processes for different particle sizes, preventing sulfur resource loss and ensuring a stable processing capacity of 100 t/h.
- The self-unloading raw material stockpile uses a plate feeder to achieve uniform feeding, precisely controlling the feed rate to remain stable at 100t/h, avoiding material blockage and interruption.

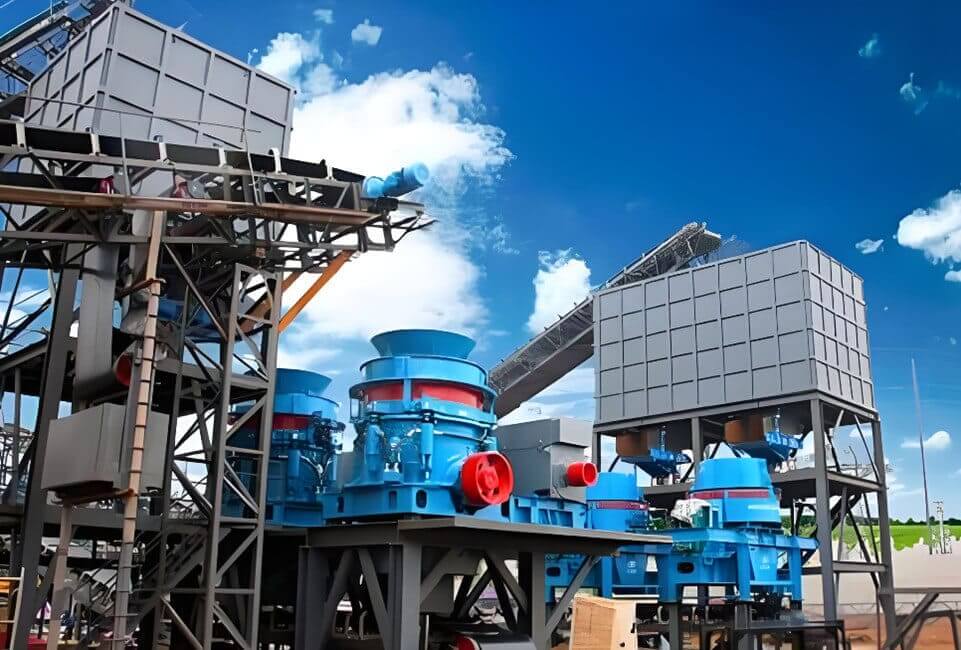

- The primary crushing stage uses a jaw crusher to crush raw ore from 0-500mm to 0-80mm in a single pass.
- The ore then enters the secondary crushing stage via belt conveyor, where an impact crusher crushes the material to 0-30mm, completing the individual separation of pyrite and coal gangue.
- A three-layer closed-circuit circular vibrating screen is used for grading, with screen apertures of 30mm, 5mm, and 0.1mm. Larger pieces >30mm are returned to the secondary crusher via belt conveyor, forming a closed-circuit crushing cycle. Coarse particles (30-5mm), medium particles (5-0.1mm), and fine mud particles (-0.1mm) are then sent to their respective sorting sections.
Section 2: 30-5mm Coarse Grain Separation(Main Production Section)
This section is the main production section for sulfur concentrate. The core equipment consists of 2-3 parallel sawtooth wave jigs, suitable for a processing capacity of 100t/h.
The core principle utilizes the density difference between pyrite and coal gangue. Through alternating water flow pulsating and loosening the bed, the denser pyrite settles to become concentrate, while the less dense gangue floats and is washed away as tailings.
After the 30-5mm particles enter the jigs, the underflow coarse sulfur concentrate is transported to a shaking table for further refining and grade improvement. The overflow tailings are directly collected in the tailings dry discharge section.
This process features high processing capacity, low operating costs, and strong adaptability to various operating conditions, making it the core capacity support for a 100t/h production line.
Section 3: 5-0.1mm Medium-Grained Separation
This section employs a combined process of “spiral sluice pre-selection + 6-S shaking table fine selection” to achieve efficient purification of medium-grained pyrite.

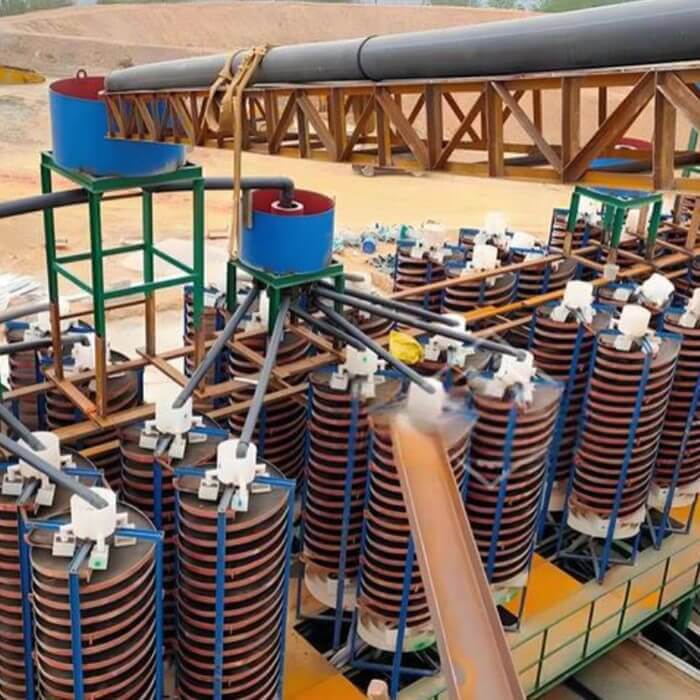

First, the 5-0.1mm slurry is fed into the spiral sluice. Through the combined action of centrifugal force and gravity, the heavy mineral pyrite is concentrated towards the inside of the sluice, while the light gangue is discharged from the outside, completing the pre-selection. The rough concentrate produced from the spiral sluice is fed into the 6-S shaking table. Through the reciprocating motion of the table surface and the separation effect of lateral water flushing, the grade of the pyrite concentrate is purified to over 40%. The tailings from the shaking table are incorporated into the overall tailings system.
Section 4: -0.1mm Fine Sludge Classification (Fine-Grain Sulfur Recovery)
Fine-grain pyrite cannot be effectively recovered through gravity separation. This section employs flotation to recover fine-grain sulfur resources, avoiding resource waste caused by sulfur loss from the fine sludge.
The core process is as follows: Fine sludge slurry is fed into a mixing tank, and reagents are added simultaneously to condition the slurry. It then enters the flotation machine to complete the entire process of roughing → cleaning → scavenging. The standard reagent dosing regimen is as follows: xanthate is used as the collector, pine oil as the frother, and a small amount of lime is added to adjust the slurry pH and inhibit gangue flotation.
The separation principle is that through reagent control, the surface of pyrite becomes hydrophobic and is adsorbed by air bubbles to float as concentrate, while gangue and ore sink to become tailings. The flotation concentrate is incorporated into the overall concentrate system, and the flotation tailings are sent to the tailings pond.
Section 5: Centralized Dewatering of Sulfur Concentrate
All jigging, shaking table, and flotation concentrates are collected and first sent to a concentrate thickener for natural settling. The high-concentration slurry from the thickener is then sent to a plate and frame filter press for dewatering, ultimately producing dry sulfur concentrate with a moisture content of 10%–14%, which can be directly loaded and sold. All supernatant from the thickener is recycled, achieving zero discharge of production water.
Section 6: Tailings Dry Discharge
All tailings from the jigging, shaking table, and flotation processes are collected and sent to a tailings thickener for settling. After settling, the tailings are dry-discharged using a tailings dry discharge screen or a tailings filter press. The dry tailings can be directly sold for use in coal gangue brick making, cement admixtures, and underground backfill material, solving the problem of solid waste environmental disposal and achieving secondary value-added without environmental compliance pressure.
Conclusion
The potential of sulfur recovery from coal gangue extends far beyond waste management—it is a strategic move toward sustainable resource utilization. By implementing the right beneficiation processes based on sulfur content, mining companies can unlock significant economic returns while fulfilling environmental responsibilities. Whether through gravity separation for medium-grade gangue or a combined “gravity-flotation” approach for high-grade deposits, the technology exists to maximize recovery efficiency and profitability. Ultimately, integrating sulfur extraction into coal waste recycling not only strengthens mineral supply chains but also aligns with the global push for greener industrial practices. As the demand for sulfur continues to rise, coal gangue may well transition from an overlooked byproduct to a cornerstone of circular mining economies.
