Mineral processing screening machinery might seem simple, but it’s actually a critical piece in the mining puzzle. Many people think it’s just about separating big rocks from small ones. The truth is far more complex and fascinating.
Screening machinery is specialized equipment used to separate mineral particles by size in processing plants. It works by using vibrating screens, grizzlies, or trommels to classify materials based on particle size distributions. These machines ensure proper material sizing before further processing, directly impacting final product quality and overall plant efficiency.
When I first saw a screening machine at work, I realized how much engineering goes into what looks like simple vibration. The precise movements create perfect separation patterns that human hands could never match. Let’s explore why this equipment matters so much in mineral processing.
What Role Does Screening Machinery Play in Mineral Processing?
Screening often gets overlooked in favor of flashier equipment like crushers or flotation cells. Screening equipment is a grading device that separates mixed materials of varying sizes into different grades according to particle size requirements. It is not an optional auxiliary device, but rather a “bridge” between the three major processes of crushing, grinding, and beneficiation. Without proper screening, entire processing plants would struggle to maintain consistent output quality.
Screening machinery serves three primary functions: size separation (classifying materials), scalping (removing oversize material), and dewatering (removing water from concentrates). Proper screening ensures downstream processes receive correctly sized material, prevents equipment damage from oversize particles, and improves overall plant efficiency by 15-30%.
The unsung hero of mineral processing
When we examine screening deeper, we find it impacts every subsequent step:
- Pre-screening: Before the ore enters the crusher, fine particles that already meet the size requirements are screened out to prevent them from being processed along with the larger ore pieces. This significantly increases the crusher’s throughput, prevents over-grinding of the fine particles, and reduces energy consumption and wear.
- Check the screening: After crushing is complete, the product undergoes a screening process to remove any oversized particles, which are then returned to the crusher for further processing. This step directly determines whether the crushed product meets specifications and is critical to ensuring the stability of subsequent processes. Such as crushing circuits depend on screens to determine when material is properly reduced; Grinding operations need correctly classified feed to prevent over-grinding.
- Final screening: In some processes, screening directly supplies material with precise particle size to the separation operations, enabling processes such as magnetic separation, flotation, and gravity separation to operate under optimal particle size conditions, thereby improving recovery rates and concentrate grades. Separation processes require precise size ranges for optimal recovery.
The table below shows how improper screening affects downstream processes:
| Screening Issue | Downstream Impact |
| Oversize leakage | Equipment damage, process interruptions |
| Undersize bypass | Reduced recovery rates |
| Moisture content | Handling problems, storage issues |
It can be said that without stable and efficient screening, all subsequent processes will be hindered; this is the true significance of screening machinery in the mineral processing workflow.
What Are The Mainstream Types of Screening Equipment and What Are Their Basic Characteristics?
Walk through any modern processing plant, and you’ll encounter various screening solutions. Each type serves specific purposes based on material characteristics and production requirements.
The four main types are vibrating screens (most common), grizzly screens (for coarse material), trommel screens (for wet/sticky ore), and banana screens (high capacity). Vibrating screens account for over 70% of installations due to their versatility, with deck configurations ranging from single to quadruple layers for multi-stage classification.
Basic Characteristics of Screening Equipment
Let’s break down each type’s characteristics:

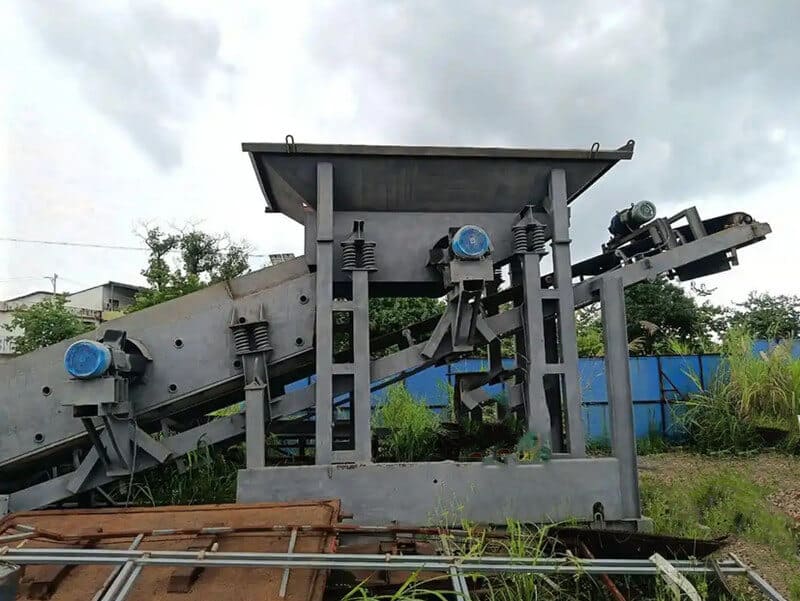

1. Vibrating Screens
- Linear or circular motion patterns
- Frequency ranges: 700-3600 RPM
- Handling capacity: 50-1000 tph
- Best for: Dry materials, precise sizing
2. Grizzly Screens
- Static or vibrating bars
- Opening size: 50-300mm
- Slope: 20-50 degrees
- Best for: Primary screening, scalping

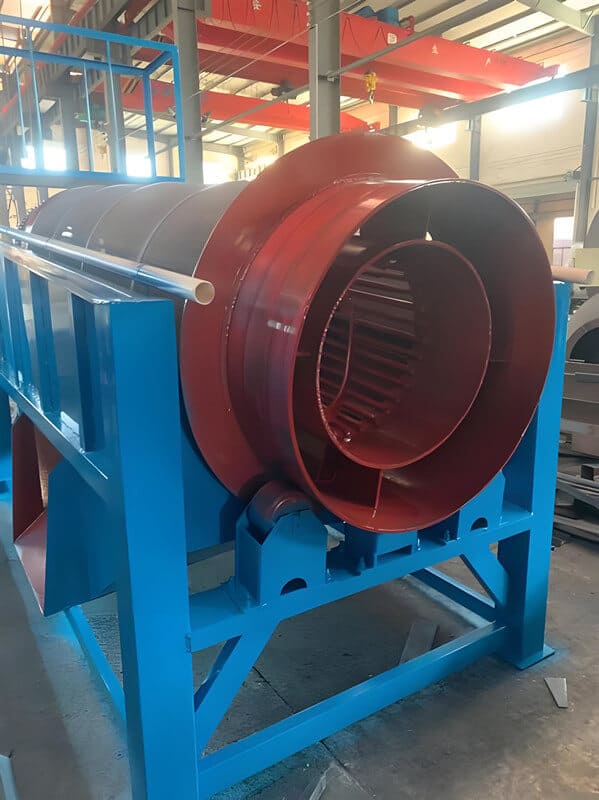

3. Trommel Screens
- Rotating cylindrical design
- Speed: 10-20 RPM
- Liner types: Rubber, steel, polyurethane
- Best for: Wet materials, sticky ores

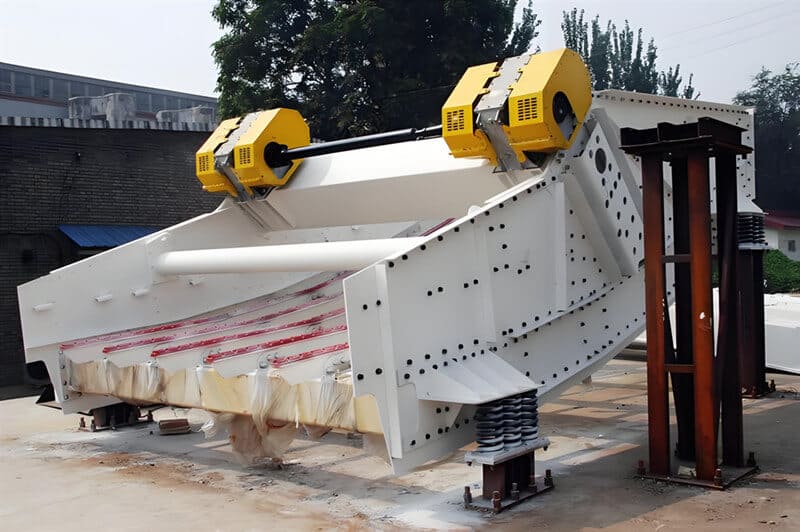

4. Banana Screens
- Deck angles: Variable (5°-25°). Angled decks minimize particle trapping; Progressive angle changes maintain particle separation.
- Capacity: High (130% std.), steeper initial slope accelerates material movement
- Footprint: Compact
- Applications: Bulk materials, high throughput
What Are The Three Key Indicators for Measuring Screening Efficiency?
Evaluating screening performance isn’t about how fast material moves through the machine. True efficiency metrics reveal how well the equipment performs its core classification function.
The three key indicators are screening efficiency (percentage of properly sized material reporting to the correct product), capacity (tons processed per hour per square meter), and misplacement (incorrect particle size reporting to products). Industry standards consider 90-95% efficiency as excellent performance for most applications.
Understanding What The Numbers Mean
1. Screening Efficiency
- Formula: (Actual undersize in undersize product)/(Theoretical undersize in feed) × 100%
- Benchmark: 85% minimum for most operations
- Affected by: Moisture content, near-size particles
Screening efficiency is the most critical performance indicator; it refers to the ratio of the actual weight of the undersize material to the weight of the particle size fraction that was originally smaller than the screen mesh size. Simply put, it measures “how much of the material that should have been screened out was actually screened out.” The higher the efficiency, the more thorough the screening, and the less fine material is carried over in the oversize fraction.
2. Capacity
- Typical range: 5-50 tph/m²
- Key factors: Screen opening size, material density
- Trade-off: Higher capacity often reduces efficiency
Processing capacity refers to the weight of material a screening machine can process per unit of time. It is directly related to the screen area, amplitude, frequency, mesh size, and material properties. Processing capacity determines whether the screening machine can keep pace with the production line, and it is a fundamental parameter that must be calculated during the selection process.
3. Misplacement
- Causes: Screen blinding, improper vibration
- Impact: Downstream process contamination
- Solution: Regular maintenance checks
The particle size compliance rate refers to the proportion of material in the screened product that meets the target particle size requirements. This indicator directly affects subsequent crushing and grinding operations; if the non-compliance rate is too high, it can lead to fluctuations in crusher load, reduced grinding efficiency, and even impact the final beneficiation performance.
What Are The Basic Principles for Selecting Screening Machinery?
Choosing screening equipment isn’t about picking the biggest or fastest option. The ideal machine matches your specific ore characteristics and processing goals.
Selection follows four principles: feed characteristics dictate machine type (sticky ores need trommels), required capacity determines size, desired efficiency guides technology choices, and site conditions influence installation format (dry/wet). Always conduct material testing before final selection to verify equipment suitability.
A Systematic Approach to Selection
We follow this decision matrix when advising clients:
| Factor | Considerations | Options |
| Material | Size distribution, moisture, and abrasiveness | Test sieve analysis |
| Process | Pre-crushing, final product screening | Single/multi-stage |
| Operation | Continuous/batch, automation needs | Control system specs |
| Maintenance | Access requirements, wear parts | Quick-release mechanisms |
Key questions to answer:
- What’s your target product size range?
- How does the material behave during screening (sticky, abrasive)?
- What’s your required hourly throughput?
- What’s your planned maintenance frequency?
Conclusion
Screening machinery forms the backbone of efficient mineral processing operations. From fundamental classification to protecting downstream equipment, these systems deliver precision sizing critical for maximizing recovery rates. Understanding screening types, efficiency metrics, and selection principles helps operations choose and maintain optimal equipment. Whether using vibrating screens for dry classification or trommels for wet applications, proper screening ensures smooth plant operation and consistent product quality that meets market specifications.
