JXSC has successfully delivered a 50TPH alluvial chrome beneficiation plant in Zimbabwe. We designed the processing plant flowchart and plant layout drawing in accordance with the client’s requirements. We provided a complete set of plant machines to the mine site. Upon installation, the client requested technical support from our team. In response, we dispatched engineers to provide on-site guidance—though the client already had their own engineering team, they sought additional expertise when needed. Currently, the plant is operating smoothly under normal conditions.
EPCS
Engineering, Procurement & Construction Services
Case Study: Alluvial Chrome Processing Plant Project
Project Overview
Minerals
Alluvial Chrome
Capacity
50 TPH
Feed Size
≤ 50 mm
Location
Zimbabwe
Year
2025
Project Process
Solutions & Process
We are delivering a 50TPH alluvial chrome washing plant to a licensed mine owner in Zimbabwe. The plant is designed to upgrade low-grade chrome ore (25-27% Cr₂O₃) to a marketable 48% chrome concentrate while addressing iron contamination through integrated magnetic separation.
Raw Ore Conditions & Design Basis
| Parameter | Specification |
|---|---|
| Processing Capacity | 50 TPH |
| Max. Feeding Size | ≤50 mm |
| Ore Type | Alluvial chrome (non-sticky soil) |
| Target Concentrate Size | 0-2 mm |
| ROM Chrome Grade | 25-27% Cr₂O₃ |
| Target Concentrate Grade | ≥48% Cr₂O₃ |
| Special Consideration | Magnetic separator for Cr/Fe ratio control |

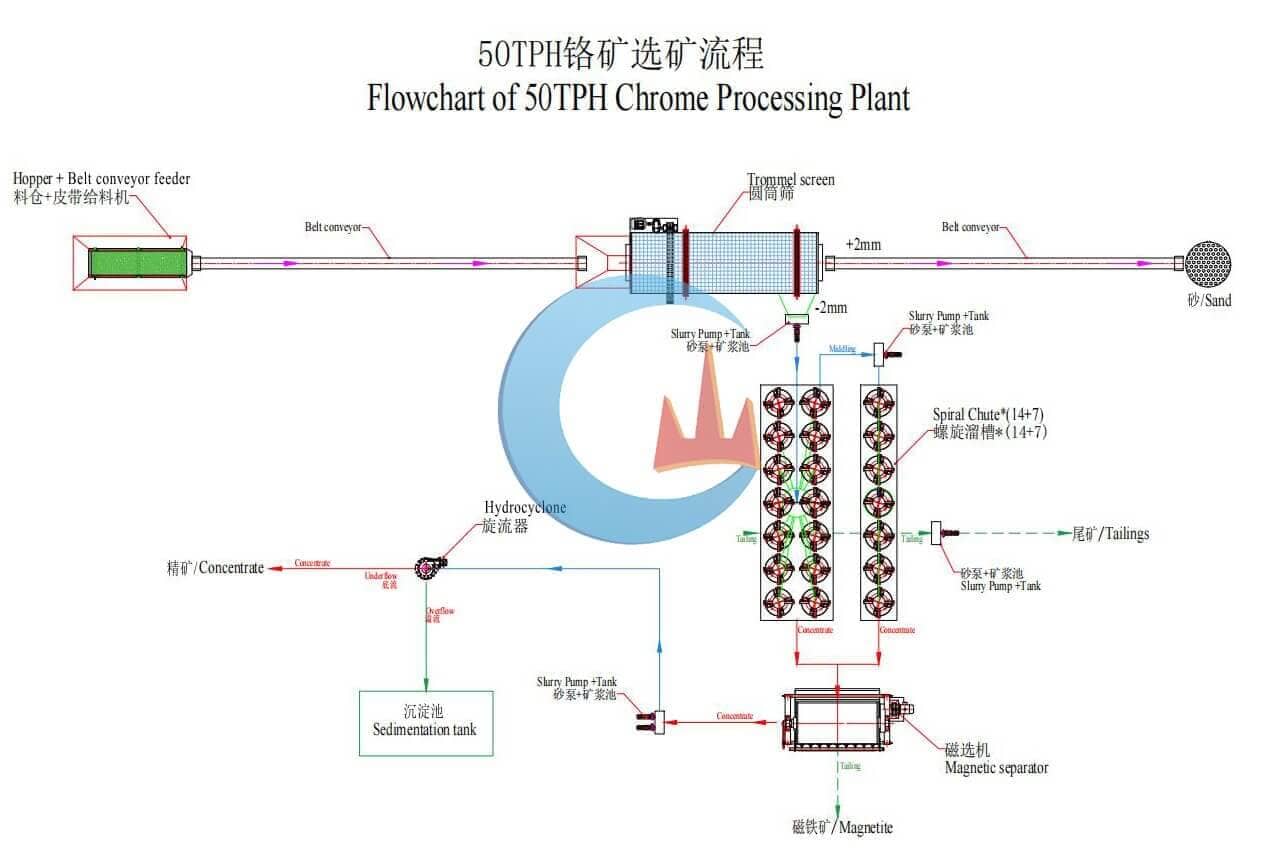

Process Flowchart
Process Design Solution
Stage 1: Primary Screening & Classification

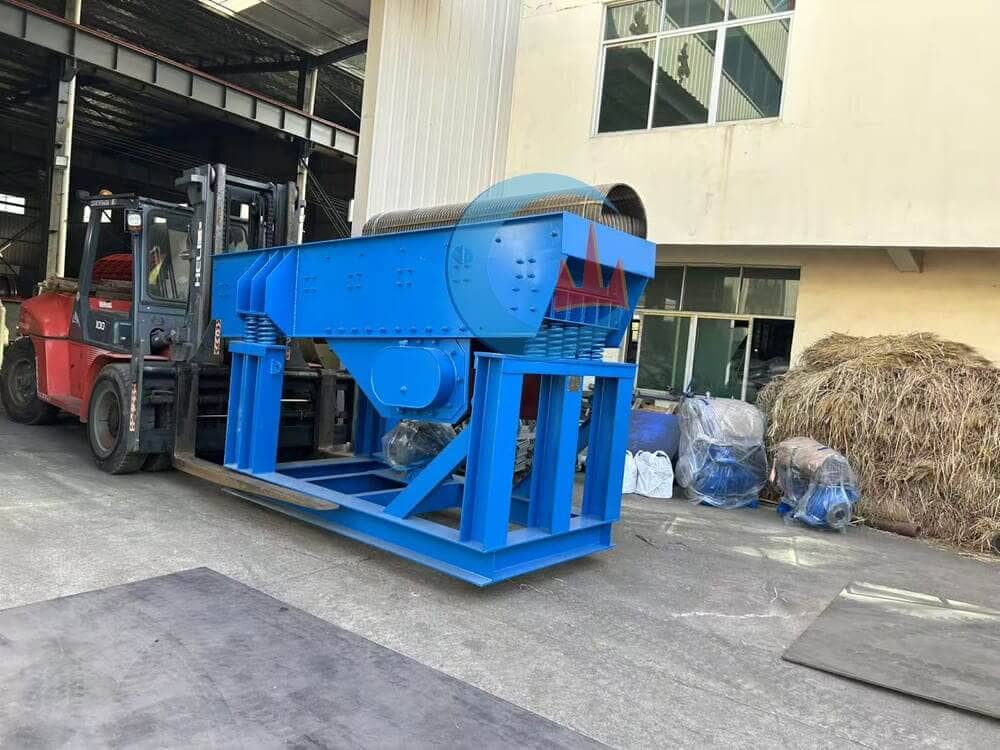

- Feeding: ROM ore is dumped into a grizzly-hopper (40mm spacing) to remove oversize waste (stones/roots).

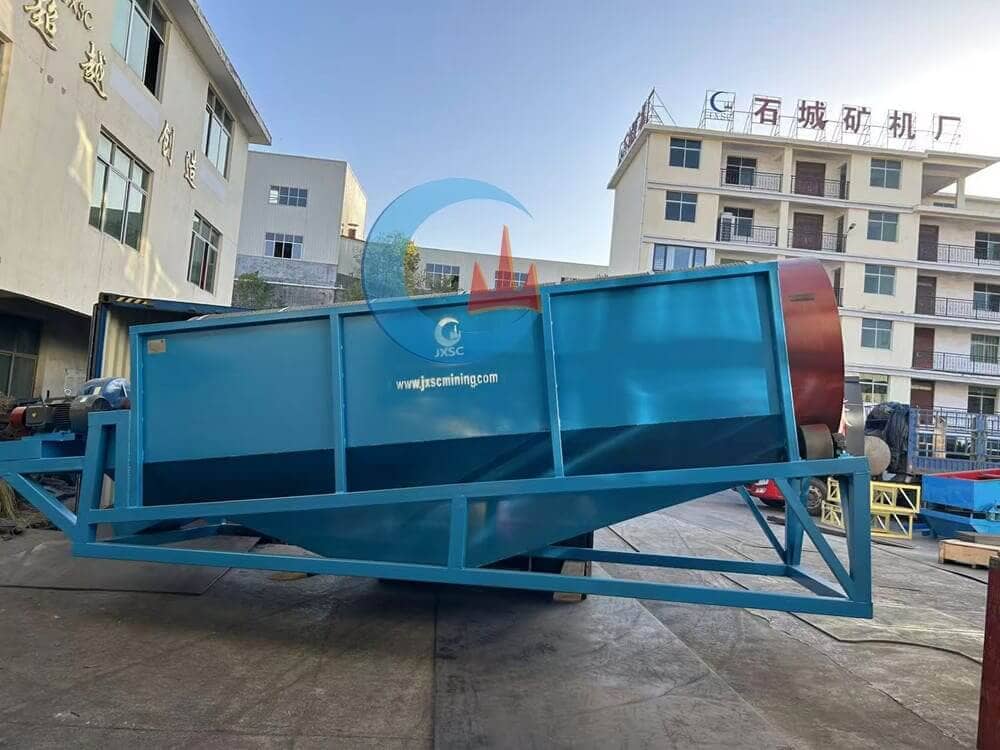

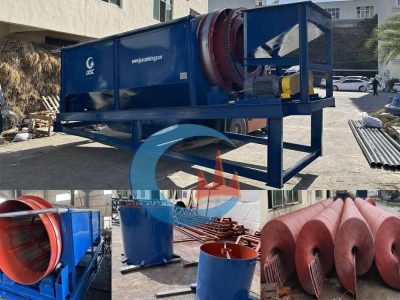

- Trommel Scrubbing: Sub-40mm material enters a wet trommel screen (2mm aperture) for:
- Soil flushing & disaggregation
- Size split: 0-2mm (chrome-bearing) vs. +2mm (waste conveyed to stockpile)
Stage 2: Gravity Concentration
- Spiral Chute Beneficiation:
- Rougher Spirals: Primary upgrade of 0-2mm slurry to discard low-density impurities.
- Cleaner Spirals: Secondary processing of rougher middlings to boost recovery rate.
Stage 3: Iron Removal & Product Finishing
- Magnetic Separation: Concentrate from spirals passes through a dry/wet magnetic separator to reduce Fe content and optimize Cr/Fe ratio.
- Dewatering: Final concentrate is dewatered via a hydrocyclone for storage/transport.
Process Features & Advantages
- Proven Technology: Combines screening, gravity + magnetic separation for reliable performance.
- Grade Control: Dual-stage spirals + iron removal ensure consistent 48% Cr₂O₃ concentrate.
- Low Operating Cost: Water recycling system minimizes consumption; modular design reduces maintenance.
- Tailings Management: Waste streams are sorted for environmental compliance.
This alluvial chrome solution has been successfully deployed in African markets, offering high ROI with <12-month payback periods.
Optional Upgrades:
- High-intensity magnetic separator for ultra-low Fe requirements
- Concentrate drying system for direct shipment
Customer Questions & Our Answers
1. Can you conduct beneficiation tests at your factory before production?
Yes, we provide comprehensive beneficiation testing in our in-house laboratory:
- 200kg sample processing capacity per test batch
- Multi-stage analysis: Scrubbing → Gravity separation → Magnetic separation
- Data reporting: Detailed recovery rates, grade uplift metrics, and tailings analysis
- Process optimization: Test results determine ideal screen apertures/spiral configurations for your specific ore
2. What is the expected recovery rate for this chrome wash plant?
50-60% recovery rate under standard feed conditions (25-27% Cr₂O₃ ROM), achievable through:
- Dual-stage spiral separation (Rougher + Cleaner = +8% recovery vs single-stage)
- Targeted waste rejection: Trommel screen removes 100% of +2mm waste upfront
- Iron removal efficiency: Magnetic separator boosts effective Cr recovery by reducing Fe dilution
Note: Recovery may vary ±5% depending on clay content and liberation degree.
3. What final concentrate grade can your wash plant achieve?
Guaranteed 48%+ Cr₂O₃ concentrate from 15-20% ROM ore via:
- Precision classification: 2mm trommel screening ensures optimal feed for spirals
- Gravity upgrading: Two-stage spirals produce 42-45% intermediate concentrate
- Magnetic purification: Removes ferrous contaminants to push grade to target 48%
4. How do you address iron contamination in chrome ore?

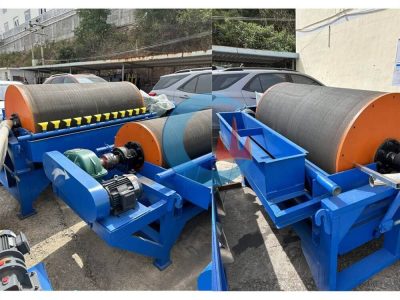

Drum-type wet magnetic separator (1600-2000 Gauss) with:
- Adjustable intensity: Handles variable Fe content (3-8% in feed)
- Counter-current tank design: Maximizes Fe recovery (>90% iron removal efficiency)
- Low maintenance: Ceramic magnet assembly resistant to chrome abrasion
Optional: High-intensity roll separator (3000+ Gauss) for ores requiring Cr/Fe ratio >2.5

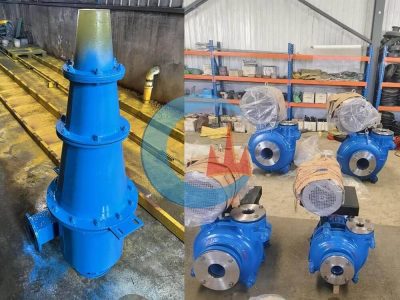

5. What dewatering solutions do you offer for spiral wash plants?
Hydrocyclone cluster (3-stage) with 85-90% water recovery:
- Capacity matched: Handles 50TPH slurry flow at 30-35% solids density
- Energy efficient: 7.5kW pump requirement vs 22kW for filter presses
- Compact footprint: 2m² installation space vs traditional thickeners
Upgrade available: Vibrating screen + centrifuge for <8% moisture in final concentrate
