From Theory to Practice
Building upon our foundational understanding of spiral chutes as space utilization experts, this article transitions from conceptual benefits to practical deployment strategies. As modern industries face ever-increasing space constraints, these helical conveyance systems emerge as silent heroes in vertical space optimization. Understanding where and how to effectively deploy spiral chutes can unlock significant operational advantages. This article examines the diverse applications, inherent strengths and limitations, as well as optimal configuration approaches for these space-saving spiral chutes.

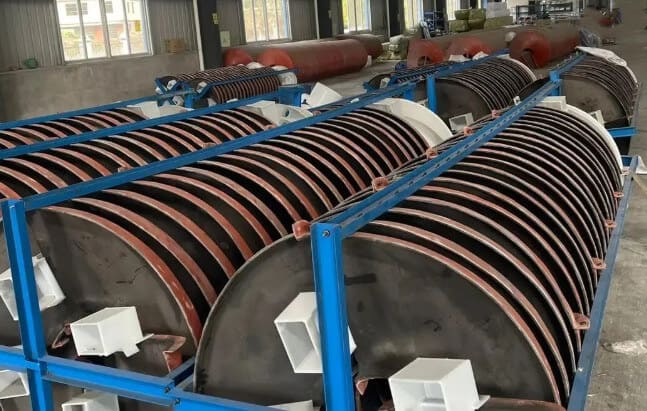

Part 1: Where Spiral Chutes Excel - Targeted Applications
– Scope of Application and Typical Use Cases for Spiral Chutes
As gravity separation equipment in the field of ore sorting, spiral chutes demonstrate outstanding performance across various mineral processing applications, thanks to their unique structural advantages. The following is a detailed analysis presented from a professional operational perspective:
1. Applicable Minerals and Particle Size
Applicable Minerals: All minerals with a density difference greater than 1 g/cm³, including gold (placer gold), tungsten, tin, ilmenite, rutile, zircon, monazite, chromite, manganese ore, etc. It is also widely used for the separation and desliming of coal and non-metallic minerals.
Optimal Separation Particle Size: 0.03-0.3 mm, this is the core advantageous particle size range for spiral sluices; for coarse-grained minerals (+0.5 mm), jigging is likely to occur, resulting in poor separation efficiency; for ultrafine-grained minerals (-0.02 mm), insufficient centrifugal force leads to a significant decrease in recovery rate.
2. Typical Application Scenarios
Reaching Placer/River Placer Roughing: This is the primary application area for spiral sluices. Dozens or even hundreds of units can be installed at high density for large-scale placer processing, removing over 90% of gangue.
Scavenging and Tailings Recovery in Large-Scale Beneficiation Plants: Configuring rows of spiral sluices in flotation and gravity separation tailings recovers coarse-grained single valuable minerals, increasing the overall metal recovery rate by 3%-8%.
Pre-enrichment of Low-Grade Ores: For low-grade ilmenite and zircon ores, spiral sluices are used for pre-enrichment, increasing the grade by 3-5 times before subsequent cleaning operations, reducing overall beneficiation costs.
Mobile Beneficiation Station Support: Due to its lightweight, simple structure, and lack of power requirements, it is particularly suitable for integration with mobile crushing and screening equipment to form a mobile placer beneficiation production line.

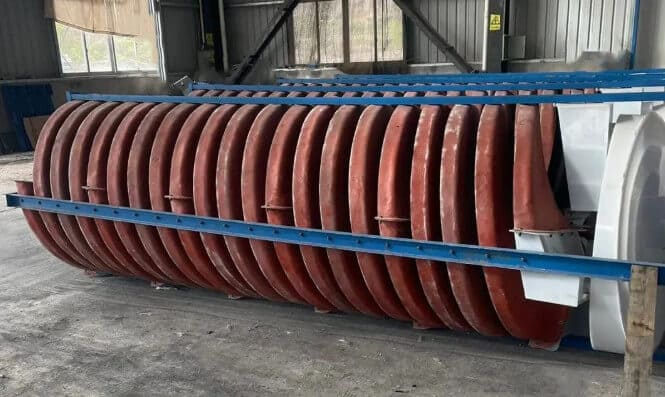

Part 2: The Efficiency Equation - Advantages vs. Limitations
– Analysis of the Advantages and Disadvantages of Spiral Chutes
Balancing performance with practical constraints, every material handling solution presents trade-offs. Spiral chutes offer unique operational advantages that must be weighed against their limitations:
1. Core Advantages of Spiral Chutes
Extreme Space Utilization: When densely installed, the unit area processing capacity is 25-100% of that of a single-layer shaking table. The separation efficiency is 6-24 times that of a four-layer shaking table, unmatched by any other gravity separation equipment.
Extremely low operating cost: No moving parts, no motor, no lubricating oil consumption; annual maintenance costs are negligible.
Large processing capacity: Through high-density installation, a processing capacity of hundreds of tons per hour can be achieved in a limited space.
Simple operation and maintenance: No professional technicians are required; workers only need to periodically check the tank surface wear and adjust the separating baffles.
Strong adaptability: Good adaptability to fluctuations in slurry concentration and feed rate; even with a feed rate fluctuation of ±30%, the separation effect will not significantly decrease.
Good environmental performance: No noise, no vibration; tailings water can be directly recycled, with no secondary pollution.
2. Limitations and Shortcomings of Spiral Chutes
Lower separation accuracy and recovery rate: Cannot be compared with shaking tables; concentrate grade is usually lower, requiring subsequent fine selection using shaking tables, centrifuges, etc.
Narrow particle size adaptation range: Only suitable for 0.03-0.3mm. It has good separation effect for medium and fine-grained minerals, but is not suitable for coarse and ultrafine particles.
The equipment is relatively tall: the total height of a single φ1200 spiral chute is about 3.5-4m, and φ2000 is about 5-6m, requiring a high floor height in the plant.
Mineral separation adjustment is cumbersome: the mineral separation baffles need to be manually adjusted in real time according to the separation zone, resulting in a low degree of automation.
It has a poor separation effect for minerals with small density differences: when the density difference between two minerals is less than 1g/cm³, it is difficult to achieve effective separation.
3. Technical and Economic Comparison Table
| Indicator | Spiral Chute | Shaking Table | Centrifugal Concentrator |
| Electricity consumption per tonne of ore (kWh) | 0.8-1.2 | 2.5-3.5 | 4.0-5.5 |
| Recovery rate for -0.074 mm | 65-75% | 55-65% | 80-85% |
| Equipment footprint(m²/t·h) | 0.3 | 1.2 | 0.5 |
| Frequency of manual adjustment | Low (automatic classification) | High (continuous stroke adjustment required) | Medium (preset parameters) |
Part 3: Engineering Excellence - Configuration Best Practices
– Practical Process Configuration Recommendations for Spiral Chutes
Translating principles into proper spiral chute integration performance follows three fundamental engineering commandments:
1. Basic Configuration Principles
“Three-Match” Rule
- Particle Size Match: Optimal efficiency when 60%+ of the feed is 0.03–2mm
- Density Match: Specific gravity difference ≥1 g/cm³ (e.g., cassiterite 7.1 vs. quartz 2.65)
- Slurry Density Match: 25–35% solids content (optimal fluidity range)
Golden Capacity Formula:
Single-unit capacity (t/h) = 0.12 × D² (D: spiral diameter in meters)
Example: For a Ø1500mm chute, theoretical capacity = 0.12 × 1.5² = 2.7 t/h (recommended actual load: 80%)
2. Typical Process Combination Scheme
For different mineral processing needs, the following three classic process combinations are recommended:
Spiral chute roughing + four-layer shaking table cleaning: This is the gold standard process for placer gold and ilmenite beneficiation. First, a large-scale tailings disposal process using dozens of spiral sluices installed at high density yields a high-grade rough concentrate. Then, a small number of four-layer shaking tables are used to further refine the rough concentrate, producing the final concentrate. The overall metal recovery rate can reach over 85%.
Spiral Sluice + Blanket Concentrator Combined Separation: For ores containing a high proportion of ultrafine minerals, spiral sluices are first used to recover 0.03-0.3mm coarse heavy minerals, followed by a blanket concentrator to recover -0.03mm ultrafine minerals from the tailings. This can increase the overall recovery rate by 10%-15%.
Classification + Multi-Stage Spiral Sluice Separation: Pre-classifying the raw ore into three particle sizes—+0.3mm, 0.03-0.3mm, and -0.03mm—and feeding them into spiral sluices of different sizes can increase separation efficiency by over 20%. For lower-grade ores, a two-stage spiral sluice roughing + scavenging process can be used to further improve the recovery rate.
As we conclude this operational blueprint, the strategic value of spiral chutes in modern industry becomes unequivocally clear.
Conclusion: The Space-Saving Workhorse Reimagined
Spiral chutes present a compelling material handling solution when properly applied to suitable use cases. While they may not be universally appropriate for all conveyance needs, their space-efficient design, gentle handling characteristics, and low operational costs make them invaluable in numerous industries. By carefully considering the specific material properties, throughput requirements, and facility constraints discussed in this article, engineers can maximize the benefits while mitigating the limitations of spiral chute systems. When configured appropriately, these simple yet effective devices continue to prove their worth as space-saving workhorses in material handling operations.
