In material separation technology, trommel screens stand as versatile workhorses—but not all designs are created equal. Traditional shafted and modern shaftless trommels each solve unique industrial challenges. This breakdown explores their mechanics, applications, and performance to help you choose the right fit.
What is a Traditional Shafted Trommel Screen?
Picture a giant rolling pin with holes – that’s essentially a shafted drum screen. These workhorses have been screening materials for decades, but have some limitations I’ve learned to work around.
A traditional shafted drum screen has a central rotating shaft supporting the drum structure. Motor-driven sprockets turn this shaft, making the entire drum rotate. The shaft provides stability but creates blind spots where materials can accumulate. These screens typically handle materials up to 300mm in size at 5-15 rpm speeds.
Key Components of Shafted Trommel Screens
Traditional shafted drum screens mainly consist of a drive system (motor + reducer), a shafted drum assembly (central main shaft + screen cylinder), a frame, a sealed dust cover, a feed hopper, an upper discharge port, an under discharge port, and auxiliary support components.
How Does It Work?
After the material enters the interior of the inclined drum from the feed hopper, the drum rotates at a constant speed driven by the drive system. Due to the drum’s 5°–10° incline, the material continuously tumbles and rolls along the inner wall of the drum under the combined effects of gravity and centrifugal force, moving toward the discharge end. During this process, qualified material with particle sizes smaller than the screen mesh (undersize product) passes through the screen and is discharged from the lower outlet, while unqualified material with particle sizes larger than the screen mesh (oversize product) is discharged from the outlet at the end of the drum.
The continuous tumbling and rolling of the material inside the drum automatically dislodges material stuck in the screen mesh, fundamentally reducing the likelihood of screen clogging. This is one of the core advantages that distinguishes the drum screen from a vibrating screen.
Key Features
- The screen mesh is resistant to clogging and highly adaptable to materials containing mud and moisture.
- Smooth operation with minimal vibration and noise levels below 75 dB.
- Simple structure, low failure rate, and quick and easy maintenance.
- The screening drum can be fully enclosed, facilitating dust collection and preventing dust pollution.
- High overall reliability and low initial investment costs.
- Equipped with high-strength, wear-resistant screens, achieving a screening efficiency of over 95% and a long service life.
Common Applications
- Quarries: Grading of large and small stones; separation of soil and stone dust.
- Sand and Gravel Plants: Separation of sand and gravel; washing and grading of river sand and sea sand.
- Coal Industry: Separation of lump coal from coal powder; used as auxiliary equipment in coal washing systems.
- Chemical and Mineral Processing Industries: Grading of lump materials; separation of powdery impurities.
- Building Materials Industry: Screening of powdered materials such as cement, lime, and gypsum.

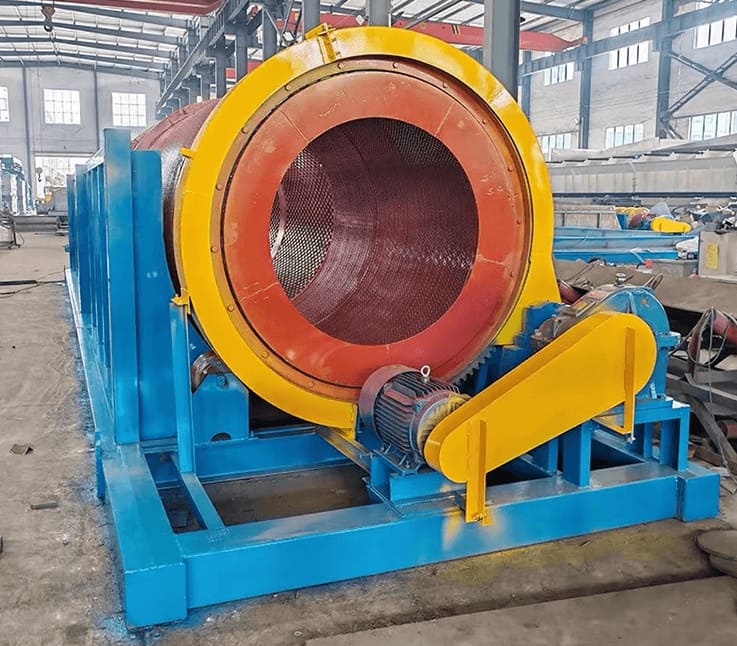

What is a Shaftless Trommel Screen?
Frustrated with clogged screens at a copper mine, we switched to shaftless models. The difference was night and day – no more daily shutdowns to clear jams.
A shaftless drum screen removes the central shaft, using external drive rings instead. This open design prevents material buildup and handles fibrous/sticky waste better. Modern shaftless screens achieve 20-30% higher throughput than shafted versions with the same power input.
Key Components of Shaftless Trommel Screens
The shaftless drum screen eliminates the central main shaft found in traditional shafted drum screens. It primarily consists of a drive system (motor + reducer + drive idler), a shaftless drum body (end flanges + screen mesh + reinforcing ribs), driven idlers, guide rollers, a frame, a sealing cover, and feed and discharge ports. The drum is supported on the drive and idler rollers by flanges at both ends and is rotated by the drive roller through friction.
How Does It Work?
The core screening logic of a shaftless drum screen is the same as that of a shafted drum screen; however, because the central shaft has been removed, the material has completely open space to move within the drum:
- After entering the hollow drum body from the feed end, the material is lifted by the lifting plates on the inner wall as the drum rotates. Once it reaches a certain height, it naturally falls and rolls.
- Material smaller than the screen mesh size passes through the screen to become the undersize product, while material larger than the screen mesh size moves along the inclined drum toward the discharge end and is discharged.
- The shaftless design eliminates the problem of material entanglement and jamming on the central shaft. Even mixed materials containing large amounts of entangling materials such as plastic bags, woven bags, rebar, and straw can be screened smoothly.
- Material tumbles more thoroughly within the drum, resulting in greater contact area with the screen mesh. Screening efficiency is 5%–10% higher than that of shafted drum screens of the same specifications.
Key Features
- Eliminates clogging issues: The shaftless design offers exceptional adaptability to tangled and bulky materials, capable of processing materials with a maximum particle size exceeding 500 mm, and prevents downtime caused by rebar or woven bags becoming entangled around the main shaft.
- Higher processing capacity:The effective screening area of the drum is 20%–30% larger than that of shafted drum screens of the same specifications. For drums of the same diameter and length, hourly processing capacity can be increased by approximately 25%.
- Higher screening efficiency:Material moves unobstructed within the cylinder, ensuring thorough tumbling; screening efficiency can reach over 98%.
- Lower maintenance costs:Wear parts are limited to support rollers, guide rollers, and the screen mesh; with no central shaft wear issues, annual maintenance costs are reduced by over 40% compared to shafted drum screens.
- Significant potential for large-scale applications:Capable of manufacturing large cylinders with diameters exceeding 3 m and lengths exceeding 10 m to meet the demands of large-scale solid waste processing production lines.
- More flexible feeding:Larger feed openings allow for direct feeding of large-sized materials without the need for pre-crushing.
Common Applications
Shaftless drum screens, with their unique structural advantages, are primarily used in complex material screening scenarios where traditional shafted drum screens struggle to handle:
- Construction waste treatment:Screening bricks, concrete blocks, slag, steel bars, plastics, wood, etc., from construction waste; a core grading device in construction waste recycling production lines.
- Municipal solid waste treatment: Sorting and separating urban and rural municipal solid waste, separating recyclables, kitchen waste, and other waste; effectively handling tangled waste such as plastic bags, clothing, and woven bags.
- Solid waste recycling industry: Grading and screening of recyclable resources such as scrap steel, waste plastics, waste paper, and waste rubber.
- Mining industry:Coarse screening of large ores and raw coal, as well as material grading in tailings dry disposal and coal gangue treatment.
- River dredging and sand and gravel industry: Processing river sand and gravel with high mud content and many impurities, separating large pebbles, gravel, and fine sand.
- Agriculture and biomass industry: Grading of biomass materials such as straw, corn cobs, and sawdust, as well as impurity removal and screening of grains and feed.

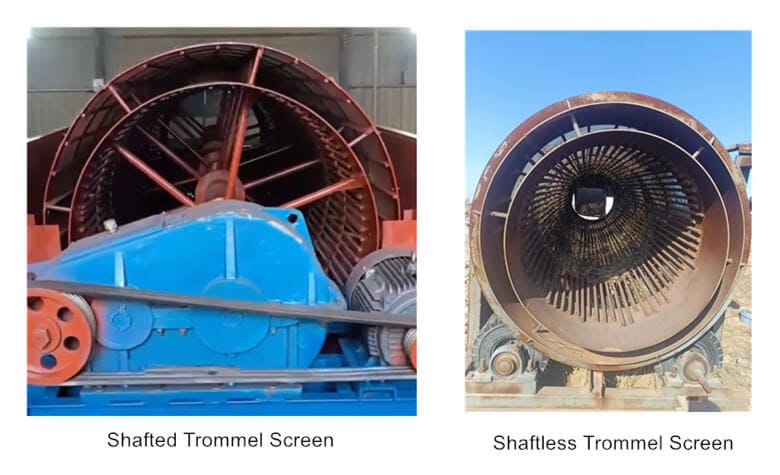

What Are The Differences Between Shafted and Shaftless Trommel Screens?
The differences between shafted and shaftless trommel screens go far beyond just having or not having a central shaft. The main difference lies in their drive mechanisms: shafted trommels rotate via a central axle, while shaftless models use external drive rings. Shaftless designs offer 30% more screening area, handle wet/sticky materials better, and require less maintenance. Shafted models remain cheaper for simple, low-maintenance applications with smaller materials.
| Comparison | Shaftless Trommel Screen | Shafted Trommel Screen |
| Material Compatibility | Suitable for all types of materials, particularly those that tend to wrap around the screen or are in large chunks | Suitable for all types of standard materials |
| Risk of Jamming | Extremely low (no central shaft) | Low (only minor clogging of screen openings) |
| Screening Method | Rotary Screening | Rotary Screening |
| Screening Efficiency | 90%-98% | 85%-95% |
| Max. Capacity | Up to 1.3 times the capacity of a shaft screen of the same specifications | 100% MCR (Maximum Continuous Rate) |
| Feed Size | 2–50 mm (adjustable) | 2–30 mm (adjustable) |
| Potential for Scaling Up | Very high (models larger than 3 m × 10 m can be manufactured) | Fairly high |
| Energy Consumption | Low (40%–50% of that of a vibrating screen) | Low (50% of that of a vibrating screen) |
| Noise | ≤70dB (with sound enclosure) | ≤75 dB (with sound enclosure) |
| Device Life | 8-10 years | 6-8 years |
| Screen Cleaning Mechanism | No additional screen cleaning required | No additional screen cleaning required |
| Working Environment | Good (low dust emissions from the drum screen) | Good (low dust emissions from the drum screen) |
| Workload | Very low (no need for regular screen cleaning) | Low |
| Maintenance Costs | Low (only replacement of idler rollers and screens) | Relatively low (replacement of bearings and screens) |
Conclusion
Whether prioritizing cost efficiency (shafted) or high-capacity performance (shaftless), understanding these systems ensures optimal screening solutions. Upgrading to shaftless models can revolutionize waste processing, while shafted designs remain reliable for simpler tasks.
