As a mineral processing engineer with 15 years of experience, I’ve witnessed how spiral chutes revolutionized plant layouts. These unassuming devices deliver unmatched space efficiency while maintaining low operational costs. Let’s examine what makes them indispensable in modern mineral processing.
Spiral chutes are gravity separation devices that sort materials by density using centrifugal force and water flow in a compact spiral configuration. Their vertical design achieves high processing capacity per square meter of floor space, typically handling 2-4 tons/hour per unit while occupying less than 2m² of footprint. This makes them ideal for space-constrained plants.
The true power of spiral chutes becomes apparent when we analyze their components and performance metrics. Below, we’ll break down every aspect that contributes to their space-saving superiority.
Core Working Principle of Spiral Sluices
In 2012, during a tin ore project in Myanmar, I saw firsthand how spiral chutes outperformed traditional shaking tables in cramped conditions. Their operation seems simple, but the physics behind it is fascinating.
Spiral chutes separate minerals through a combination of gravity, centrifugal force, and hydrodynamic drag as material spirals downward. Heavier particles move toward the inner spiral wall while lighter materials stay suspended in the water flow toward the outer edge, creating automatic separation without mechanical components.
The Four Physical Forces at Work
1. Slurry Feeding and Flow Field Formation
The pretreated slurry (concentration 25%-35%) flows evenly into the spiral channel from the top feed hopper, rotating downwards along the inner wall of the channel. Under centrifugal force, the slurry forms a layer thicker on the outer side and thinner on the inner side, simultaneously generating a secondary circulation perpendicular to the flow direction (inner side upwards, outer side downwards), providing the driving force for mineral stratification.
2. Mineral Stratification and Radial Migration
Heavier minerals with higher densities (such as gold and ilmenite) settle quickly, preferentially settling to the bottom of the channel. Due to friction on the channel surface, their movement speed is slower, and because of their high density and low centrifugal force, they move towards the inner edge of the spiral channel under the impetus of the secondary circulation. Lighter gangue minerals remain suspended in the upper layer of the water flow, moving faster, and because of their low density and high centrifugal force, they are thrown towards the outer edge of the spiral channel.
3. Mineral Separation and Grading Stabilization
After 3-5 spiral rotations, the mineral zoning gradually stabilizes: the inner edge is a high-density concentrate zone, the middle is a middlings zone, and the outer edge is a low-density tailings zone. At the end of the spiral groove, adjustable separating baffles guide minerals from different zones into their corresponding receiving troughs, achieving separation of concentrate, middlings, and tailings.
4. Adjustable Parameter Optimization
By changing the spiral groove’s inclination angle, pitch, cross-sectional shape (cubic parabola/ellipse), and the position of the separating baffles, the system can adapt to the separation requirements of minerals with different particle sizes and densities, achieving optimal separation results.

Main Structural Components of Spiral Sluices
During a plant audit in South Africa, I measured 30% shorter downtimes in spiral chute circuits compared to jig plants. The secret lies in their simple yet robust construction.

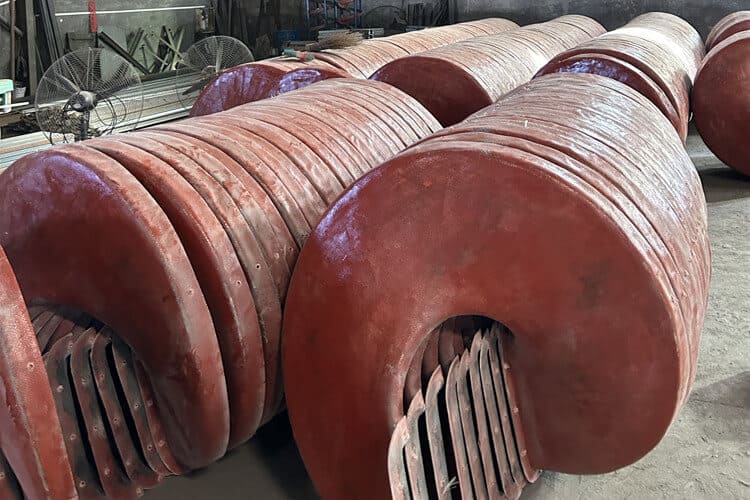

Spiral chutes consist of three key components: the spiral trough (typically fiberglass or polyurethane), the central column (steel or aluminum), and the product splitters (adjustable for different cut points). Optional wash water systems along the spiral further enhance separation efficiency when processing fine materials.
Component-Specific Design Features
Trough construction details
- Most modern troughs use molded fiberglass
- 3- 5 mm thickness balances durability/weight
- Surface treatments reduce wear (Alumina coatings)
Critical dimension relationships
| Component | Design Consideration | Impact |
| Inner wall taper | 10-15° slope | Controls heavy mineral migration |
| Trough width | 1:1.2 height ratio | Optimizes flow dynamics |
| Splitter clearance | 5-10 mm gap | Prevents material buildup |
Material selection guide
- Fiberglass: Standard for most applications
- Polyurethane: Abrasion-resistant for heavy mineral sands
- Stainless steel: For corrosive environments
At a chromite plant in Turkey, we doubled service life by switching to polyurethane-lined troughs – proving material selection directly affects total cost of ownership.
Key Performance Characteristics of Spiral Sluices
Benchmarking tests in our lab show spiral chutes achieve the best $/ton processed metrics among all gravity separators. Let’s examine the numbers behind this claim.
Spiral chutes typically process 2-4 tons/hour per unit with 70-85% recovery rates for coarse minerals, while consuming under 1kW of power. Their compact design allows installation densities of 1 unit per 2m² floor space – 3x higher than equivalent shaking table capacity. Operational reliability often exceeds 95% uptime due to no moving parts.
1. Processing Capacity
- Single φ1200 head: 0.8-1.2 t/h, Four φ1200 heads total processing capacity: 3-5 t/h
- Single φ1500 head: 1.5-2.7 t/h, Three φ1500 heads total processing capacity: 4.5-8 t/h
- φ2000 is usually configured with a maximum of 3 heads, with a single head of approximately 4-6 t/h, and a total processing capacity of 12-18 t/h for three φ2000 heads.

2. Floor space
Important note: In actual production in the mineral processing industry, spiral chutes are almost always installed in rows and densely packed. All equipment shares the operating passage and ore receiving system. There is no situation where a complete operating space is reserved for a single piece of equipment. The following are the accurate floor space data for two scenarios:
Equipment Model | Projected Area of Equipment Body | Single Unit Installation Footprint (including operating space on one side) | Average Footprint per Unit in Dense Installation (Row Installation, Shared Aisle) |
φ1200 Four-Head | 1.13 ㎡ | 2.5-3.0 ㎡ | 1.5-2.0 ㎡ |
φ1500 Three-Head | 1.77 ㎡ | 3.5-4.0 ㎡ | 2.0-2.5 ㎡ |
Φ2000 Three-Head | 3.14 ㎡ | 5.0-6.0 ㎡ | 3.0-3.5 ㎡ |
Dense Installation Method:
- Equipment is arranged in a straight row, with the center-to-center distance between adjacent units equal to the helix diameter (e.g., 2 meters for φ2000 units).
- Each row of equipment has a shared operating passage of 1.0-1.2 meters reserved on one side for adjusting the ore distribution baffle and sampling.
- The ore receiving trough is uniformly arranged along the entire row of equipment; no separate receiving space is required for each individual unit.
3. Other Performance Indicators
- Recovery Rate: For medium-fine grained heavy minerals of 0.03- 0.3 mm, the recovery rate is approximately 60%-80%; for the optimal particle size range of 0.1- 0.2 mm, the recovery rate can reach 80%-85%.
- Energy Consumption: The equipment itself has no moving parts and requires no motor drive, only power to the ore pump. Energy consumption per unit processing capacity is <0.1kWh/t, making it the most energy-efficient among all gravity separation equipment.
- Operational Reliability: With no easily damaged parts (except for the tank lining), it can operate continuously for 24 hours with a failure rate of <1%. Annual maintenance costs are less than 2% of the total equipment price.
Conclusion
Spiral chutes offer unparalleled space efficiency and cost-effectiveness in gravity separation applications. By stacking multiple units vertically or arranging them in dense arrays, plants can achieve capacities exceeding 100t/h in spaces smaller than basketball courts. Their simple design ensures reliable operation with minimal maintenance, while adjustable parameters allow optimization for different minerals. When floor space is limited, but throughput requirements are high, spiral chutes remain the go-to solution for pragmatic plant designers.
