In the mining industry, responsible tailings disposal is a critical challenge that demands both environmental stewardship and operational efficiency. Two key processes—tailings dam storage and secondary resource recovery—play pivotal roles in ensuring safe waste containment while maximizing resource utilization. Engineered dam storage provides a secure solution for large-scale tailings management, while advanced sorting technologies extract residual value from waste materials. Together, these methods form a dual approach that aligns with modern sustainability standards while optimizing economic returns in mineral processing operations.

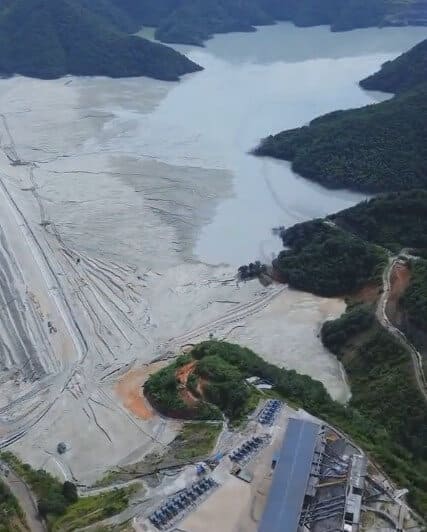

1. Standardized Tailings Dam Storage
—— A Basic Technology Universally Applicable to the Entire Industry
Mining operations generate vast quantities of tailings, presenting both technical and environmental challenges. Storing these materials safely while minimizing ecological impact necessitates a structured and reliable approach. Tailings dam storage stands as the most widely adopted method, offering scalable and secure containment for various types of mines.
Core Principle
Tailings dehydrated to a moisture content of ≤20%-30% are transported via pipelines to a specially designed and constructed tailings dam for centralized and sealed storage. Simultaneously, comprehensive anti-seepage, drainage, and dam reinforcement facilities are installed to eliminate the risk of tailings leakage and landslides, achieving safe and harmless storage of tailings. This is currently the most basic and widely used tailings disposal method for all types of mines.
Applicable Scenarios
- Suitable for tailings disposal in all types of mines, especially large and medium-sized iron and copper mines with large tailings production but lacking the conditions for large-scale comprehensive utilization.
- It can also serve as a temporary tailings storage solution for small mines, reserving space for subsequent resource utilization, and can handle a full range of capacities from 100 to 5000 tons/hour.
Main Tailings Dam Types
Based on structural form, tailings dams can be divided into four types: valley type, hillside type, flatland type, and river-blocking type.
- Valley-type tailings dams are built utilizing natural valley terrain, requiring less engineering work and having lower construction costs, making them the first choice for large and medium-sized mines.
- Hillside type is suitable for mines with narrow valleys and complex terrain.
- Flatland type is suitable for flat plains where no natural valleys are available.
- River-blocking type tailings dams have high operation and maintenance complexity and a lower application rate in China.
Key Operational Points for Frontline Practice
- Precise moisture content control
Strictly control the moisture content of tailings entering the dam, ensuring it remains consistently below 30%. Excessive moisture content leads to excessive water accumulation within the dam, significantly reducing dam stability and increasing the risk of landslides. Insufficient moisture content increases the difficulty of pipeline transportation; this can be precisely controlled by adjusting the parameters of the dewatering equipment. - Comprehensive seepage prevention system
Strengthen end-to-end seepage prevention measures; HDPE must be laid at the bottom of the tailings dam. Specialized seepage prevention materials such as geomembranes are used, and seepage interception trenches are set up around the perimeter to prevent pollutants from seeping into the soil and groundwater; the seepage prevention layer is inspected regularly, and any damage is repaired immediately. - Intelligent water level monitoring
The water level in the reservoir is strictly controlled and always maintained within the safe water level line to avoid excessive water level causing the dam to exceed its load capacity and triggering the risk of dam failure; a complete drainage system, including wells and culverts, is in place to ensure timely drainage of accumulated water in the reservoir. - Full-cycle dam reinforcement
Routine dam reinforcement and maintenance are carried out, including regular compaction and reinforcement of the dam body, and planting soil-stabilizing vegetation on the dam slope to improve the dam’s anti-sliding stability; the dam body is inspected weekly to check for cracks, leaks, and other abnormalities, and any problems found are immediately rectified.
While dam storage effectively contains tailings, it does not fully exploit the residual value within these waste materials. The next step—secondary tailings sorting—bridges the gap between waste disposal and resource optimization, unlocking additional economic and environmental benefits.
2. Secondary Tailings Sorting
——A Core Process for Improving Resource Utilization
In many mining operations, tailings still contain recoverable minerals that were not fully extracted during initial processing. Secondary sorting transforms what was once considered waste into a valuable resource, reducing environmental impact while enhancing operational profitability.
Core Principle
For valuable and associated minerals that have not been fully recovered from tailings, the use of appropriate separation processes for secondary enrichment and recovery not only improves the overall utilization rate of mineral resources but also reduces the final volume of tailings discharged, making it a core preliminary process in the resource recovery of tailings.
Applicable Scenarios
- Suitable for mines with tailings containing high concentrations of valuable minerals, such as iron and copper tailings with grades of ≥1%–2%.
- It can also be used for the recovery of associated valuable elements such as gold, silver, and sulfur in tailings. While primarily designed for metal ore tailings, this process is equally suitable for non-metal ore tailings—such as graphite—provided they contain target minerals that have not been fully separated. The typical processing capacity ranges from 50 to 1,000 tons per hour, and the process is most widely applied in large and medium-sized mines.
Core Process Classification
Based on the separation principle, it can be divided into three main categories: flotation, magnetic separation, and gravity separation.
- Flotation Secondary Separation: Suitable for fine-grained copper and lead-zinc ore tailings with a high proportion of -200 mesh. Through a customized flotation reagent system, it accurately separates valuable minerals from the tailings, achieving high recovery efficiency and reducing the target mineral grade in the tailings to below 0.5%.
- Magnetic Separation Secondary Separation: Suitable for iron ore and other magnetic mineral tailings. Utilizing the difference in mineral magnetic properties, it recovers magnetic iron minerals from the tailings using a magnetic separator. The process is simple and has low operating costs, making it the preferred process for large and medium-sized iron ore tailings.

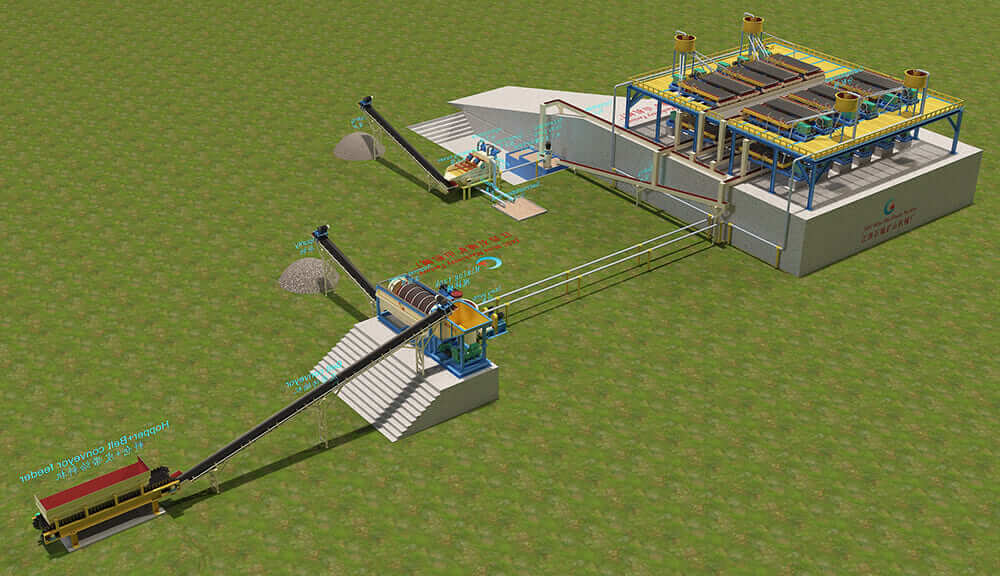

- Gravity Separation Secondary Separation: Suitable for coarse-grained iron ore and tungsten ore tailings. Utilizing the difference in mineral density, it recovers valuable minerals using gravity separation equipment such as shaking tables and jigs. It is easy to operate, has low maintenance costs, and is more suitable for small-scale mine applications.
Key Operational Points for Frontline Practice
- Composition Pre-screening: Scientific selection of sorting processes
Before sorting, a full composition analysis of the tailings must be completed to identify the types, contents, and particle sizes of valuable minerals, allowing for the selection of appropriate sorting processes. For example, magnetic separation should be prioritized for iron ore tailings, while flotation should be prioritized for copper ore tailings. - Dynamic parameter optimization: Improved recovery rate + cost control
Based on the tailings particle size and mineral properties, sorting equipment parameters should be dynamically optimized, such as the magnetic field strength of the magnetic separator and the type and dosage of flotation reagents, ensuring recovery efficiency while avoiding reagent waste. - Concentrate dewatering: Compliant storage and transportation
Sufficient dewatering equipment should be provided. The concentrate produced from secondary sorting must be dewatered to a moisture content of ≤12% using equipment such as filter presses to meet storage and transportation requirements. The remaining tailings after sorting can be stored in tailings ponds or used for subsequent resource utilization. - Real-time monitoring: Ensuring tailings meet discharge standards
The grade of the sorted tailings should be monitored in real time. If the grade exceeds the standard (e.g., iron ore tailings grade >1%), the sorting parameters should be adjusted immediately to ensure resource recovery efficiency.
Conclusion
Proper implementation of tailings dam storage and secondary recovery processes transforms what was once considered waste into a managed resource. By adhering to strict operational controls—from moisture regulation in dams to precision sorting for residual minerals—mining operations achieve safer tailings handling and enhanced resource efficiency. As technology advances, these foundational methods continue to evolve, reinforcing their role in sustainable mining practices that balance environmental responsibility with profitability. The integration of these proven techniques remains essential for long-term success in the increasingly regulated and resource-conscious mining sector.
