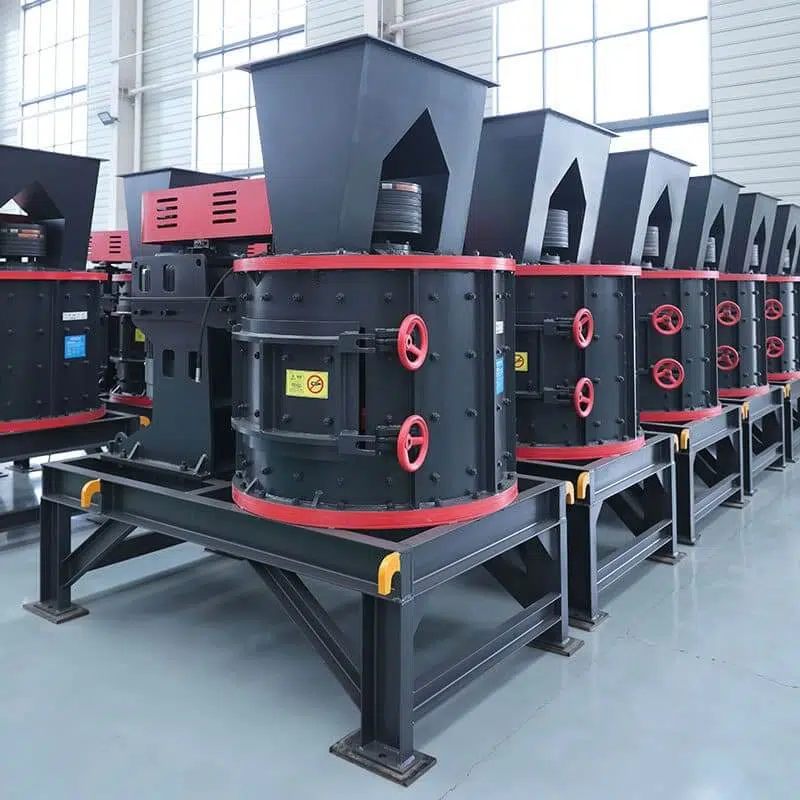

Vertical Shaft Compound Crusher
The vertical shaft compound crusher, also known as a compound crusher, is a new type of high-efficiency crushing equipment. It is primarily used to crush various medium-hardness and soft particle materials, such as limestone, gypsum, and coal.
Capacity: 5-200 TPH
Feeding Size: ≤100 mm
Discharge Size: 0-5 mm
Power: 30-250 kW
Application: Mineral processing plants, coal plants, chemical plants, cement, glass, ceramics, electric power, etc.
Vertical Shaft Compound Crusher Overview
A vertical shaft compound crusher is a special type of crushing equipment that combines the characteristics of vertical crushers and impact crushers. It usually consists of the rotor and impact plate of a vertical crusher, which can perform impact and squeeze crushing simultaneously to achieve a more efficient crushing effect.
The compound vertical crusher is widely used in mining, construction, metallurgy, the chemical industry, and other industries. It is suitable for crushing ore, slag, construction waste, and other materials of various hardness and strength. It is one of the necessary crushing equipment.
The vertical shaft compound crusher is a new type of crushing equipment developed and designed based on the technology of similar crushers at home and abroad. It can perform fine crushing and coarse grinding of many types of materials. It has a large crushing ratio, low energy consumption, energy saving and environmental protection, stable operation, and easy operation and maintenance. It can crush blast furnace slag, coal gangue, lump coal, sandstone, gypsum, and other materials. The vertical shaft compound crusher is vertical crushing equipment that is more convenient to move and operate. It is small in size and relatively cheap. It is more affordable than other crushing equipment, has high-cost performance, and has strong production capacity.

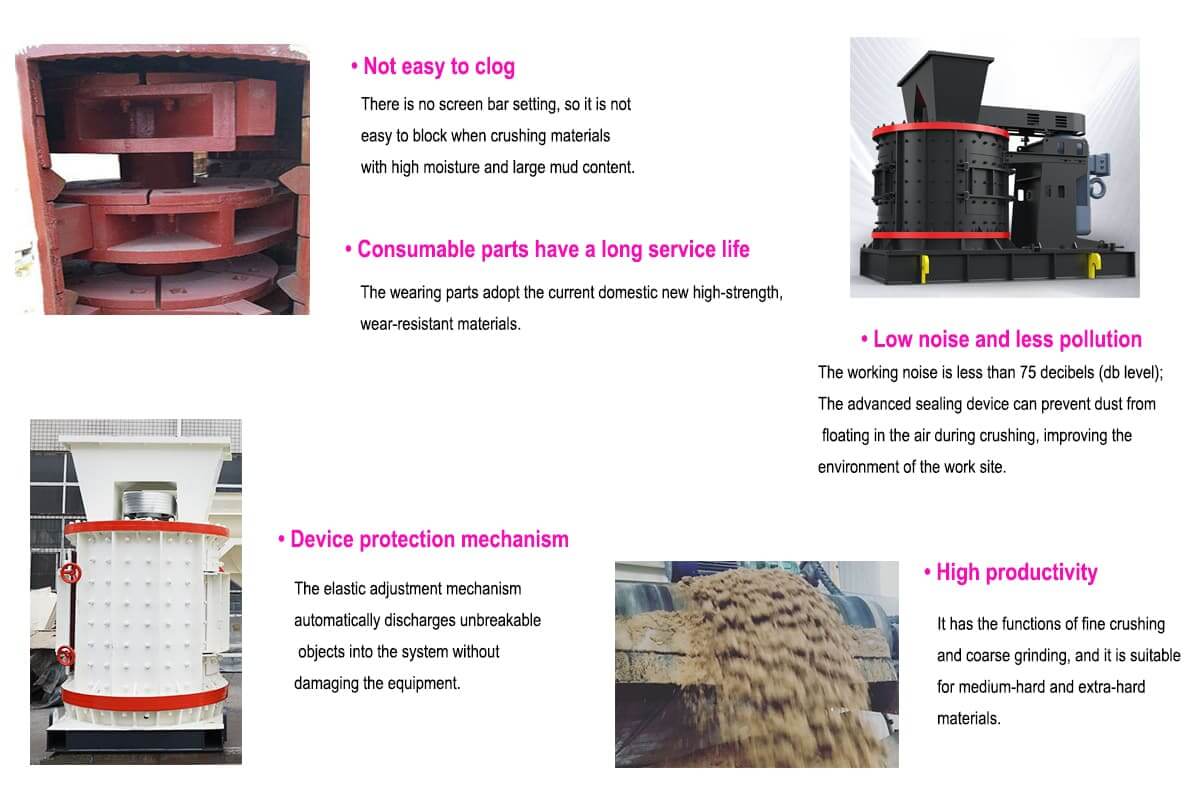

Features
- Not easy to clog There is no screen bar setting, so it is difficult to block when crushing materials with high moisture and large mud content.
- Device protection mechanism The elastic adjustment mechanism automatically discharges unbreakable objects into the system without damaging the equipment.
- Low noise and less pollution The working noise is less than 75 decibels (db level); the advanced sealing device can prevent dust from floating in the air during crushing, improving the environment of the work site.
- High productivity It has the functions of fine crushing and coarse grinding, and it is suitable for medium-hard and extra-hard materials.
- Consumable parts have a long service life The wearing parts adopt the current domestic new high-strength, wear-resistant materials.
Advantages
The vertical shaft compound crusher offers numerous advantages, including high efficiency and excellent product particle size, combining fine crushing with coarse grinding functions. It is versatile, capable of processing materials with a compressive strength of up to 350 MPa, and features high safety performance; its insurance system protects the equipment from damage when encountering unbreakable materials. This energy-efficient machine is user-friendly, producing cubical products with a high packing density. Additionally, it utilizes advanced wear-resistant materials, resulting in minimal self-lining wear and easy maintenance. With its horizontally arranged bearings, the crusher has a long service life and can effectively crush materials even at high temperatures.
✔ High crushing ratio: Achieves high crushing efficiency, ensuring uniform particle size of the material.
✔ Multi-functional: Suitable for both coarse and fine crushing, with a wide range of applications.
✔ Low energy consumption: Rational structure and stable operation reduce energy consumption.
✔ Easy maintenance: Simple component replacement and short maintenance cycles.
✔ High degree of automation: Equipped with an electrical control system for convenient operation and improved production efficiency.
Structures & Working Principle
Vertical Shaft Compound Crusher Structure
Vertical shaft compound crusher, also called vertical shaft sand-making machine, consists of a transmission device, bearing, upper machine cover, liner, hammer head, hammer plate, main shaft, belt, feed port, discharge port, support, motor, and access door, cylinder, upper cover, and base, etc., the internal structure is simple and reasonable, the operating cost is low, and the principle of stone against stone is used to reduce wear and tear.
Vertical Shaft Compound Crusher Working Principle
The stone falls vertically into the machine body from the upper part of the vertical shaft compound crusher and falls onto the equipment’s throwing plate. Under centrifugal force, the material is thrown to the inner wall of the cylinder and violently collides with the counterattack plate installed on the inner wall. Violent impact also occurs, and the material is broken or cracked. After the material enters the conical rotor cavity, it is broken by stamping, extrusion, etc., during the falling process. The material is further broken into small particles, and the qualified finished product is discharged from the discharge port.
Technical Parameters
| Model | Rotor Diameter (mm) | Speed of Mainshaft (r/min) | Feeding Size (mm) | Discharge Size (mm) | Capacity (t/h) | Power (kW) |
| 800 | 650 | 1350 | 50 | 0-5 | 5-15 | 30 |
| 1000 | 800 | 970 | 70 | 0-5 | 10-30 | 55 |
| 1250 | 1000 | 940 | 100 | 0-5 | 20-60 | 75 |
| 1500 | 1250 | 650 | 100 | 0-5 | 30-80 | 110 |
| 1750 | 1560 | 600 | 100 | 0-5 | 40-100 | 185-200 |
| 2000 | 1740 | 500 | 100 | 0-5 | 80-200 | 220-250 |
