Finding the right equipment for alluvial gold recovery can be tough. Two popular options are the fixed sluice box and the pulsating sluice box. But which one works best for your needs? Let’s break it down.
The best choice between fixed and pulsating sluice boxes depends on your mining conditions. Fixed sluice boxes work well for coarse gold in simple setups. Pulsating sluice boxes handle fine gold better and work in more challenging conditions. The right pick depends on gold particle size, clay content, and how often you clean the equipment.
Now that we’ve seen the basic differences, let’s take a closer look at each type. Understanding how they work will help you make the right choice.

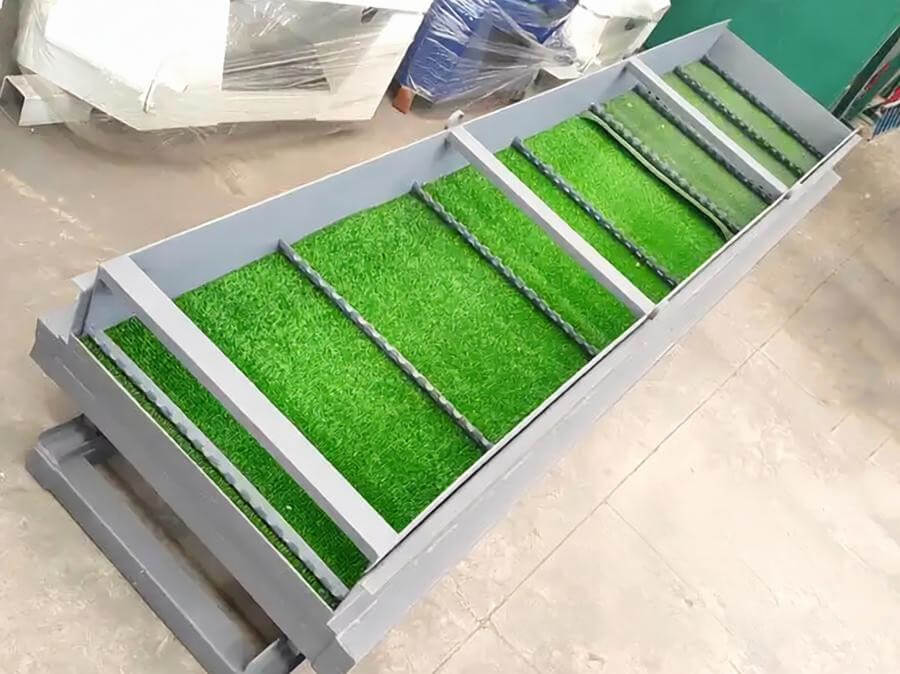

What Is a Fixed Sluice Box?
Imagine a simple, sloping channel that catches gold as water washes dirt through it. That’s basically a fixed sluice box.
A fixed sluice box is a stationary gold recovery device with riffles or mats that trap gold particles. Water carries material through the box while gold, being heavier, gets caught in the riffles. It’s simple, affordable, and works best with coarse gold in easy-to-process materials.
How Does The Fixed Sluice Box Work?
- Feed material: Gold-bearing gravel, sand, and water enter the sluice.
- Gravity separation: Water transports the material along the inclined channel.
- Gold trapping: Dense gold particles settle into low-velocity zones behind riffles or within the matting.
- Tailings discharge: Lighter materials flow out of the sluice.
- Clean-out: The collected concentrate is removed periodically for further gold recovery.
Advantages
- Simple structure with relatively low equipment and maintenance costs.
- Continuous processing with a suitable, steady feed and water supply.
- Easy to install and integrate into small or large alluvial gold processing plants.
- Effective for recovering suitable coarse and medium-sized gold particles.
Limitations
- Fine gold recovery can decline if water velocity, bed loading, or riffle conditions are unsuitable.
- Sticky clay and excessive fine sediment can interfere with gold settling and riffle performance.
- Concentrate accumulation may require periodic shutdowns for clean-out, depending on the feed and equipment design.
Best Uses for Fixed Sluice Boxes
| Situation | Good For Fixed Sluice? |
| Coarse gold (> 0.5 mm) | Yes |
| Low clay content | Yes |
| Small operations | Yes |
| Frequent clean-ups | No |
Fixed sluices shine when processing:
- River gravels with visible gold
- Materials with few fine particles
- Operations where simplicity is key
They struggle with:
- Clay-rich materials
- Very fine gold
- Large volumes of material
I’ve used fixed sluices in remote locations where portability mattered more than recovery rates. They worked well for catching nuggets but missed finer gold. A fixed sluice box is often a practical choice for relatively free-washing alluvial material with limited clay and a suitable gold particle-size distribution.
What Is a Pulsating Sluice Box?
Now picture a sluice that shakes while working – that’s the pulsating type, a more advanced tool for tricky gold.
A pulsating sluice box adds vibration to the gold recovery process. The shaking action helps separate fine gold from clay and black sands. This type works better than fixed sluices for difficult materials and finer gold particles, though it costs more and needs power to operate.
How Does The Pulsating Sluice Box Work?
- Feed material: Gold-bearing slurry enters the separation channel.
- Pulsation and stratification: Repeated movement helps loosen the particle bed and allows denser particles to settle relative to lighter material.
- Gold recovery: Gold particles are retained in the trapping zones as lighter gangue moves toward the discharge.
- Tailings discharge: Waste sand and other lighter particles leave the sluice.
- Clean-out: The accumulated gold-bearing concentrate is collected according to the equipment design and operating conditions.
Advantages
- Pulsation can help reduce the packing of sand and heavy mineral concentrates in the trapping zones.
- May improve separation when the feed contains fine gold or a substantial amount of heavy mineral sand.
- Can be useful where a conventional sluice struggles with bed stability or frequent concentrate accumulation.
- Offers an additional operating variable beyond water flow, slope, and feed rate.
Limitations
- Mechanical components increase equipment complexity and maintenance requirements.
- Performance depends on pulse frequency, amplitude, water flow, feed rate, and the particle-size distribution.
- Pulsation does not automatically solve sticky-clay problems; effective scrubbing and disintegration may still be necessary.
- Higher recovery is not guaranteed without testing the actual ore.
Best Uses for Pulsating Sluice Boxes
| Situation | Good For Pulsating Sluice? |
| Fine gold (<0.5mm) | Yes |
| High clay content | Yes |
| Large operations | Yes |
| Difficult materials | Yes |
Pulsating sluices excel when processing:
- Clay-bound gold deposits
- Fine gold concentrates
- High-volume operations
- Black sand-rich areas
They cost more because:
- Require a power source
- More complex mechanics
- Need regular maintenance
In my experience, pulsating sluices recover 10-20% more gold from difficult materials compared to fixed sluices.
Fixed vs. Pulsating Sluice Box: Key Differences
| Comparison factor | Fixed sluice box | Pulsating sluice box |
| Separation principle | Water flow and riffle trapping | Water flow plus mechanical pulsation |
| Best suited feed | Relatively clean, free-washing gravel | Feed that benefits from additional bed agitation |
| Coarse gold | Generally suitable with appropriate riffles | Can recover coarse gold if the design and settings are suitable |
| Fine gold | Performance depends on matting, hydraulics, and feed conditions | May improve fine-particle separation in suitable designs |
| Clay-rich material | Requires effective pretreatment | Also requires effective pretreatment |
| Concentrate packing | Can occur if riffles become overloaded | Pulsation may reduce packing |
| Clean-out frequency | Depends on concentrate loading and trapping design | Depends on concentrate loading and trapping design |
| Maintenance | Usually simpler | Usually more complex |
| Operating cost | Generally lower | May be higher because of mechanical components |
| Best application | Simple, economical bulk recovery | Operations where pulsation offers a demonstrated recovery advantage |
Which One Is Best For Alluvial Gold Processing?
The big question remains: fixed or pulsating sluice? The answer lies in your specific conditions.
Choose a fixed sluice for coarse gold (> 0.5 mm) in simple operations with low clay content. Pick a pulsating sluice for fine gold (< 0.5 mm), clay-rich materials, or when you can’t clean the box frequently. Pulsating models work better but cost more and need power, while fixed sluices offer simplicity and lower cost.
Decision Factors Explained
Factor 1: Gold particle size
Coarse gold and visible flakes
A fixed sluice box is often a good starting point. Properly sized riffles, suitable matting, and stable water flow can provide effective recovery with relatively simple equipment.
Fine gold and flour gold
Consider a pulsating design if testing demonstrates better retention of fine particles. Fine gold is especially sensitive to hydraulic conditions, and a poorly adjusted pulsating sluice can still lose valuable particles. A centrifugal concentrator or other fine-gold recovery device may be worth evaluating for very fine material.
Research on conventional sluice boxes shows that recovery depends on the interaction between particle size, feed rate, water flow, and riffle design. Equipment selection should therefore be based on the actual gold-size distribution rather than the label “fine gold” alone.
Expert Advice: Coarser, flaky, or easily settable gold particles can be captured early in the initial stage of a short-circuit process; fine-grained gold, on the other hand, relies more on a stable water film, an appropriate bed surface, and a longer effective enrichment distance. When the raw ore has a very wide particle size distribution, the coarse-to-medium-sized stream can be separated from the fine-grained stream; if necessary, a jig, centrifuge, and chute can be used in conjunction, rather than having a single chute handle the entire particle size range.
Factor 2: Clay content
Low clay content
A fixed sluice is usually a cost-effective choice when the material washes easily, gold is liberated, and the feed can be classified consistently.
High clay content
Prioritize a scrubber or trommel scrubber and adequate washing before choosing the sluice. A pulsating sluice may help keep the concentrate bed loose, but it cannot reliably compensate for gold still locked inside clay lumps.
For clay-rich alluvium, the key question is whether the washing circuit can liberate the gold before gravity separation begins.
Factor 3: Clean-out frequency
The clean-out interval is determined by the amount of heavy material accumulated in the sluice, the trapping-system design, and the operating conditions. It should not be set solely by the equipment type.
- Frequent clean-outs are acceptable: A fixed sluice may be preferable because of its simple structure and low operating cost.
- Longer continuous runs are desirable: Consider a pulsating sluice if its design demonstrably reduces bed packing and maintains recovery for longer periods.
- Fine gold is economically important: Avoid extending clean-out intervals without checking recovery. An overloaded trapping bed can release previously captured gold into the tailings.
Conclusion
For most alluvial gold operations, the decision comes down to the condition of the feed and the recovery target.
- Choose a fixed sluice box when the material is relatively clean, gold is predominantly coarse or medium-sized, the budget is limited, and straightforward operation is important.
- Consider a pulsating sluice box when bed packing is a recurring problem or fine-gold recovery is important, provided representative tests confirm a meaningful improvement.
- For clay-rich deposits, invest in effective washing and scrubbing before relying on either sluice type.
- For deposits containing significant fine gold, compare gold recovery in both the concentrate and tailings. Consider adding a dedicated fine-gold recovery stage if necessary.
The most reliable way to choose is to run representative feed through both systems under comparable conditions, then compare gold recovery, tailings losses, throughput, water consumption, clean-out labor, and maintenance cost.
The best sluice box is not necessarily the one that catches the most visible gold. It is the one that consistently delivers the highest economically recoverable gold yield at an acceptable operating cost.
