Cloudy circulating water is a common cause of unstable gravity separation in mineral processing plants. When suspended fine particles accumulate in recycled process water, they can alter slurry flow behavior, interfere with particle settling, and reduce separation efficiency. At the same time, fluctuations in water tank levels, pump pressure, and branch flow rates can further destabilize operating conditions.
When shaking tables develop wider concentrate bands and spiral chutes show blurred separation zones simultaneously, the problem may not be caused by individual equipment settings. Before adjusting the equipment, investigate excessive suspended fines, insufficient water clarification, and an unstable circulating water supply.
Understanding these mechanisms helps gravity separation plants identify the root cause, improve circulating water quality, and maintain more consistent concentrate grade and recovery.
1. How Does Cloudy Circulating Water Affect Gravity Separation?
Cloudy circulating water typically contains suspended clay, fine mineral particles, and other solids that have not been adequately removed during water clarification. When this water returns to the gravity separation circuit, the suspended fines can interfere with particle movement and separation conditions.
Three mechanisms are particularly important:
- Increased slurry viscosity:Fine clay and ultrafine particles can increase apparent slurry viscosity, especially at high solids concentrations, reducing the relative movement of valuable minerals and gangue.
- Interference with particle settling:Suspended fines can hinder particle settling and alter the flow structure around coarser particles.
- Unstable water supply:Changes in water tank levels, pump suction conditions, or pipeline pressure can cause fluctuations in wash water and slurry dilution.
These effects can occur simultaneously. As a result, even when the feed ore grade and particle size distribution remain relatively stable, gravity separation performance may deteriorate.
However, turbidity alone does not determine the severity of the problem. The concentration, size, mineralogy, and clay content of suspended solids all influence their impact on the separation process.

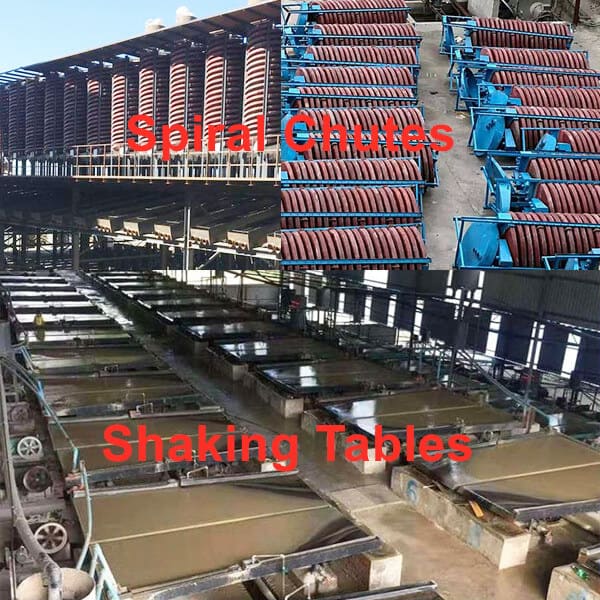

2. Why Do Shaking Tables and Spiral Chutes Become Unstable at the Same Time?
Shaking tables and spiral chutes use different separation mechanisms, but both depend on controlled water flow and the selective movement of mineral particles. When both types of equipment deteriorate simultaneously, a shared disturbance in the circulating water system is a strong possibility.
(1) Shaking Tables: Wider Concentrate Bands
Shaking tables separate minerals through the combined effects of deck motion, water flow, particle density, particle size, and bed stratification.
When circulating water contains excessive fine solids, the fines can accumulate within deck riffles and interfere with particle movement. Changes in slurry viscosity and wash water conditions can also weaken the separation between valuable minerals and gangue.
Typical symptoms include:
- Wider concentrate bands and less distinct separation boundaries.
- Increased middlings production.
- Shifting concentrate positions despite unchanged deck settings.
- Fluctuating concentrate grade and recovery.
Operators may attempt to correct these symptoms by adjusting deck slope, wash water flow, or the concentrate discharge position. However, if poor circulating water quality is the underlying cause, these adjustments may only provide temporary improvement.
(2) Spiral Chutes: Blurred Separation Zones
Spiral chutes rely on gravity, centrifugal effects, fluid drag, and particle stratification within a flowing slurry film.
Excessive suspended fines can alter slurry flow behavior and weaken the separation between concentrate, middlings, and tailings. Depending on slurry properties and operating conditions, the flow film may become thicker or less stable, making the separation boundaries harder to identify.
Common symptoms include:
- Blurred concentrate and tailings boundaries.
- Increased mixing between valuable minerals and gangue.
- Shifting splitter positions needed to maintain product quality.
- Unstable concentrate grade and recovery.
Adjusting the splitter position may compensate for a temporary shift in the separation boundary, but it cannot remove suspended fines or correct unstable water supply conditions.
(3) The Shared Cause: Circulating Water Quality and Hydraulic Instability
When both machines become unstable during the same operating period, operators should investigate common factors before treating the equipment separately.
| Observed symptom | Possible cause |
| Wider table concentrate bands and blurred spiral separation zones | Excessive suspended fines or altered slurry properties |
| Both machines fluctuate periodically | Unstable pump pressure, water flow, or tank level |
| Performance worsens as ore throughput increases | Higher solids loading or insufficient clarification capacity |
| Separation improves during a controlled clean-water trial | Circulating water quality is a likely contributing factor |
These observations are diagnostic clues, not definitive proof. Changes in ore mineralogy, particle size distribution, feed rate, and slurry concentration should also be considered.
3. How Can Operators Determine Whether Water Quality Is the Root Cause?
Before changing equipment parameters, operators should establish whether the instability originates from circulating water, feed conditions, or the hydraulic system.
A systematic diagnosis based on synchronized measurements and controlled trials is more reliable than adjusting several variables simultaneously.
Step 1: Measure Water Quality and Feed Conditions
Record operating data at the circulating water tank outlet and the inlets of the affected equipment during the same period.
Key parameters include:
- Circulating water turbidity and, where possible, suspended solids concentration.
- Feed slurry solids concentration and flow rate.
- Freshwater make-up flow.
- Main pipeline pressure and branch water flow rates.
- Feed particle size distribution and relevant ore characteristics.
- Concentrate, middlings, and tailings grades or other available separation indicators.
These measurements help determine whether water quality deteriorates at the same time as separation performance.
Step 2: Conduct a Controlled Clean-Water Trial
Where practical, temporarily supply clean water to a representative unit or branch while keeping feed rate, slurry concentration, and other operating conditions as consistent as possible.
Compare the results before and during the trial. If the shaking table develops clearer concentrate boundaries or the spiral chute shows more distinct separation zones, circulating water quality is likely contributing to the problem.
The trial should maintain comparable water flow rates. Otherwise, an improvement could result from changes in dilution or hydraulic conditions rather than reduced turbidity alone.

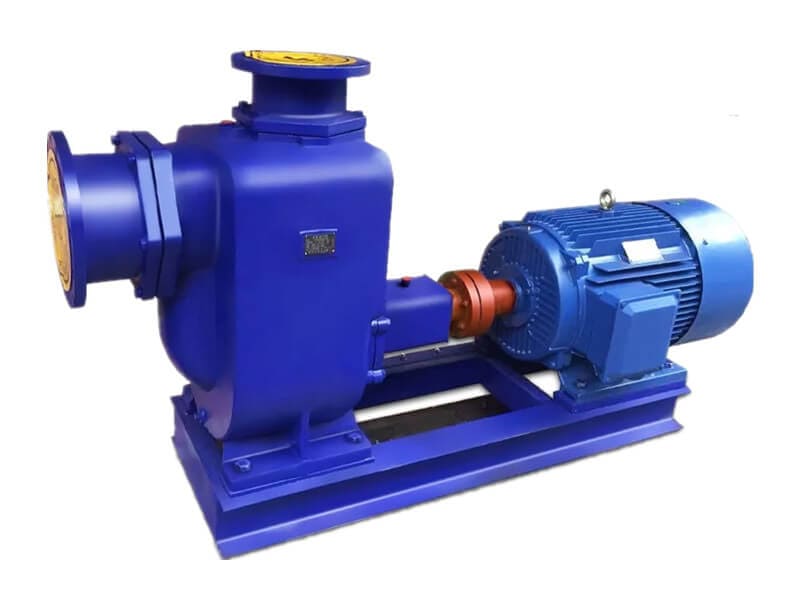

Step 3: Check Pump Pressure and Branch Flow
If clean water produces little improvement, investigate the water supply system.
Check for low tank levels, air entering the pump suction line, blocked strainers, pipeline restrictions, and frequent changes in water demand from other equipment.
Install or use accessible pressure gauges and flow measurement points on the main pipeline and critical branches. Stable pressure and flow help distinguish a water quality problem from a hydraulic disturbance.
Step 4: Rule Out Feed and Equipment Problems
If water quality and hydraulic conditions are stable, investigate other possible causes, including:
- Changes in ore mineralogy or particle size.
- Fluctuating feed rate or slurry solids concentration.
- Worn shaking table decks or unsuitable operating settings.
- Uneven spiral chute feed distribution.
- Incorrect splitter positioning or localized equipment blockage.
The key diagnostic principle is to verify the shared water system before making major adjustments to individual separation machines.
4. Why Can a Settling Tank Fail to Clarify Circulating Water?
A settling tank may have sufficient apparent surface area but still produce cloudy overflow if its effective settling time is inadequate.
Several common design and operating problems can reduce clarification efficiency.
- Short-circuit flow:If the return-water inlet and the clarified-water outlet are too close, incoming turbid water may reach the withdrawal point before suspended solids have settled.
- Insufficient effective volume:Accumulated sediment reduces the usable tank volume, shortening the effective residence time and reducing solids storage capacity.
- Poor flow distribution:Missing or ineffective baffles can create preferential flow paths, dead zones, and uneven solids distribution.
- Excessive solids loading:During periods of high ore throughput or increased clay content, the solids entering the tank may exceed its clarification capacity.
To identify these problems, inspect the inlet and outlet arrangement, observe the flow pattern, check bottom sediment accumulation, and measure turbidity at the return-water inlet and withdrawal point.
Potential improvements include installing or repositioning baffles, removing accumulated sediment, separating muddy return water from clarified water, and relocating the withdrawal point to a more stable clarification zone.
For plants with high fine-clay loads, a dedicated thickening or clarification stage may be more effective than relying on a single settling pond.
5. How Can a Gravity Separation Plant Reduce Circulating Water Turbidity?
The most effective treatment strategy depends on where the suspended fines enter the water circuit and how readily they settle.
(1) Separate Slime Water Before It Enters the Main Circuit
Where the ore contains substantial clay or ultrafine material, remove or separate the slime fraction as early as practical during washing, screening, or hydraulic classification.
Routing high-solids slime water to a dedicated treatment stage reduces the load on the main circulating water system and helps protect downstream gravity separation equipment.
The treatment design should account for valuable minerals in the fines. Rejecting all muddy water without checking its mineral content may increase metal losses.
(2) Improve Settling Tank Performance
For small and medium-sized gravity separation plants, a properly designed multistage settling system can provide a practical way to improve water reuse.
A typical arrangement separates the process into:
- A primary settling stage for heavier suspended solids.
- A secondary clarification stage for finer particles.
- A clarified-water storage or withdrawal zone supplying the process water circuit.
Each stage needs sufficient effective volume, suitable flow distribution, and accessible sediment removal facilities. The number of stages alone does not guarantee good clarification.
(3) Use Flocculants Only After Testing
Fine clay particles may settle too slowly for conventional settling tanks to remove them efficiently. In these cases, a suitable flocculant can improve particle aggregation and settling.
However, reagent selection and dosage should be determined through laboratory or field settling tests. The addition point, mixing conditions, sludge characteristics, and residual reagent concentration in recycled water should also be evaluated.
Residual flocculants may change particle aggregation and slurry behavior, potentially affecting subsequent gravity separation. Therefore, improved water clarity does not automatically mean improved mineral recovery.
(4) Monitor Water Quality as a Process Control Variable
Circulating water turbidity should be monitored alongside slurry concentration, water flow, and pump pressure.
Where possible, establish normal operating ranges based on plant trials rather than applying a universal turbidity threshold. Different ores and gravity separation circuits can respond differently to the same suspended solids concentration.
Trending these parameters helps operators detect deterioration before concentrate bands and separation boundaries become visibly unstable.
Conclusion
Cloudy circulating water can destabilize shaking tables and spiral chutes by introducing excessive suspended fines, altering slurry flow behavior, interfering with particle separation, and contributing to inconsistent water supply conditions.
When both machines lose separation efficiency simultaneously, operators should first investigate circulating water quality, settling tank performance, pump pressure, and branch flow rates. Synchronized measurements and controlled clean-water trials can help distinguish water-related problems from changes in feed conditions or equipment performance.
The most effective recovery strategy is to improve water clarification, stabilize hydraulic conditions, maintain consistent feed concentration, and then optimize individual equipment settings. By controlling suspended solids at the source, maintaining effective settling capacity, and monitoring recycled water continuously, gravity separation plants can achieve more stable separation boundaries, reduce middlings, and improve the consistency of concentrate grade and recovery.
