Pump/Valve Maintenance & Troubleshooting in Mineral Processing Plant

Pumps and valves are critical components in mineral processing plants, ensuring the smooth movement of slurries, water, and process fluids. Proper maintenance and timely troubleshooting are essential to prevent costly downtime and equipment failures. This article covers the roles of pumps and valves, routine maintenance practices, troubleshooting techniques, and guidelines for replacing key wear parts.

The Role of Pumps and Valves in Mineral Processing Plants

1. Core Pump Types in Mineral Processing Plants

Different types of pumps are used depending on the application:

  • Slurry Pumps– Designed to handle abrasive mixtures, commonly used in grinding and flotation circuits.
  • Froth Pumps– Specialized for transporting froth in flotation processes, requiring careful handling to maintain efficiency.
  • Clean Water/Circulation Pumps– Used for water supply, cooling systems, and tailings transport.
  • Thickener Underflow Pumps– High-pressure pumps for dense underflow slurries from thickeners.
slurry pump
slurry pump

Benchmarks for Key Operating Parameters of Pumps Commonly Used in Mineral Processing Plants

Establish a benchmark table for core operating parameters for pumps commonly used in mineral processing plants based on pump type, medium characteristics (density, particle concentration, corrosiveness), and process requirements. The following is a benchmark table for core operating parameters (Note: The table below serves as a reference for standard operating conditions and a baseline for troubleshooting; for specific equipment models, please refer to the original manufacturer’s manual).

Pump Type Operating Current Range Outlet Pressure Range Allowable Shaft Seal Leakage Bearing Temperature Limit Applicable Conditions
Slurry Pump 70%–95% of rated current Design pressure +10% Packing: 10-20 drops/min; Mechanical seal: no visible leakage ≤75°C Grinding classification, hydrocyclone feed, tailings conveying
Froth Pump 60%–85% of rated current Slightly lower than the same-specification slurry pump Mechanical seal: ≤5 drops/min ≤70°C Froth flotation concentrate conveying
Clean Water/Circulation Pump 75%–90% of rated current Rated pressure ±5% Packing: 5-10 drops/min ≤70°C Production water supply, return water conveying
Thickener Underflow Pump 75%–100% of rated current Design value +15% Packing: 5-30 drops/min ≤80°C Thickener underflow, concentrate transport



2. Types of Matching Valves and Common Faults

Common valves in mineral processing include:

  • Ball Valves– Used for shut-off applications, but prone to wear in slurry service.
  • Butterfly Valves– Common in large pipelines; seal wear and disc misalignment are typical issues.
  • Knife Gate Valves– Ideal for viscous slurries; common problems include blade erosion and seal leaks.
  • Pinch Valves– Effective for slurries, but the rubber sleeve degrades over time.

Common malfunctions include leakage, clogging, excessive wear, and actuator failure. Listed below are the types of valves associated with the aforementioned pumps, along with their common faults.

Slurry Pumps

  • Main Valves: Inlet knife gate valves, outlet check valves, flow control valves.
  • Common Faults: Gate wear, valve plug detachment, check valve jamming.

Froth Pumps

  • Main Valves: Inlet butterfly valves, outlet control valves.
  • Common Faults: Jamming due to material buildup, sealing surface wear.

Clean Water/Return Water Pumps

  • Main Valves: Globe valves, check valves.
  • Common Faults: Internal leakage, gland packing leakage.

Thickener Underflow Pumps

  • Main Valves: Inlet knife gate valves, pinch valves, outlet check valves, control valves, diaphragm valves.
  • Common Faults: Knife gate valve jamming, pinch valve rupture, control valve cavitation, check valve failure, seal leakage.

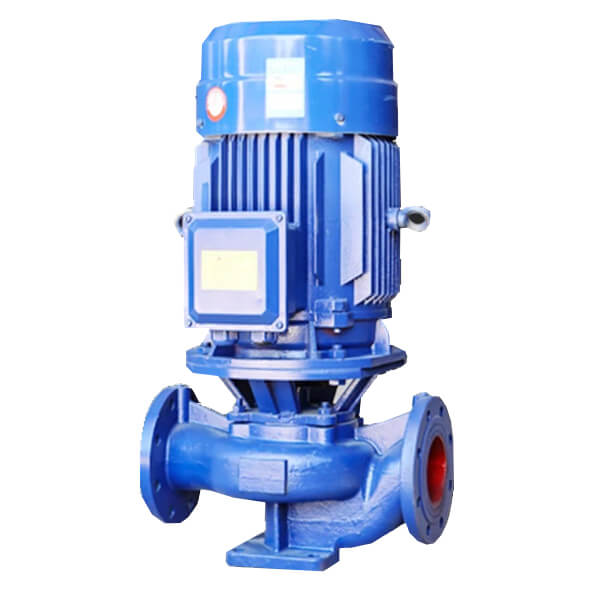

Clean Water Pump
Clean Water Pump

Routine Maintenance of Pumps and Valves

Preventive maintenance extends equipment life and reduces unplanned downtime. Key practices include:

  • Lubrication– Ensure bearings and shafts are properly lubricated.
  • Seal Inspection– Check mechanical seals for leaks and replace if damaged.
  • Vibration & Alignment Monitoring– Misaligned pumps cause premature wear and should be realigned regularly.
  • Valve Operation Checks– Ensure smooth operation, no sticking, and no excessive torque.
  • Flushing & Cleaning– Remove buildup in pipelines and valves to prevent blockages.

Troubleshooting Pump and Valve Failures

General Troubleshooting Principles

Follow a four-step sequence for troubleshooting—starting with external components before internal ones, operating conditions before equipment, and wear-prone parts before main components—and prioritize inspections that do not require shutdown to minimize unnecessary disassembly:

  1. Inspect the exterior: Check for leaks, vibration, unusual noises, and the position of the valve stem;
  2. Verify parameters: Compare current, pressure, and flow rate against the reference ranges to identify any deviations;
  3. Check operating conditions: Verify slurry concentration, particle size, inlet liquid level, and the actual valve opening;
  4. Disassemble internal components: If the above checks yield no results, shut down the equipment and disassemble the flow-through components, seals, and bearings for inspection.

Troubleshooting Three Common High-Frequency Faults

Fault 1: Insufficient Flow / Deteriorated Discharge

Quantifiable symptoms: Flow rate falls below 85% of the design value, or discharge pressure drops by more than 10% from the normal range and remains unstable; the pump body emits a muffled sound; in severe cases, discharge ceases completely, and the motor overloads.

Troubleshooting Sequence (from simplest to most complex)
  1. Check inlet and valves: Inspect the inlet strainer for blockages; verify the actual opening of gate/butterfly valves (distinguishing between “indicated opening” and actual flow area); check the discharge check valve for sticking or a detached valve core.
  2. Check material conditions: Increased slurry concentration or a higher proportion of coarse particles can easily impede feed flow.
  3. Check for sealing and air intake issues:
  • Air binding: Air leaks at the inlet flange or gland packing prevent the pump from building pressure; Remedy: Tighten seals, locate and fix leaks, and raise the inlet liquid level.
  • Cavitation: Inlet pressure falls below the medium’s saturated vapor pressure, causing bubble collapse that erodes components; Remedy: Increase inlet pressure and/or lower the temperature of the conveyed medium.
  1. Shut down and disassemble to inspect flow-path components (impeller, front/rear liners, volute liner): Wear causes a drop in volumetric efficiency.
Handling Key Points
  1. Back-flushing for minor blockages: Close the discharge valve, open the pump chamber flush water valve, and back-flush for 3–5 minutes; simultaneously rotate the coupling manually to ensure there is no binding, then slowly open the discharge valve to resume feed. Forced startup under load is prohibited.
  2. If a valve core has detached or the check valve has failed, prioritize repairing the valve rather than simply adjusting the pump itself.
  3. For cavitation or air binding, prioritize addressing conditions on the feed side; do not blindly open the discharge valve wider.

Fault 2: Excessive Wear / Shortened Spare Part Lifespan

Quantifiable symptoms: The actual service life of wear parts is more than 30% shorter than the station’s historical baseline; efficiency gradually declines, accompanied by localized uneven wear.

Troubleshooting Sequence
  1. Assess material conditions: Increased ore abrasiveness, higher slurry concentration, and a larger proportion of coarse particles are primary causes of accelerated wear.
  2. Verify material compatibility:
  • High-abrasion, fine-particle, low-impact conditions: Prioritize wear-resistant ceramics.
  • Coarse-particle, high-impact conditions: Select high-chromium alloy cast iron; do not blindly choose ceramics regardless of conditions, as coarse-particle impact can easily cause fracturing.
  1. Check operating conditions: Prolonged operation outside rated flow and pressure significantly worsens wear.
  2. Inspect installation status during shutdown: Pump-motor misalignment and loose foundation bolts can lead to uneven wear damage.

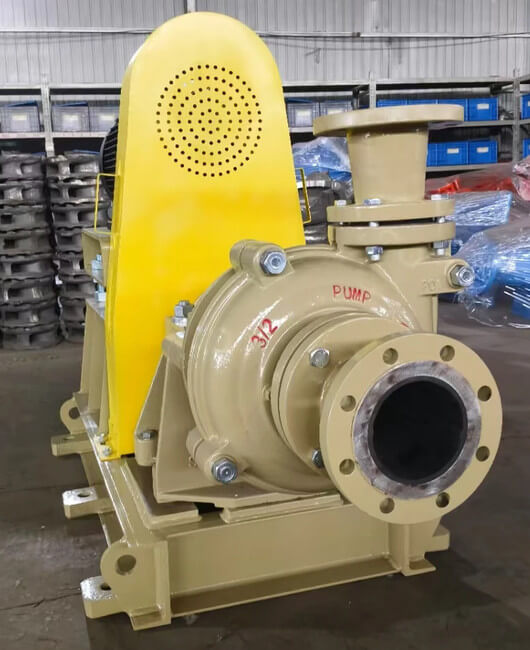

forth pump
forth pump
Remedial Measures
  1. If ore properties change permanently, prioritize matching the material of flow-path components rather than relying on frequent part replacements to cope.
  2. Prioritize process adjustments to bring the pump within its rated operating range; this extends service life more effectively than simply upgrading spare parts.
  3. In cases of uneven wear, first check alignment and foundation tightness; do not merely replace the worn parts.

Fault 3: Abnormal vibration/noise and excessive slurry leakage at the shaft seal

Quantifiable symptoms: Vibration significantly exceeds equipment limits; bearing temperature rise approaches the threshold; shaft seal leakage exceeds the allowable drip rate for the specific pump model.

Troubleshooting Sequence
  1. Inspect the shaft seal system:Check for gland packing wear or loose glands and mechanical seal damage. Verify seal water: Mechanical seal water pressure should be 0.05–0.1 MPa higher than the pump chamber pressure; for packing seals, a slight, continuous drip is appropriate.
  2. Check bearings and lubrication status: Degraded grease or insufficient lubrication can cause temperature rises and abnormal noise.
  3. Verify foundation and alignment: Loose foundation bolts and coupling misalignment are common causes of high vibration.
  4. Internal inspection: Check for impeller imbalance due to wear and cavitation damage.
Key Handling Points
  1. Gland Packing: Tighten gland bolts evenly and symmetrically, turning no more than 1/4 of a turn at a time; ensure the gland does not tilt to avoid rapid wear of the shaft sleeve. Minor leakage is permissible; overtightening accelerates sleeve wear.
  2. Vibration Issues: First tighten the mounting bolts and check alignment, then inspect the bearings; do not immediately replace the bearings.
  3. For vibration and abnormal noise caused by cavitation, prioritize optimizing the inlet feed conditions.

Reference Criteria for Replacing Key Wear Parts

Wear PartsCorresponding PumpNormal (Medium/Low Load)Severe (High Load/High Concentration)Replacement Criteria
Impeller / Wear Plate / LinerSlurry PumpInspect every 3–4 months; Replace every 6–8 monthsInspect every 1.5–2 months; Replace every 3–4 monthsWear depth exceeds design value by 1/3; flow rate decreases by ≥5%
Impeller / Wear Plate / LinerThickener Underflow PumpInspect every 2–3 months; Replace every 4–6 monthsInspect monthly; Replace every 2–3 monthsOutlet pressure fluctuates significantly; efficiency continues to decrease
Impeller / Wear Plate / LinerClean Water/Circulation PumpInspect every 12–18 months; Replace every 2–3 yearsInspect every 6–12 monthsPump head drops by ≥10%; obvious cavitation occurs
Packing SealAll SeriesInspect every 1–2 months; Replace every 3 monthsInspect every 2–4 weeks; Replace every 1–2 monthsLeakage exceeds allowable limit after pressure adjustment; packing becomes hardened
Bearing AssemblyAll SeriesInspect every 6 months; Replace every 1–2 yearsInspect every 3 months; Replace every 6–12 monthsTemperature exceeds limit; continuous abnormal noise; poor lubrication; persistent abnormal vibration

Conclusion

Effective maintenance and troubleshooting of pumps and valves are vital for mineral processing efficiency. Regular inspections, lubrication, and timely part replacements minimize downtime and operational costs. By following structured maintenance schedules and addressing failures proactively, plants can enhance equipment longevity and productivity.
