Gold recovery not only saves costs but also reduces resource waste. Yet many don’t know where to start. Discarded electronics, industrial waste, and even old jewelry contain hidden gold.
Methods for recovering gold from scrap include chemical processes, electrolysis, and pyrometallurgy. Different materials require different approaches. Solutions use replacement methods, alloys suit smelting, plated items often need stripping. Dust and garbage require pre-sorting. Choosing the right method improves efficiency and reduces pollution.
The first step is identifying the scrap type. Different gold-bearing materials vary greatly in processing difficulty. Below I’ll detail specific recovery techniques for each category.
Why Recover Gold from Scrap?
Gold is scarce. Mining consumes massive energy yearly. Recycling scrap gold helps ease supply pressure.
Gold recovery is more eco-friendly than mining. One ton of ore contains mere grams of gold, while e-waste holds 10-50 times more. Recycling one ton of mobile phones yields 150-300g gold – equivalent to saving 2 tons of ore.
Environmental and Economic Benefits
Comparison table:
| Factor | Primary Mining | Gold Recycling |
| Energy | High (crushing/smelting) | Low (direct refining) |
| Pollution | Cyanide contamination | Controlled chemical treatment |
| Cost | $1200+/oz | $300-800/oz |
Key points:
- E-waste contains 10-50x more gold than ore
- Recycling reduces mining waste by 99%
- Industrial scrap like circuit boards maintains 0.1-0.3% gold content
Case study: Taking the United States as an example, 80.6 metric tons of recycled gold were produced in 1974, accounting for 56% of that year’s total gold production, indicating that the economic benefits were quite substantial.
What Are the Types of Gold-Bearing Scrap?
Gold-bearing waste materials can generally be classified into the following categories:
- Liquid Waste: Waste liquids containing dissolved gold ions—such as spent electroplating solutions, rinse water from gold-plated parts, aqua regia etchants, and cyanide or chloride waste solutions—serve as key raw materials for wet-process gold recovery.
- Alloys: Discarded alloy components containing gold and other metals (e.g., gold-platinum, gold-iridium, gold-antimony). This category includes scraps and decommissioned parts, typically characterized by high gold content.
- Gold-Plated Items: Discarded components with a gold layer applied via electroplating, such as gold-plated electronic contacts, decorative fittings, and waste circuit boards; the gold is concentrated in the surface plating layer.
- Gold-Leaf/Foil Items: Waste materials featuring gold leaf or foil applied via adhesion, including gold-painted plaques, gilded statues, theatrical costumes with gold thread, and gold-leaf ornaments; the gold adheres to the substrate surface as a thin layer.
- Dust and Powders: Gold-bearing powdery waste, including grinding and polishing dust from jewelry factories, residue from gold-leaf production, gold-bearing ash, and spent emery abrasives; the gold exists as fine particles mixed within the dust.
- Mixed Waste/Debris: Gold-bearing materials found within waste from specific environments—such as demolition debris from historic buildings, sweepings from precious metal smelting workshops, and fragments from dismantled gold-refining furnaces—where the gold is dispersed throughout the solid waste.
- Ceramics: Discarded ceramic vessels, toys, and similar items featuring gold-painted or gilded decorations; the gold adheres to the ceramic surface as a painted coating, representing a supplementary category within this classification system.
Understanding the scrap type is critical—now let’s explore proven recovery techniques.
How to Recover Gold from Gold-Bearing Waste Liquids?

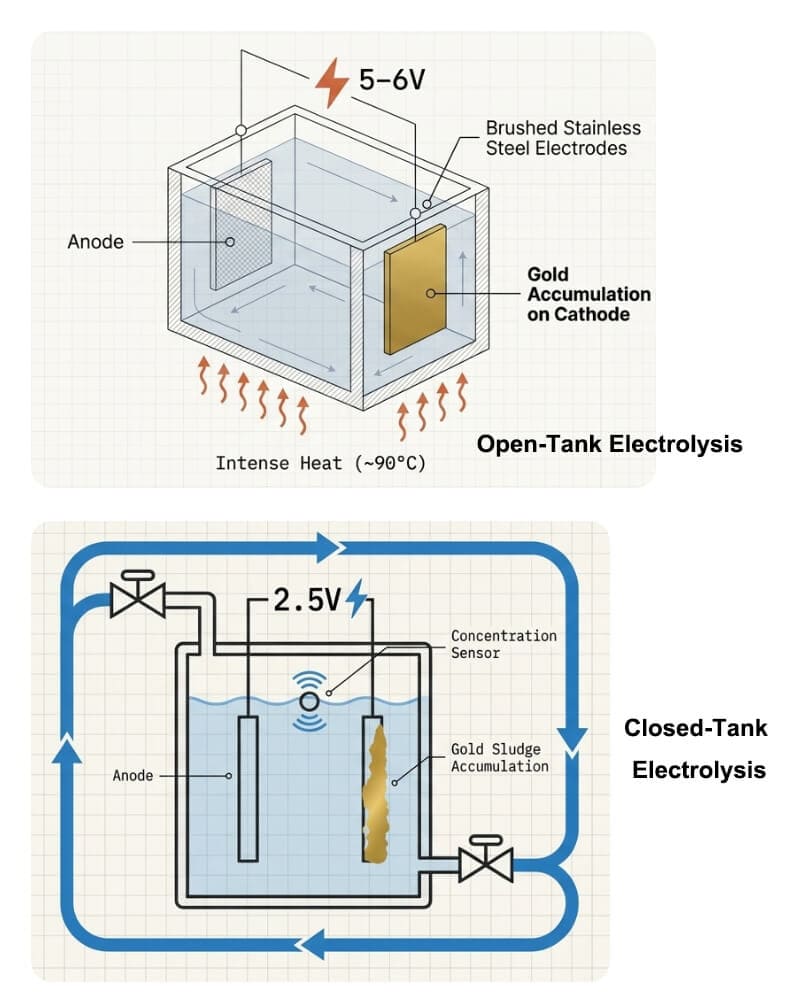

1. Electrolysis Method
The electrolysis method includes open-tank electrolysis and closed-tank electrolysis. The principle involves introducing auriferous waste liquid into an electrolytic cell, where electrolysis produces an ionization reaction near the anode, causing gold to dissociate and deposit on the cathode.
Open-Tank Electrolysis
- The waste liquid in the container is heated to ~90°C, with stainless steel electrodes under 5–6V
- Once gold deposits on the cathode reach a certain thickness, they are scraped off and smelted into gold ingots.
Closed-Tank Electrolysis
- Electrolysis proceeds at 5V; once the gold concentration drops below a target level, new waste liquid is introduced.
- The deposition continues until sufficient gold accumulates on the cathode.
- The gold sludge is scraped from the cathode, dried, and smelted into ingots.
2. Displacement Method
- First, hydrochloric acid is used to acidify the waste liquid to pH 1–2.
- The solution is then diluted 5-fold with distilled water (unless it is already rinse water).
- Zinc wire is added for displacement until the reaction completes.
- The resulting gold sludge is collected, rinsed with distilled water to neutrality, treated with sulfuric acid, dried, and smelted into ingots.
3. Electrowinning Method
The electrowinning method is a technology developed in recent years to directly obtain pure gold from solutions rich in gold and silver. In the electrolysis cell, stainless steel serves as the anode and steel wool as the cathode. Electrodeposition takes place at room temperature; when a direct current is applied, gold deposits on the cathode. The steel wool, now coated with a layer of gold, is soaked in a 1:1 solution of industrial hydrochloric acid to remove the stainless steel wool and other impurities. The treated gold powder is dried, placed in a crucible, and mixed with borax (8%–25%), sodium carbonate (5%–30%), silicon dioxide (5%–25%), and an appropriate amount of potassium nitrate. After smelting at 1200°C for 15–25 minutes, gold ingots with a purity of 92%–93% are obtained.
Key Notes
- Electrolysis: Effective for high-concentration solutions but requires energy.
- Displacement (Zinc Method): Simple and low-cost but introduces impurities.
- Electrowinning: High-purity recovery but demands strict conditions.
Having explored gold recovery from liquid waste, we now turn to a greater challenge: extracting gold from alloy scraps. Here, gold is often tightly bound with other precious metals, requiring specialized separation techniques.
How to Recover Gold from Alloy Scraps?
1. From Gold-Platinum (Gold-Palladium) Alloy Scraps
Gold and platinum (palladium) do not dissolve in nitric acid but dissolve in aqua regia. Dissolve the alloy in aqua regia, separate platinum using NH4Cl, and recover gold from the solution.
2. From Gold-Iridium Alloy Scraps
Mix the alloy scrap with sodium peroxide (or additionally with sodium hydroxide), heat to melt, then pour onto an iron plate to form thin sheets. After cooling, leach it with water—some iridium sodium salts enter the solution, while most iridium remains in the residue. Treat the residue with dilute hydrochloric acid under heat to dissolve iridium, filter it, and pass chlorine gas through the filtrate while adding saturated ammonium chloride solution to recover iridium. The filter residue is treated with aqua regia, and gold in the filtrate is reduced using ferrous sulfate.
3. From Gold-Antimony (Gold-Aluminum) Alloy Scraps
Dissolve the alloy by boiling in diluted aqua regia (acid: water ratio 1:3), then reduce the gold using sulfur dioxide gas.
Unlike alloys, gold in plated items is concentrated in a thin surface layer, necessitating completely different extraction methods. Below are two distinct approaches to stripping gold, each suited for different scenarios.
How to Recover Gold from Gold-Plated Waste?
1. Fire-Based Stripping (Pyrometallurgical Process)
This method uses lead to extract gold at temperatures above lead’s melting point (327°C), forming “noble lead.” Gold is then recovered via cupellation or electrolysis.
Cupellation, traditionally used in silver refining to separate lead and silver, takes advantage of gold-lead and silver-lead miscibility as well as gold-silver alloy formation. The noble lead (containing both gold and silver) is mixed with additional silver, and air is blown to oxidize the lead into furnace ash. The resulting alloy is water-quenched to obtain gold-silver particles, which are then separated using nitric acid to isolate gold powder for smelting into ingots.
2. Chemical Stripping
Prepare a stripping solution by mixing 75g sodium cyanide and 75g sodium meta-nitrobenzene sulfonate per liter of water. Immerse gold-plated scraps into this solution at 90°C—the gold plating will strip off within 1–2 minutes. If the solution reaches gold saturation, replace it with fresh stripping solution.
Conclusion
Gold recovery is a remarkable art—transforming waste into valuable resources. Whether extracting trace amounts from e-waste or recovering high-purity gold from alloys, each material demands a tailored approach. Through techniques like electrolysis, displacement, and pyrometallurgy, we achieve not just financial gains but also contribute to environmental sustainability.
For professionals and eco-conscious individuals alike, mastering these methods holds great significance. With advancements in green technology, gold recovery is becoming more efficient and eco-friendly. This guide serves as a practical roadmap for reclaiming gold efficiently.
A final reminder: Safe and scientifically sound practices are essential. Before attempting any method, ensure you have proper safety measures and expert guidance in place.
