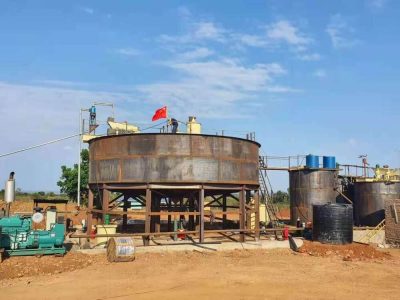

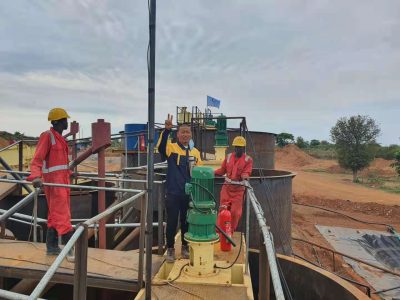

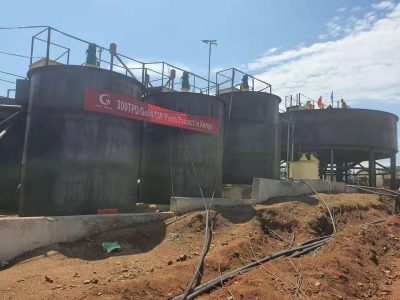

JXSC has provided a successful 300TPD rock gold CIP processing plant in Kenya. We design the CIP gold plant process flowchart & plant layout drawing according to ore conditions, provide a complete set of plant machines, and send Chinese engineers to the mine site for plant installation & commissioning guidance.
EPCS
Engineering, Procurement & Construction Services
Case Study: Rock Gold CIP Project
Project Overview
Minerals
Rock Gold Ore
Capacity
300 TPD / 12 TPH
Feed Size
≤ 25 mm
Location
Kenya
Project Process
Solutions & Process
Gold CIP Process Plant
The crushing plant is for crushing large rocks into smaller sizes (0-20mm), then feeding them into a ball mill for grinding to 200 mesh, then making a 200 mesh slurry to the desired pulp concentration by thickener. Concentrate ore from the thickener will go to leaching tanks, adsorption agitation tanks, and activated carbon will be put in adsorption tanks to absorb gold.
After eluting the gold-loaded carbon, the precious liquid enters the desorption electrolysis equipment to enrich the gold mud. After drying the gold mud, smelt it into gold bars.
The Gold CIP plant has a very high recovery ratio for oxide & sulfide type gold. It is currently an internationally popular gold beneficiation technology, also the trend of gold beneficiation development.
MQZ1836 Ball Mill Used in This Case
JXSC Ball Mill is Widely Used in the Rock Gold Processing plant for grinding rock to very fine powder 200mesh or 0-1 mm. This Video is a ball mill Model MQZ1836 applied in our Kenya Customer’s 300TPD Gold Tailing Material CIP Processing Plant.
For this project, the feeding size of gold tailing material to the ball mill is 0-3mm, output size needs to reach 85% 200mesh by using hydrocyclones or spiral classifier working together. So based on this feeding size and output size, the processing capacity of this model can reach about 12TPH. If the bigger feeding size (10-20mm), the process capacity reaches about 8-10TPH. The exact process capacity depends on inpu & output size.
MQZ1836 Ball Mill main Specifications:
- Drum Size: 1800*3600mm (Dia*L)
- Power: 155 KW
- Rotary Speed: 25.2-27 RPM
- Reduction Ratio: 3.55
- Machine weight: 32 Tons
This Complete set of Ball Mill includes the following machine parts:
- Rotary Drum
- Wear-resistant Lining Plates inside the drum
- Motor & Reducer
- Big & Small Gears
- Coupler & Bearing & Bearing seat & Bearing cover
- Frame & Frame for driving part
- Feeding device & feeding screw
We also provide the ball mill work-related devices, electric control cabinet, and steel balls for the MQZ1836 ball mill, which generally need 11 tons of steel balls.
