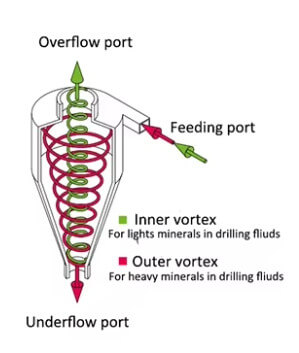

A hydrocyclone is one of the key pieces of equipment in closed-circuit grinding and classification. When coarse particles appear in the overflow or the product fineness becomes unstable, the first reaction in many plants is to adjust the feed pressure.
However, pressure is only one of several variables affecting hydrocyclone performance. If the feed density, solids loading, apex condition, or other operating conditions are not checked first, repeatedly adjusting pressure can make the situation worse—causing overgrinding, excessive slimes, unstable classification, and even lower downstream recovery.
This guide provides a practical troubleshooting framework covering normal operating parameters, common overflow and underflow problems, adjustment procedures, and wear-part inspection. It is intended as a quick reference for operators, process engineers, and maintenance personnel.
Important: The values in this guide are general field references for conventional closed-circuit grinding and classification. Actual operating limits should always be determined by the hydrocyclone manufacturer‘s design specifications, ore characteristics, target particle size, and the plant’s established stable operating conditions.
Reference Table for Key Operating Parameters
The following are general reference ranges for standard closed-circuit grinding and classification operations; on-site adjustments should be based on maintaining stable operating conditions.
| Parameter | Typical On-site Reference Range | Description |
| Feed Pressure | 0.08–0.15 MPa | Closed-circuit grinding is generally suitable for normal operating conditions; insufficient pressure may result in coarse overflow, while excessive pressure may produce excessive fines and increase over-grinding. |
| Feed Ore Concentration | 25%–35% (solids by mass) | Increasing concentration generally reduces classification efficiency. Excessively high concentration can cause coarse particles to appear in the overflow; excessively low concentration may lead to insufficient classification and overly fine overflow. |
| Sediment Particle Size | Matched to the equipment design value; not recommended as a universal field standard | Selected according to processing capacity and target particle size; a larger sediment particle size may be used for coarse grinding. |
| Circulating Load Ratio | 200%–400% | Common range for closed-circuit grinding; too low may cause over-grinding, while too high may reduce grinding efficiency. |
Three High-Frequency Hydrocyclone Problems
Problem 1: Coarse Overflow
Typical Symptoms
Common signs include:
- Coarse particles visibly increasing in the overflow.
- Overflow particle size becoming progressively coarser.
- Grinding product fineness falling below target.
- Downstream flotation or gravity separation performance deteriorating.
- Increasing coarse mineral losses if valuable minerals remain insufficiently liberated.
Recommended Troubleshooting Sequence
Follow this order:
Feed density and feed rate → Feed pressure → Apex → Vortex finder and other wear components
This sequence is important because operating-condition changes should be eliminated before mechanical wear is blamed.
Possible Causes and Corrective Actions
1. Feed density is too high
A high solids concentration can increase slurry viscosity and reduce the effectiveness of classification, allowing more coarse particles to report to the overflow.
Action:
Gradually add process water and bring the feed concentration back toward the established operating range. Once the density is stable, monitor the overflow size before making another adjustment.
Do not simultaneously make a large pressure adjustment. Otherwise, it becomes difficult to determine which change produced the result.
2. Feed pressure is too low
Insufficient pressure may reduce the centrifugal forces available for separation and result in a coarser cut.
Action:
Increase feed pressure gradually. As a practical field approach, make small adjustments—such as 0.01–0.02 MPa at a time where appropriate—and allow the circuit to stabilize before evaluating the response.
The exact adjustment increment should depend on the cyclone size, pump system, and control configuration.
3. Apex is excessively worn
As the apex wears, its opening becomes larger. This can change the underflow split and classification behavior and may eventually produce a coarser overflow.
Action:
Inspect:
- Apex opening diameter.
- Opening shape.
- Erosion pattern.
- Underflow spray pattern.
- Changes in underflow density and flow rate.
If the opening has increased significantly and classification performance has deteriorated, replace the apex according to the manufacturer’s allowable wear limit and the required separation size.
WARNING — Do not compensate for a severely worn apex simply by increasing pressure.
Pressure adjustment cannot reliably restore the original geometry of a worn cyclone.
Problem 2: Excessively Fine Overflow
Excessively fine overflow is sometimes less obvious than coarse overflow because the product may initially appear to meet the fineness target. However, excessive fines and slimes can increase grinding energy consumption and adversely affect downstream separation.
Typical Symptoms
- Overflow particle size becomes finer than the target.
- Slime content increases.
- Flotation feed becomes excessively fine.
- Flotation froth may become sticky or difficult to control.
- Mill circulating load and power consumption may change unexpectedly.
Recommended Troubleshooting Sequence
Feed rate and density → Feed pressure → Apex condition/blockage
Possible Causes and Corrective Actions
1. Feed density is too low
Excess dilution can increase classification selectivity toward finer particles.
Action:
Reduce unnecessary process water addition and gradually restore the feed density to the established operating range.
2. Feed pressure is too high
Excessive pressure can alter the cut size and may result in a finer classification product.
Action:
Reduce pressure gradually and monitor the overflow particle-size response.
Avoid large one-time pressure changes. A hydrocyclone circuit has considerable residence and response time, so changes should be evaluated only after the operating condition has stabilized.
3. Apex is too small or partially blocked
A restricted apex can disrupt the normal underflow discharge and alter the internal flow field.
Action:
Check for:
- Foreign material blockage.
- Mineral buildup.
- Reduced effective opening.
- Abnormal underflow pattern.
- Damage or deformation.
If replacement is necessary, select an apex based on the cyclone design and target classification size, rather than simply choosing the next larger or smaller standard size.
Problem 3: Abnormal Underflow Pattern
Underflow appearance is one of the quickest visual indicators available to field operators.
A properly operating cyclone normally produces a stable, open spray or “umbrella”-shaped underflow. The exact spray angle varies with cyclone geometry and operating conditions, so a fixed angle should not be treated as a universal acceptance criterion.
Common Underflow Patterns
| Underflow pattern | Typical indication | Priority checks |
| Stable spray/umbrella | Generally normal operation | Continue monitoring density, pressure, and particle size |
| Rope-like discharge | Restricted apex, high feed density, or blockage | Check density → inspect/clean apex |
| Excessively wide or watery spray | Excessively worn apex or insufficient pressure | Check pressure → inspect apex |
| Intermittent or pulsing discharge | Possible blockage, unstable feed, air entrainment, or pump/circuit instability | Check feed stability, apex, pressure, and pump condition |
Rope-like Underflow
A rope-like discharge is commonly associated with:
- Apex opening being too small.
- Apex blockage.
- Excessively high feed density.
- Unstable operating conditions.
Action:
First verify feed density. Then inspect the apex for blockage or restriction. If the apex size is inappropriate or severely worn/damaged, replace it with the correct design specification.
Excessively Dispersed or Watery Underflow
Possible causes include:- Low feed pressure.
- Excessively worn apex.
- Excessive water reporting to the underflow.
- Broader circuit instability.
General Steps for On-Site Adjustment
Cyclone parameters are highly interdependent; an incorrect adjustment sequence can easily lead to fixing one issue causing another to arise. On-site adjustments should follow this priority: stabilize feed concentration first, adjust pressure second, and inspect structural components last.
Step 1: Stabilize Feed Concentration
Feed concentration is the foundation of classification performance. Particle size fluctuations caused by concentration instability are difficult to rectify merely by adjusting pressure. If anomalies occur, first verify the concentration; only after stabilizing it within the normal range should you evaluate the classification performance.
Step 2: Adjust Pressure
If performance metrics remain abnormal after stabilizing the concentration, make small adjustments to the feed pressure. Adjust only one variable at a time; typically, observe the system for 15–30 minutes to confirm the effect and direction of the change before considering further optimization. Rapid, large-scale adjustments are not recommended.
Step 3: Inspect Structural Components
If pressure and concentration are normal but classification performance remains consistently abnormal, inspect wear-prone parts—such as the apex (underflow) nozzle and vortex finder (overflow pipe)—and replace them with parts matching the design specifications. Do not attempt to compensate for structural wear issues solely by adjusting pressure.

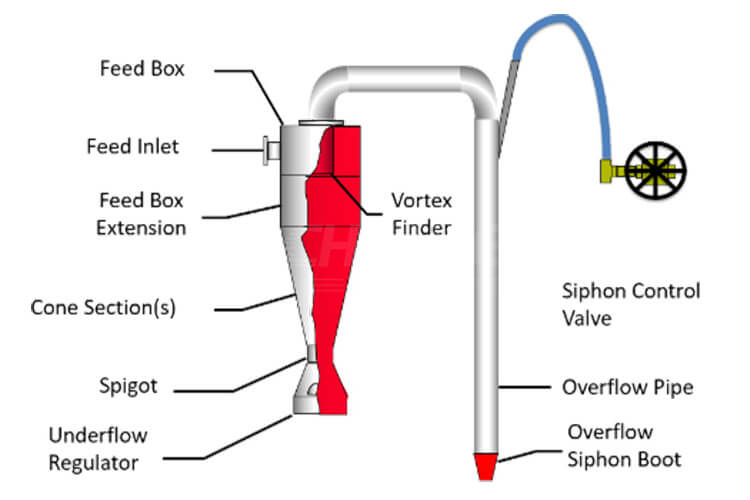

Wear-Part Inspection and Replacement
1. Apex (Spigot/Underflow Nozzle)
Replacement Criteria
- Significant change in effective diameter or roundness
- Noticeable wall thinning or irregular wear profile
- Combined with persistent underflow abnormality or classification inefficiency
- Note: Follow manufacturer’s specified tolerance (avoid universal “3 mm rule” due to design variations)
Inspection Interval
- Standard conditions: Every 3–6 months
- Highly abrasive ores/high throughput: Shorten to 1–3 months
Material Upgrade
- For abrasive ores: Silicon carbide (SiC) or ceramic for extended service life
2. Vortex Finder (Overflow Pipe)
Replacement Criteria
- Measurable internal diameter enlargement or asymmetric wear
- Visible cracks, deformation, or liner penetration
- Overflow particle size inconsistency after ruling out other factors
Inspection Interval
- Standard conditions: 6–12 months
- Severe erosion observed: Replace immediately
Material Note
- High-chrome alloys for balanced cost-performance
- Tungsten carbide for extreme abrasion resistance
3. Cone & Internal Liners
Replacement Criteria
- Thickness below 60% of original or manufacturer’s minimum
- Localized thinning, cracks, or exposed shell
Inspection Protocol
- Scan for uneven wear patterns during shutdowns
- Geometry-critical zones: Profile checks with template
Proactive Approach
- Never compensate through pressure adjustments– replace at threshold wear
Hydrocyclone Quick Troubleshooting Table
| Abnormal Phenomenon | Priority Troubleshooting Sequence | Common Causes | Corrective Action |
| Coarse overflow/fineness decrease | Concentration → Pressure → Spigot | Feed concentration too high; pressure too low; spigot wear | Adjust concentration; increase pressure; replace spigot |
| Excessively fine overflow; increased fine slimes | Concentration → Pressure → Spigot | Feed concentration too low; pressure too high; spigot too small | Increase concentration; reduce pressure; replace with a larger-size spigot |
| Rope-shaped underflow | Concentration → Blockage → Spigot | Concentration too high; spigot clogged or undersized | Reduce concentration; clear blockage; replace spigot |
| Curtain-like/water-screen underflow | Pressure → Spigot | Pressure too low; excessive spigot wear | Increase pressure; replace spigot |
Final Takeaway
When a hydrocyclone runs coarse, runs fine, or produces an abnormal underflow, the solution is rarely as simple as “increase pressure” or “reduce pressure.”
A more reliable field approach is:
- First stabilize the feed density and flow.
- Then verify and adjust pressure.
- Finally, inspect the cyclone geometry and wear parts.
At the same time, particle-size distribution, mineral liberation, circulating load, mill performance, and downstream process indicators should be considered together.
The visual appearance of the overflow and underflow is valuable for rapid diagnosis, but it should be treated as a starting point rather than the final diagnosis.
The most effective hydrocyclone troubleshooting combines operating data + particle-size analysis + equipment inspection + process performance.
Keep the quick-reference table near the control room, record every significant adjustment, and build a plant-specific database of stable operating conditions. Over time, this turns hydrocyclone troubleshooting from trial-and-error valve adjustment into a repeatable engineering process.
