Gold ores are mineral aggregates containing sufficient gold to make their extraction economically and technically feasible. Gold deposits are formed through geological processes and can vary significantly in mineral composition, gold particle size, and degree of mineralization. These characteristics directly affect the selection of gold beneficiation and extraction processes.

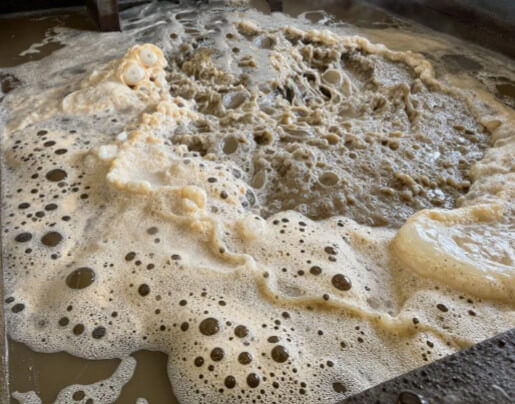

Flotation is one of the most widely used methods for processing gold ores, particularly those containing gold associated with sulfide minerals such as pyrite. By using suitable collectors, frothers, and flotation equipment, valuable gold-bearing minerals can be separated from gangue minerals and concentrated into a smaller volume of material for further treatment.
Depending on the ore characteristics and the distribution of gold within the mineral matrix, flotation can be combined with different recovery and extraction processes to improve gold recovery and processing efficiency. Common approaches include cyanide leaching or thiourea leaching of flotation concentrates, amalgamation followed by flotation, loaded stream flotation followed by cyanidation of tailings, and roasting of concentrates before cyanide leaching.
This article introduces five common flotation-based methods for gold ores, explaining their working principles, main advantages, and suitable applications.
5 Common Flotation Methods for Gold Ores

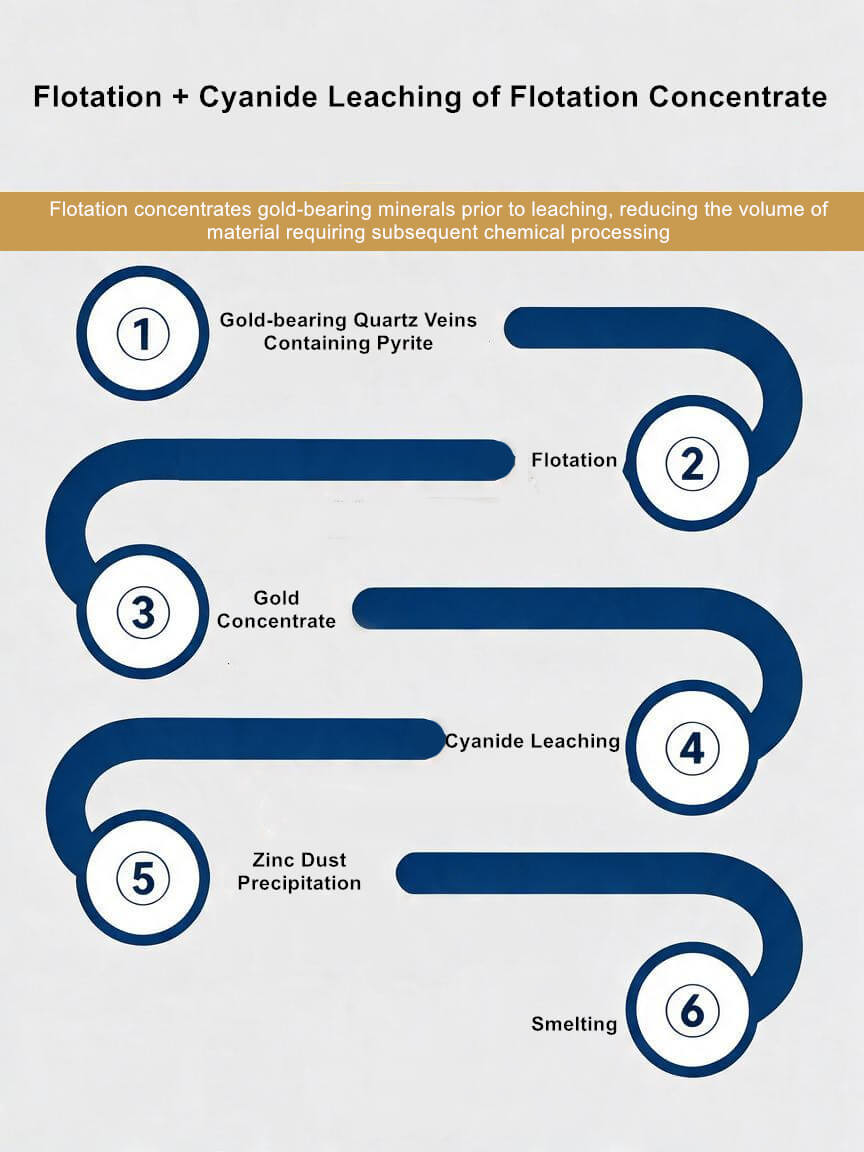

1. Flotation + Cyanide Leaching of Flotation Concentrate
Flotation followed by cyanide leaching of the flotation concentrate is a widely used method for processing gold-bearing quartz veins and gold-bearing quartz veins containing pyrite. It is particularly suitable for ores in which gold is closely associated with sulfide minerals.
During flotation, collectors such as xanthates are commonly used to promote the attachment of gold-bearing sulfide minerals to air bubbles, while frothers such as pine oil help produce and stabilize the froth. Under appropriately controlled pulp conditions, flotation separates the valuable minerals from gangue and produces a gold-bearing concentrate.
The concentrate is then subjected to cyanide leaching, during which gold dissolves into the cyanide solution and forms soluble gold complexes. The gold-bearing solution can subsequently be treated by zinc-powder precipitation to produce gold sludge, which is further refined through smelting to obtain metallic gold.
The main advantage of this method is that flotation concentrates the gold-bearing minerals before leaching, reducing the amount of material that must undergo subsequent chemical treatment. It is therefore an important option for suitable sulfide-associated gold ores.
2. Flotation + Thiourea Leaching of Flotation Concentrate
For certain gold ores containing high levels of arsenic or sulfur, or concentrates with substantial carbonaceous and clay-rich material, flotation followed by thiourea leaching may be considered as an alternative processing route.
In this process, flotation is first used to recover gold-bearing sulfide minerals and produce a concentrate. The concentrate is then treated with a thiourea-based leaching solution to dissolve gold for subsequent recovery.
Thiourea leaching has several potential advantages, including relatively rapid gold dissolution under suitable conditions, comparatively low acute toxicity relative to cyanide, and the possibility of relatively simple process operation. It may also provide favorable gold extraction results for certain refractory concentrates, depending on their mineralogical characteristics and the leaching conditions.
However, thiourea consumption, reagent stability, solution chemistry, and downstream gold recovery must be carefully evaluated. High arsenic or sulfur content, as well as carbonaceous material, does not automatically guarantee that thiourea leaching will outperform cyanidation. Representative ore testing is therefore essential to determine whether this method is technically and economically suitable.
3. Amalgamation + Flotation
Amalgamation combined with flotation is a processing method that has historically been applied to some gold ores containing gold particles of different sizes.
In this approach, amalgamation is used first to recover coarse, liberated gold, while flotation is subsequently applied to recover finer gold-bearing particles and gold associated with sulfide minerals. The two methods can complement each other when gold occurs in different particle-size fractions and cannot be efficiently recovered through a single process.
The potential benefit is improved recovery across different gold particle sizes. However, the effectiveness of this approach depends on gold liberation, mineral associations, and the suitability of the individual recovery stages.
Mercury amalgamation presents serious environmental and occupational health hazards because mercury is highly toxic and can contaminate air, water, soil, and the food chain. Consequently, this method should not be presented as a preferred modern processing option. Where applicable, gravity concentration, improved flotation, and other mercury-free recovery technologies should be evaluated as safer alternatives.
4. Loaded Stream Flotation + Cyanide Leaching of Tailings
Loaded stream flotation can be considered for improving the recovery of fine or difficult-to-float gold-bearing particles under suitable operating conditions. In this process, the interaction between carrier particles and valuable minerals can help improve particle collection and flotation performance.
In this approach, carrier minerals or particles assist the collection of fine gold-bearing minerals, improving their attachment to the flotation products. The resulting flotation concentrate can be recovered as a valuable product, while the tailings may undergo further treatment, including cyanide leaching, if testing confirms that economically recoverable gold remains.
Potential advantages of Loaded Stream Flotation include improved recovery of certain fine particles, reduced carrier consumption under optimized operating conditions, and changes in the composition of the flotation products that may benefit subsequent processing.
The overall performance depends on carrier selection, particle size, reagent dosage, pulp chemistry, and the mineralogical characteristics of the ore. In particular, copper-bearing minerals in the flotation tailings may increase cyanide consumption or complicate downstream leaching. Therefore, tailings cyanidation should be designed around the actual residual gold content and the presence of cyanide-consuming minerals.
This combined approach may be considered when conventional flotation alone does not achieve satisfactory gold recovery and the remaining gold in the tailings justifies additional treatment.
5. Flotation + Roasting of Concentrate + Cyanide Leaching of Roasted Residue
For certain refractory gold ores, particularly those containing sulfide minerals and elevated arsenic levels, direct cyanide leaching may produce unsatisfactory gold extraction because gold is encapsulated within sulfide minerals or otherwise inaccessible to the leaching solution.
Flotation is first used to concentrate the gold-bearing sulfide minerals. The concentrate is then subjected to oxidative roasting under controlled conditions to transform the sulfide matrix and, where appropriate, remove or capture arsenic and sulfur. This treatment can make previously inaccessible gold more available for subsequent leaching.
After roasting, the resulting calcine is treated by cyanide leaching to dissolve the liberated gold. The gold-bearing solution can then be processed through an appropriate recovery method.
The principal advantage of this process is that oxidative pretreatment can improve gold accessibility and enhance leaching performance for certain refractory concentrates. However, roasting requires substantial energy and careful control of process conditions. Arsenic-bearing concentrates also require appropriate off-gas treatment and residue management to prevent environmental contamination.
Accordingly, this method is most appropriate when mineralogical analysis and metallurgical testing demonstrate that refractory characteristics are limiting gold recovery and that the benefits of pretreatment justify the additional capital and operating costs.
Conclusion
The selection of a suitable gold flotation process depends on ore mineralogy, gold particle size, the degree of gold liberation, sulfide content, and the presence of refractory or cyanide-consuming minerals. Flotation can be combined with different downstream processes to improve gold recovery and adapt the treatment route to specific ore characteristics.
The five methods discussed in this article serve different processing purposes. Flotation followed by cyanide leaching is a common option for suitable gold-bearing sulfide ores, while thiourea leaching may be considered for selected concentrates. Amalgamation combined with flotation is a historical approach that should be assessed against safer, mercury-free alternatives. Loaded Stream Flotation with tailings leaching may help recover additional gold, and oxidative roasting followed by cyanidation can improve the treatment of certain refractory concentrates.
Before selecting a process, it is essential to conduct mineralogical analysis, flotation tests, and appropriate leaching or pretreatment tests. A well-designed flowsheet should balance gold recovery, reagent consumption, energy requirements, operating costs, worker safety, and environmental protection to achieve reliable and economically sustainable gold production.
