Many gold mining companies face inefficient crushing-grinding systems. Frequent equipment failures, high energy consumption, fluctuating recovery rates… These problems keep eating your profits. Let’s systematically analyze the root causes and provide practical solutions.
Rock gold mine crushing-grinding systems mainly have 7 process defects: severe operational fluctuations in crushing stages, uneven particle size distribution causing both under-crushing and over-grinding, poor equipment matching leading to accelerated wear, inconsistent mineral liberation affecting separation efficiency, improper grinding media selection, clay interference throughout the process, and over-reliance on manual control lacking adaptability. Optimization should follow the “more crushing-less grinding” principle, with precise size control, smart monitoring systems, and guidance from pilot test data.
These defects don’t exist in isolation. Let’s examine each problem’s essence—you’ll find they’re closely interrelated. Through systematic renovation, over a 30% efficiency improvement is achievable.
What Process Deficiencies Exist in The Crushing and Grinding Systems of Rock-gold Mines?
1. Severe Operational Fluctuations in Crushing Sections
Primary gold-bearing ores with dense, compact structures and high compressive strength present exceptional crushing challenges. Crushers operating continuously at full load frequently experience feed blockages and overload shutdowns. The imbalanced capacity ratio between primary and secondary crushing results in wide fluctuations in coarse crusher discharge size. This creates uneven pressure on fine crushing sections, leading to recurrent material shortages or pile-ups throughout the crushing circuit, making consistent throughput unattainable.
2. Polarized Product Size Distribution
Poor control over crusher discharge leads to two detrimental outcomes: insufficiently crushed large ore particles entering grinding circuits directly, which drastically increases mill loading and power consumption; simultaneous over-pulverization of brittle gold ores generating excessive fines. These micron-sized gold particles easily report to tailings while increasing reagent consumption in downstream processes, collectively depressing overall recovery rates.
3. Mismatched Crushing-Screening Equipment Configuration
The crushing circuit suffers from uncoordinated equipment capacity among primary, secondary, and tertiary crushers alongside screening units, creating bottleneck sections. Screening efficiency deteriorates rapidly due to deck wear and material blinding issues. Accelerated wear rates for crusher liners and wear parts drive up maintenance frequencies and operational costs substantially.
4. Inconsistent Mineral Liberation in Grinding Circuits
Grinding operations relying on manual control of media charge, slurry density, and retention time cannot adapt effectively when ore hardness or mineral dissemination changes. This results in incomplete liberation where gold remains locked in gangue, and overgrinding causing sliming losses. The unstable grinding baseline undermines subsequent separation performance.

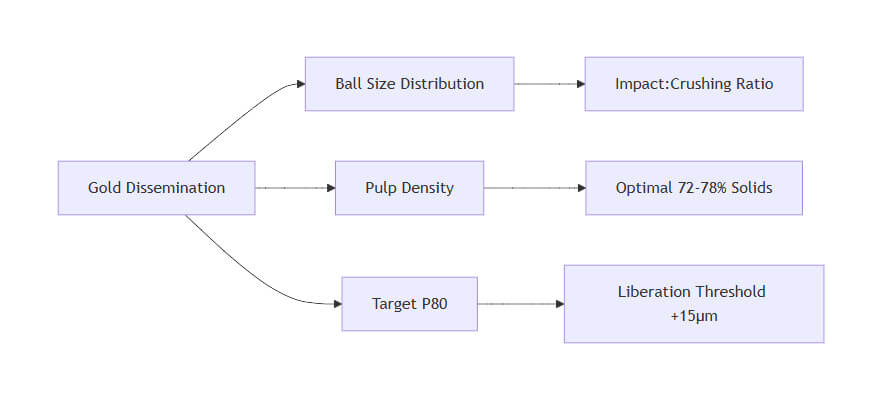

Adaptive operating parameters based on liberation studies:
5. Non-Optimized Grinding Media Scheme
The size distribution of steel balls and rods fails to match the ore’s mechanical properties, creating improper impact-crushing versus abrasion force ratios. Inefficient size reduction leaves coarse particles under-processed while overgrinding fines, maintaining excessively high specific energy consumption.
6. Clay-Rich Ore Disruption Throughout the Circuit
Many deposits contain high proportions of weathered surface rock and altered wall rock, with clay content exceeding design thresholds. These sticky fines coat ore surfaces, clogging crusher discharge openings and screening surfaces. The resulting screening failures and size control losses directly reduce system capacity.
7. Reactive Manual Control Lacking Adaptability
Most medium-small gold plants lack online monitoring and automatic control systems, relying instead on visual observations and operator experience for adjusting critical parameters like feed rate and grinding density. When ore characteristics change, the delayed system response causes wide daily fluctuations in both recovery rates and throughput.
How to Optimize Crushing-Grinding Systems?
Watching a grinding mill struggle with poorly prepared feed is like seeing an Olympic runner trying to sprint in mud – the potential exists, but the conditions prevent peak performance.
Effective optimization focuses on: 1) Implementing the “more crushing-less grinding” principle to shift workload, 2) Precise control of crushed product size bands, 3) Equipment selection matched to ore characteristics, 4) Optimized grinding operating parameters, 5) Pre-treatment for clay removal, and 6) Smart automation systems. Proper execution typically achieves 30-50% efficiency gains and 20-35% energy reduction.
1. Implement “More Crushing-Less Grinding” Principle to Reconfigure Process Flow
The core strategy focuses on reducing feed size to grinding mills while minimizing energy consumption. By maximizing the crushing circuit’s workload within mineral liberation requirements, we significantly decrease grinding mills’ inefficient work:
- Elimination of redundant crushing stages based on ore competency tests
- Shortened material transfer routes
- Typical throughput increase: 15-25% system capacity boost
- Energy savings: 20-35% reduction in specific grinding power consumption
2. Precise Particle Size Control Across Crushing Stages
Implement tiered size management aligned with grinding mill specifications:
| Crushing Stage | Equipment | Target Discharge (mm) | Control Method |
| Primary | Jaw Crusher | 10-32 | Hydraulic CSS adjustment |
| Secondary | Standard Cone | 20-85 | Chamber optimization |
| Tertiary | HPGR/Hydraulic Cone | 7-18 | Automatic setting regulation |
Key benefit: Eliminates grinding disturbance caused by mixed coarse/fine feeds
3. Graded Crushing Equipment Selection Tailored to Ore Properties
For the primary crushing of large, hard, raw gold-bearing rock, jaw crushers are prioritized due to their high compressive strength, wear resistance, and large feed openings, making them suitable for run-of-mine ore. Standard cone crushers are employed for the secondary crushing of medium-sized material, offering high throughput and operational stability. Hydraulic cone crushers are selected for the fine crushing stage to ensure precise particle size control. Impact crushers are utilized for gold ores with high clay content or those prone to weathering to mitigate material clogging issues.
4. Scientifically Customized Grinding Protocols to Ensure Full Mineral Liberation
Grinding media (steel balls) grading is adjusted based on ore dissemination characteristics, balancing coarse-particle impact breakage with fine-particle grinding. Slurry density is dynamically managed to maintain a stable grinding environment. The target grinding fineness is adjusted in real-time according to the gold dissemination size in the raw ore, preventing incomplete liberation (where gold remains encapsulated) while strictly controlling over-grinding and slime formation.
5. Add a Pre-Dewatering Process to Mitigate The Adverse Effects of High-Silt Ore
When the silt content of the raw ore exceeds 14%, install ore washing and pre-dewatering units at the beginning of the coarse crushing process to separate fine surface silt in advance. This prevents the silt layer from coating the ore and clogging screening and crushing equipment, stabilizes the particle size of the crushed product, and ensures continuous system operation.
6. Integrate Online Monitoring with a Fully Automated Intelligent Control System
Install online particle size analyzers, mill load monitors, and real-time slurry concentration detection devices to establish a centralized automated control platform for crushing and grinding. The system automatically adjusts feed rate, crusher discharge size, and grinding media replenishment based on real-time data, minimizing fluctuations in performance metrics caused by human error and ensuring stable, round-the-clock production.
What Role Does Mineral Processing Testing Play in Optimization?
Overlooking mineral processing tests before plant construction is like building a bridge without soil surveys—both invite structural failures. We learned this when a mine skipped liberation tests and later faced 21% gold losses in tailings.
Pre-production mineral testing provides critical data about: 1) ore hardness (Bond Work Index), 2) gold dissemination characteristics (MLA analysis), 3) clay content thresholds, and 4) optimal grinding fineness. These results directly inform crusher selection, circuit stages determination, and grinding regime setup—preventing 15-25% common design errors and reducing post-commissioning modification costs by up to 40%.
The Four Pillars of Effective Ore Testing
1. Crushing Characterization
- JK Drop Weight Test: Measures ore breakage energy requirements
- A*b Values: Predicts crusher throughput capacities (±5% accuracy)
- Point Load Strength: Identifies preferential breakage planes
2. Grinding Optimization
| Test Type | Key Parameter Measured | Impact on Mill Selection |
| Bond Ball | Work Index (kWh/t) | Determines mill power |
| SMC Test | Axb parameters | SAG mill sizing |
| SPI Test | Minutes/revolution | Pebble crusher needs |
3. Liberation Analysis
- Conducted using Mineral Liberation Analyzer (MLA)
- Maps gold particle size/distribution in ore matrix
- Identifies target grind sizes for >90% liberation
4. Process Simulation
- Bench-scale continuous crushing/grinding trials
- Validates theoretical circuit designs
- Predicts full-scale performance within 8-12% accuracy
Conclusion
Optimizing rock gold crushing-grinding systems requires addressing both technical defects and operational practices. From implementing “more crushing-less grinding” strategies to comprehensive ore testing and smart automation, each improvement compounds to deliver substantial benefits. The most successful operations combine rigorous technical analysis with practical, phased implementation – typically achieving 30-50% efficiency gains, 20-35% energy reduction, and significantly improved equipment longevity.
